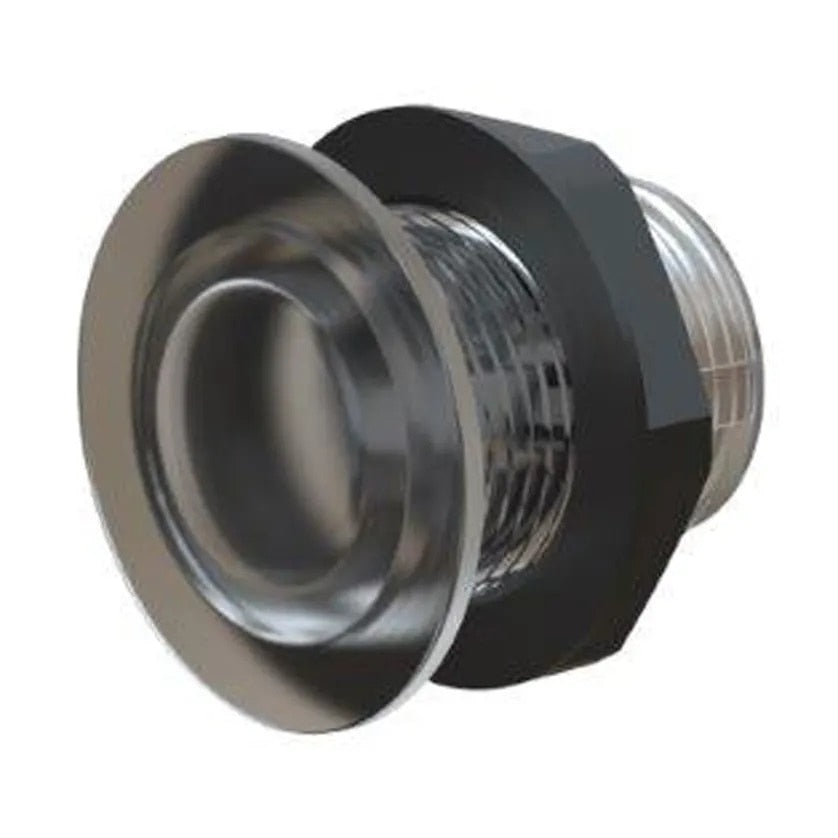

Lumishore Eclipse CL30 RGB Courtesy Light 010-04544-00

Lumishore Eclipse CL30 RGB Courtesy Light 12/24vDC

The Lumishore Eclipse CL30 RGB Courtesy Light adds practical, colorful illumination to boat walkways, stairwells, helm stations, and other onboard design elements. Its RGB lighting uses red, blue, and green LEDs to provide versatile color options for marine interior and exterior applications.

Designed for marine use, this courtesy light is fully water-sealed and IP68 rated. Its compact, discreet profile supports flush mounting in a variety of onboard locations, while the bulkhead panel-mount design uses marine adhesive for installation.

The Eclipse CL30 features a simple 2-wire electrical connection and operates on a 12V DC supply range from 10 to 15 volts. Maximum current draw is 0.1 amp. Lighting control is available through the ECLIPSE Command Center, and the light is backed by a 3-year warranty.

With a 33mm bezel and a 25.4mm fitting hole requirement, the Lumishore Eclipse CL30 provides a low-profile lighting solution where compact installation and RGB illumination are desired.

Features:

• RGB Illumination: Uses red, blue, and green LEDs for colorful courtesy lighting.
• Marine Applications: Suitable for boat walkways, stairwells, helm stations, and other design elements.
• Water-Sealed Construction: IP68-rated design supports marine installation.
• Simple Wiring: Uses a straightforward 2-wire electrical installation.
• 12V DC Operation: Designed for a 10–15V DC supply range.
• Low Current Draw: Maximum current draw is 0.1 amp.
• ECLIPSE Command Center Control: Compatible with the stated Lumishore control option.
• Flush-Mount Design: Compact light mounts through a bulkhead panel using marine adhesive.
• Compact Bezel: Features a 33mm front bezel for discreet installation.
• Warranty: Includes a 3-year warranty.
