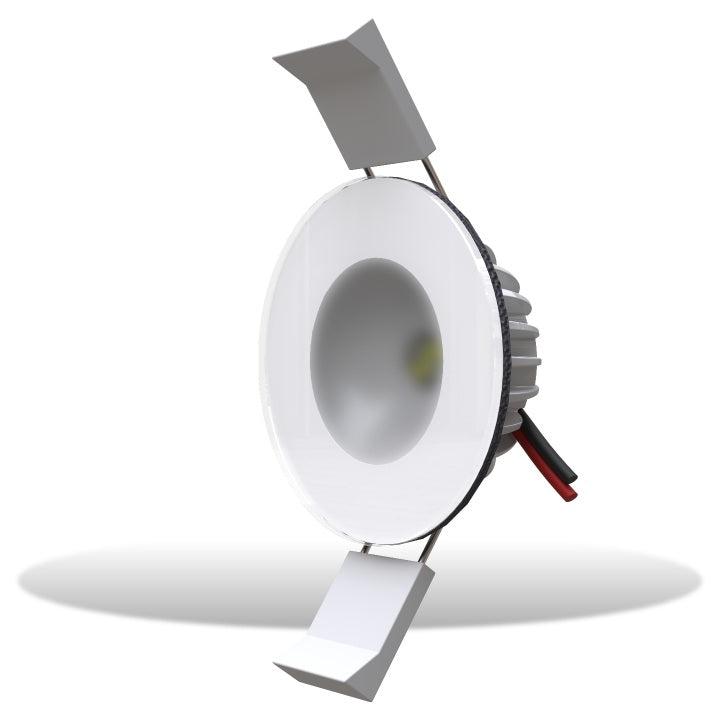

Lumishore Eclipse DL55 White Down Light 12/24vDC White Hosuing

Lumishore Eclipse DL55 White Down Light 12/24vDC White Hosuing

Lumishore’s ECLIPSE Downlights provide excellent illumination to enhance a variety of indoor or outdoor overhead spaces onboard.

Constructed of a durable aluminium body with a glass front, completely water sealed and IP67 rated. Simple to install with a 2 wire hookup and a shallow depth profile of only 21mm (0.83").

Available in single color white or blue, dual color white and blue or White + RGB. Choose from a black or white finish to complement your boats aesthetic.

Color
White (5000 K)

LED Type
2 x 3W White LEDs

Customer Control Options
On/Off Switch or ECLIPSE Command Center

Electrical Installation
Simple 2 Wire Installation

Supply Voltage Range
12V DC Only (10 - 15V DC)

Max Current Draw (12/24V DC)
0.4A

Ingress Protection
IP67

Front Diamater (Bezel)
64.0mm (2.519")

Profile
3.5mm (0.137")

Hole Diameter for fitting
50.8mm (2.0")

Mechanical Installation
Stainless Steel Spring Clips

Warranty
3 Years
