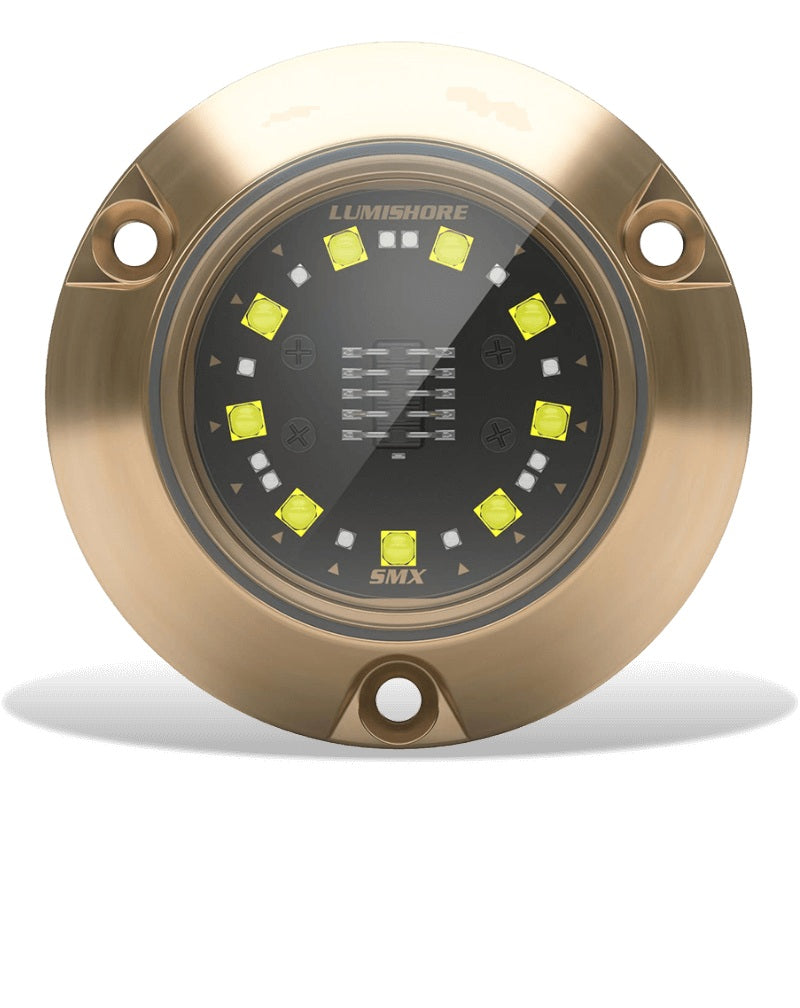

Lumishore ECLIPSE SMX24 Surface Mount Blue/White LED

Lumishore ECLIPSE SMX24 Surface Mount Blue/White LED

Model: 600-0533 / 010-04504-00

Lumishore's compact SMX24 features 3,100 fixture lumens in a wide 90° beam. 2-in-1 (blue and white) in a single surface mount fixture - each color runs at full power.

Integrated driver and simple 2-wire connections make the installation of this light easier than ever.

Control the SMX24 by a standard on/off switch or the ECLIPSE Command Center.

Suitable for stepped hulls, transoms, and hull side installations.

Specifications

AVAILABLE LED COLORS
DUAL COLOR (BLUE & WHITE)

LUMENS
6,975

VERIFIED FIXTURE LUMENS (WHITE)
3,100

NUMBER AND TYPE OF LED
White - 9 5W / Blue -12x3W

LED POWER - HICOB ARRAY
YES

TYPICAL LED LIFE
50,000+ HOURS

BEAM ANGLE (DEGREES)
90°

DRIVER
MULTI-CHANNEL INTERNAL DRIVER

SUPPLY VOLTAGE
12 V DC ONLY

MAX CURRENT DRAW
2.5A

HOUSING TYPE
MARINE BRONZE BODY/ GLASS LENS

USER CONTROL OPTIONS
STANDARD ON/OFF SWITCH OR ECLIPSE COMMAND CENTER

COLOR FADE CYCLE
YES

FIXED STROBES
YES
