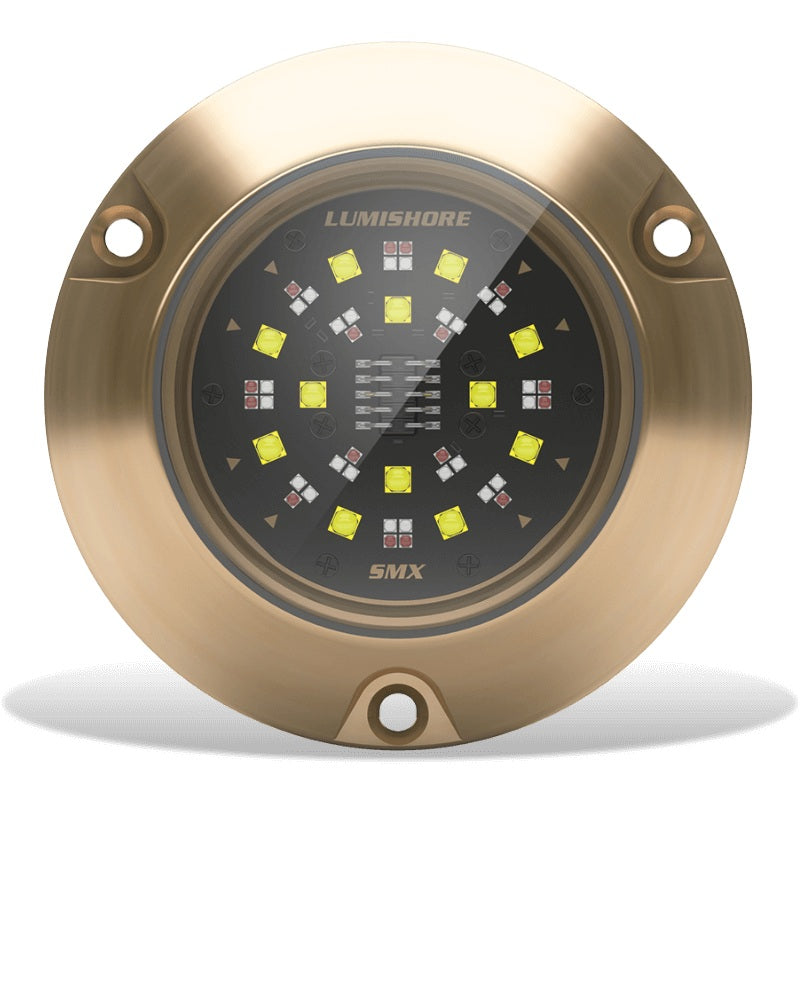

Lumishore EOS SMX154 Surface Mount RGBW LED

Lumishore EOS SMX154 Surface Mount RGBW LED

Model: SMX154 / 010-04508-00

The SMX154 offers boat owners unprecedented full color control of their underwater lighting system, delivering 7,000 verified fixture lumens and a wide 90° beam angle.

Control your SMX154 underwater lights directly from your compatible MFD and/or Lumishore Display.

Lumishore's unique light discovery and light auto-install function simplifies the system setup and reduces installation time.

Suitable for stepped hulls, transoms, and side mounting.

Specifications

AVAILABLE LED COLORS
FULL EOS COLOR CHANGE (RGBW)

LUMENS
15,750

VERIFIED FIXTURE LUMENS (WHITE)
7,000

NUMBER AND TYPE OF LEDS
White—12 10W / Green—12 3W / Blue—12 3W / Red—16 3W

LED POWER - HICOB ARRAY
YES

TYPICAL LED LIFE
50,000+ HOURS

BEAM ANGLE (DEGREES)
90°

DRIVER
Multi-Channel Internal Driver

SUPPLY VOLTAGE
12/24 V DC

MAX CURRENT DRAW
4.0A/2.0A

HOUSING TYPE
MARINE GRADE BRONZE / GLASS LENS

USER CONTROL OPTIONS
From your MFD and/or optional Lumishore Display

Warranty
3 Years

What's in the Box:

• One (1) EOS SMX154 Light with Built-in Driver
