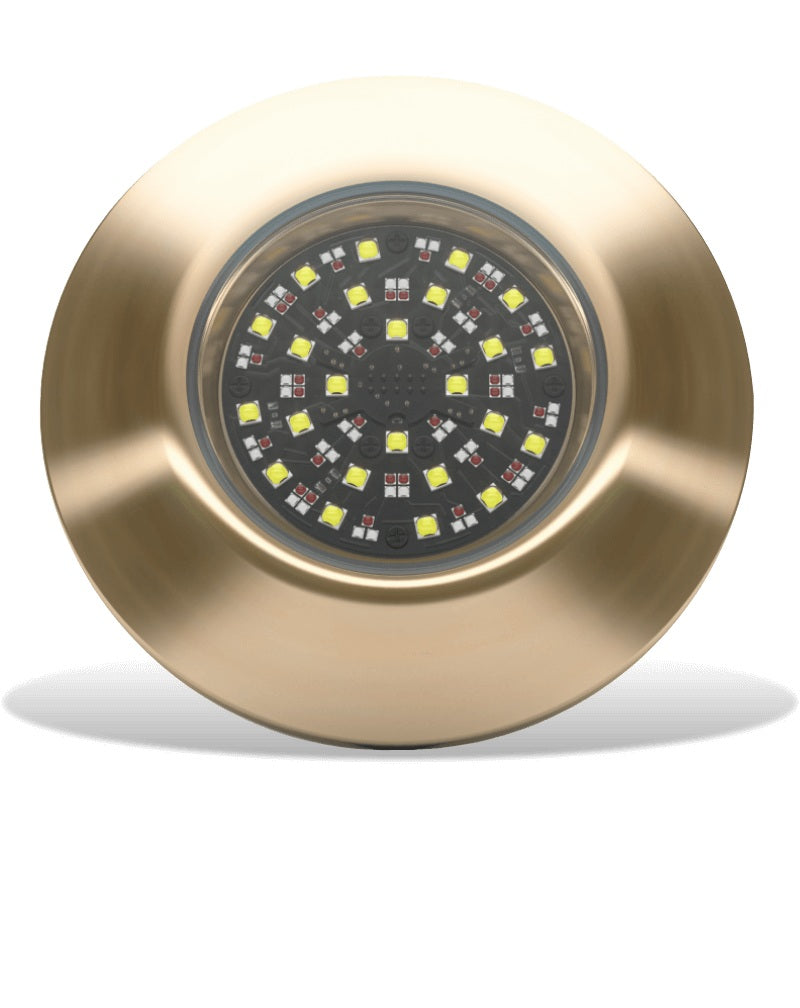

Lumishore EOS THX804 Thru-Hull Mount and Driver RGBW LED

Lumishore EOS THX804 Thru-Hull Mount and Driver RGBW LED

Model: EOS THX804 / 010-04520-00

The fully controllable color change THX804 underwater light delivers the greatest range of colors, 12,000 verified fixture lumens and an ultra-wide 110° beam angle for the ultimate halo-effect.

Control colors, modes & special effects directly from your MFD and/or the optional Lumishore Display.

Lumishore's THX models feature a standard 1" fitting and an external driver. Flush-fit in design, with extremely low profiles.

Suitable for transom, side and bottom mounting.

Specifications

AVAILABLE LED COLORS
FULL EOS COLOR CHANGE (RGBW)

LUMENS
27,000

VERIFIED FIXTURE LUMENS (WHITE)
12,000

NUMBER AND TYPE OF LED
White—24 10W / Green—24 3W / Blue—24 3W / Red—32 3W

LED POWER - HICOB ARRAY
YES

TYPICAL LED LIFE
50,000+ HOURS

BEAM ANGLE (DEGREES)
110°

DRIVER
Multi-Channel External Driver

SUPPLY VOLTAGE
12/24 V DC

MAX CURRENT DRAW
8.8A/4.4A

HOUSING TYPE
MARINE GRADE ALUMINUM BRONZE

USER CONTROL OPTIONS
From your MFD and/or optional Lumishore Display

LIGHTS SYNCHRONIZED
YES

COLOR CYCLE w/SPEED ADJUST
YES

COLOR SWEEP w/SPEED ADJUST
YES

CUSTOMIZABLE FAVORITES
YES

FIXED & RANDOM STROBES
YES

PROGRAMMABLE SCENES
YES

WI-FI CONTROL (APP)
YES

SOUND-TO-LIGHT
YES

BRIGHTNESS ADJUST
YES

AUTO LIGHT DISCOVERY & SETUP
YES

What's in the Box:

• One (1) EOS THX804 Light


• One (1) External Driver


• One (1) 1M DMX cable (60-0403)
