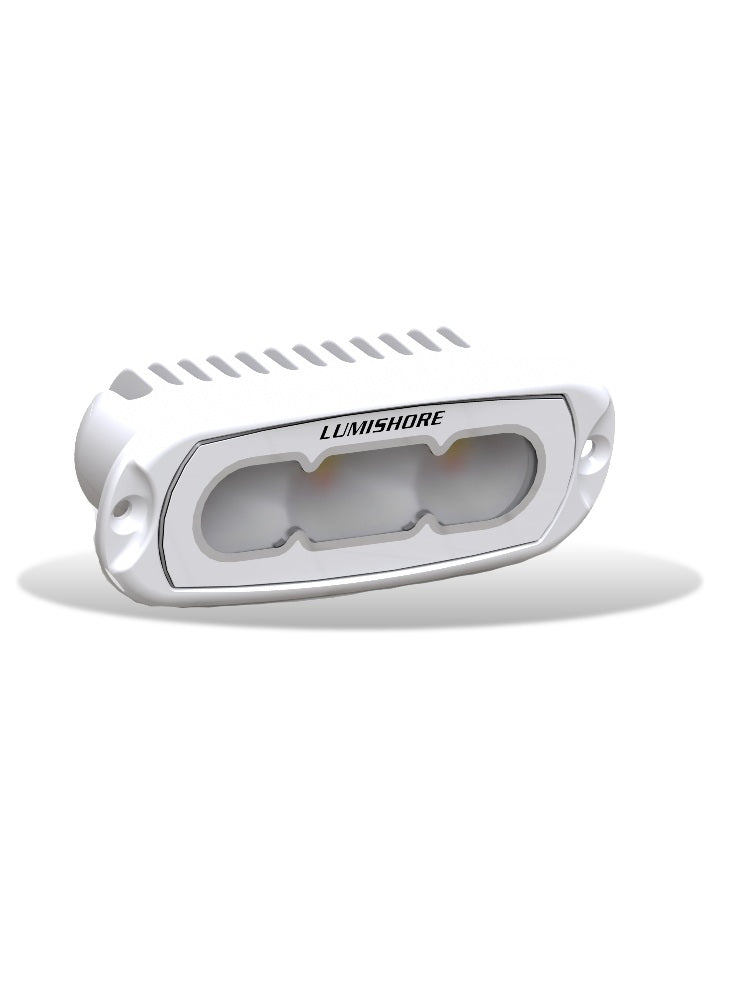

Lumishore LUX 4in Flood LED Light Flush Mount White Finish

Lumishore LUX 4in Flood LED Light Flush Mount White Finish

Model: 60-0520 / 010-04500-00

Lumishore’s 4" Flush Fit Flood Lights deliver powerful CRGBW illumination in a sleek, low-profile unit. Designed for decks, cockpits, and exterior mounting points like T-tops, arches, and transoms, they offer a wide oval beam (70°—90°) and smooth, blended colors — including both warm and cold white, plus red, green, and blue.

Built for harsh marine environments with an IP68 rating and marine-grade aluminum housing. Control via switch, MFD, or Lumishore Display — with dimming as standard.

Specifications

Available colors
White Color Temperature Tunable (2700K to 6500K) and Full Spectrum RGB

Lumens
2,360

Fixture Lumens
1,050

Number & Type Of LED
Warm White, Cold White, Red, Green and Blue (5 Channel)

LED Power HICOB Array
Yes

Typical LED Life
50,000+ Hours

Warranty
3 Years

Electrical Installation
Simple 3 Wire Connection (see installation manual)

Housing Type
Powder Coated Aluminium Body with Frosted Lens

Driver
Multi-Channel Internal

Supply Voltage Range
10.5—31 V DC

Max Current Draw 12/24V
1.7 A/0.9 A

Beam Angle
70° - 90° Oval Beam

Water Ingress Protection Rating
IP68
