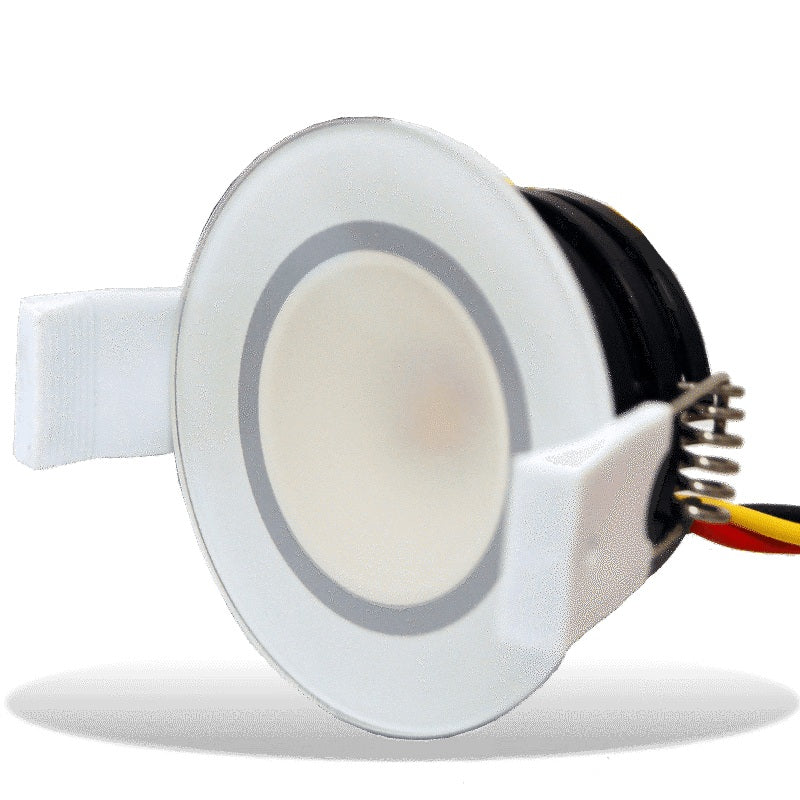

Lumishore LUX DL50 Downlight Full Spectrum CRGBW 12/24vDC 5 Watt White Bezel

Lumishore LUX DL50 Downlight: Advanced Full Spectrum CRGBW Lighting Solution

Lumishore LUX DL50 Downlight Full Spectrum CRGBW 12/24vDC 5 Watt White Bezel

Model: DL50

LUX Downlights are the perfect solution for interior or exterior overhead lighting needs. The DL50 delivers incredible output and a profile that is among the slimmest.

Full spectrum CRGBW (cold white, red, green, blue, warm white) and white color temperature tuneable (from 2700k to 6500k) in a single downlight unit.

Completely sealed and IP68 rated, it is perfectly suited for a variety of indoor or outdoor overhead lighting needs.

Choose between a white or black bezel and a hard anodised aluminium body to complement the style of your boat.

LUX Downlights are easily controllable by a momentary switch, with the option to upgrade to full integration with your compatible MFD and/or Lumishore Display.

Dimmable as standard and powered by the LUX Light Control Module.

Specifications

Available colors
Full Spectrum CRGBW and white color temperature tuneable from 2700K to 6500K

Ingress Protection
IP68

Supply Voltage Range
10.5 — 31V DC

Max Current Draw
0.5A / 0.25A

Front diameter (Bezel)
64mm

Hole diameter for fitting
50mm

Mechanical installation
Spring clip

Number of Downlights per control module
16

Control options
Momentary switch with option to upgrade to full MFD and optional Lumishore Display

Warranty
3 Years

What's in the Box:

• One (1) LUX Downlight DL50

Innovative Lighting with Lumishore Technology

The Lumishore LUX DL50 Downlight offers a groundbreaking lighting experience, combining full spectrum CRGBW LEDs to deliver rich, vibrant colors and superior white light. Designed specifically for 12/24vDC systems, this 5-watt fixture provides efficient, high-performance illumination ideal for marine and architectural applications. Its white bezel adds an elegant, unobtrusive appearance that fits seamlessly into any setting while ensuring long-lasting durability against harsh environments. Lumishore’s attention to detail ensures users enjoy optimal brightness and superior color rendering.

Energy Efficient and Versatile Power Operation

One of the standout features of the Lumishore LUX DL50 Downlight is its compatibility with both 12v and 24v DC power supplies, allowing flexible installation across various boat and vehicle types. The 5-watt power consumption strikes an excellent balance between energy efficiency and brightness output, reducing strain on onboard power systems without sacrificing lighting quality. This versatility, combined with the full spectrum CRGBW capability, permits dynamic lighting scenes tailored to unique preferences, making it an ideal choice for those seeking both performance and control.

Durable Design with Easy Installation and Control

The Lumishore LUX DL50 Downlight features a robust construction with a powder-coated white bezel that resists corrosion and wear in demanding marine conditions. Its compact size simplifies installation into confined or aesthetic spaces while maintaining excellent heat dissipation. Users benefit from intuitive control options compatible with advanced lighting controllers, enabling effortless customization of color and brightness. This durability paired with adaptive control makes the LUX DL50 a reliable and user-friendly lighting solution, ensuring long-term satisfaction for any lighting project.
