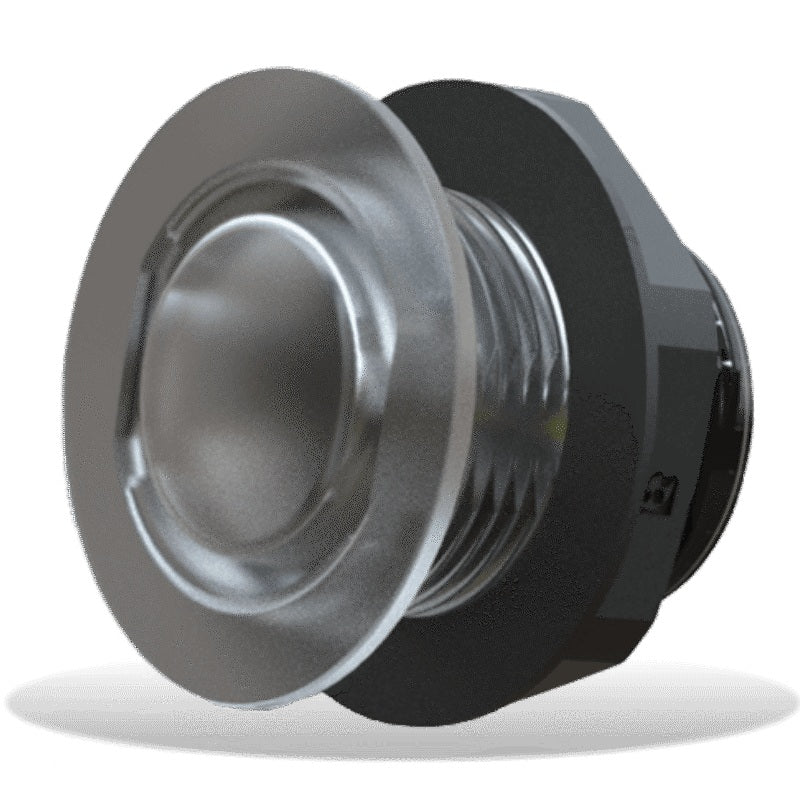

Lumishore LUX LW25 Livewell Light, CRGBW 12/24vDC 0.5 Watt Chrome Bezel

Lumishore LUX LW25 Livewell Light, CRGBW 12/24vDC 0.5 Watt Chrome Bezel

LUX Livewell Lights are built for the harsh environment of livewells, fish boxes and splash wells. Suitable for any wet place onboard, or submerged underwater, where an internal screw thread/locking nut is desirable.

Full spectrum CRGBW (cold white, red, green, blue, warm white ) and white color temperature tuneable (from 2700k to 6500k) in one livewell light unit.

Easily controllable by a momentary switch, with the option to upgrade to full integration with your compatible MFD and/or Lumishore Display.

The LW25 is completely sealed and IP68 rated and can be installed with or without stainless steel bezel. Dimmable as standard and powered by the LUX Light Control Module.

Available colors
Full Spectrum CRGBW and white color temperature tuneable from 2700K to 6500K

Ingress Protection
IP68

Supply Voltage Range
10.5 - 31 V DC

Max Current Draw
0.1A / 0.05A

Front diameter (Bezel)
50mm

Profile (Bezel)
5.4mm

Front diameter (Without Bezel)
36mm

Profile (Without Bezel)
3.5mm

Depth
30.0mm

Hole diameter for fitting
25mm

Mechanical installation
Bulkhead Panel Mount (with marine adhesive)

Number of Livewell Lights per control module
16

Control options
Momentary switch or upgrade to full MFD and optional Lumishore Display

Warrnty
3 Years

What's in the Box:

• One (1) LUX Livewell Light LW25
