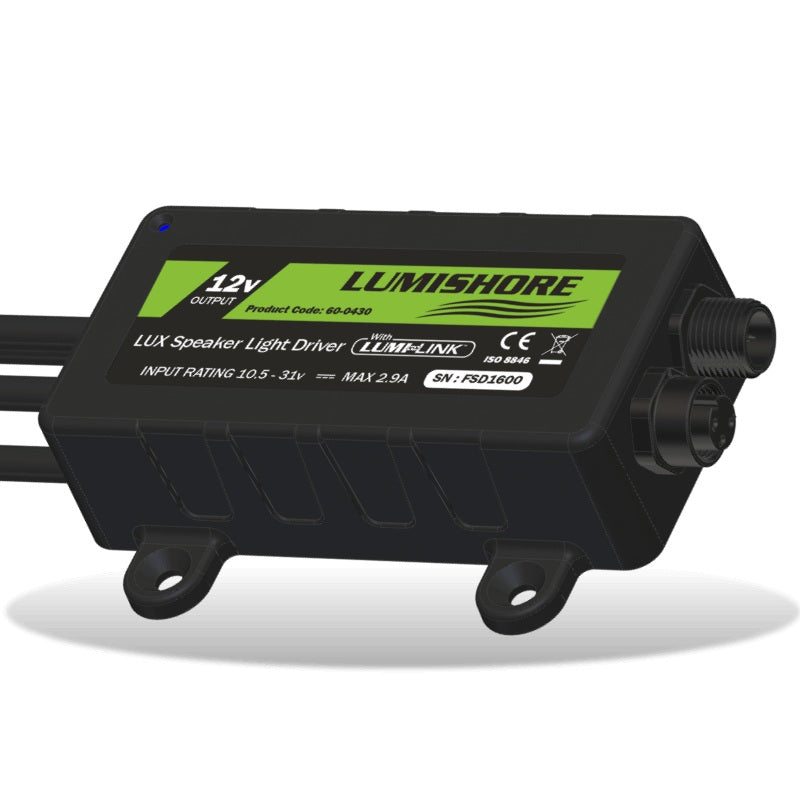

Lumishore LUX Speaker Light Driver

Lumishore LUX Speaker Light Driver

Plug in your audio system via the EOS-LUX Command Center’s mini jack and enjoy Lumishore’s unique sound-to-light experience.

By analyzing music signals and splitting them into 3 frequency bands, the Speaker Light Driver allows you to select colors for each frequency - a dynamic lighting experience, from one song to the next! Pulse your Lumishore lights to the frequency of the music, in any color, cycle, or oscillating pattern.

For use with CRGBW (cold white, red, green, blue, warm white) and RGB (red, green, blue) LED Marine Speakers.

Easily controllable by a momentary switch, with the option to upgrade to full integration with your compatible MFD and/or Lumishore Display.

Controls up to 16 speakers and is finished with powder coated marine grade aluminium.

For Use
With CRGBW (Cold white, Red, Green, Blue, Warm white) and RGB (Red, Green, Blue) LED Marine Speakers

Ingress Protection
IP68

Supply Voltage Range
10.5 - 31 V DC

Max Current Draw
5.6A / 2.8A

Surge Protection
Yes

ATRB (Automatic Thermal Roll Back)
Yes

Low Voltage Protection
Yes

Reverse Polarity Protection
Yes

In Rush Current Protection
Yes

Max Cable Length to First Speaker
5m (16.8’)

Number of Speakers per Driver
16

Size
Not Including Cable Glands or cables (LxWxH) - 113mm x 79mm x 27mm

Case Construction
Powder Coated Marine Grade Aluminium

Control options
Momentary switch or upgrade to full MFD and optional Display
