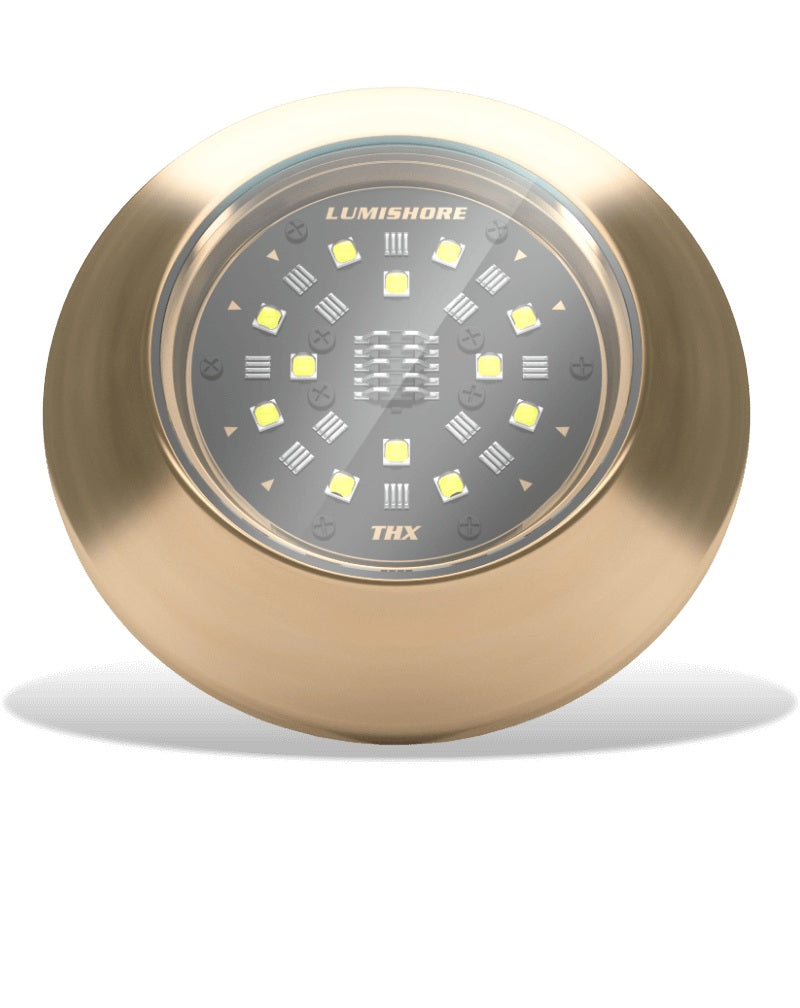

Lumishore ORA THX204 Thru-Hull Mount Blue LED

Lumishore ORA THX204 Thru-Hull Mount Blue LED

Model: THX204 / 010-04514-00

Lumishore's ultra-slim thru-hull THX204 has a small hull cut out requirement of only 5/8" (16.5mm). Blue LED

The THX204 features 6,100 fixture lumens and an ultra-wide 110°beam angle, allowing the light to saturate deep into the water.

With a simple 2-wire installation and no external drivers, it's one of the easiest thru-hull lights to install and is suitable for transom, side hull or bottom installations.

Control the THX204 by a standard on/off switch.

Specifications

COLOR
BLUE

LUMENS
13,725

VERIFIED FIXTURE LUMENS (WHITE)
6,100

NUMBER AND TYPE OF LED
Blue — 24 x 3W High Power LED

LED POWER - HICOB ARRAY
YES

TYPICAL LED LIFE
50,000+ HOURS

BEAM ANGLE (DEGREES)
110°

DRIVER
MULTI-CHANNEL INTERNAL DRIVER

SUPPLY VOLTAGE
12/24 V DC

MAX CURRENT DRAW
4.9A/2.4A

HOUSING TYPE
MARINE GRADE ALUMINUM BRONZE

USER CONTROL OPTIONS
ON/OFF SWITCH

Warranty
3 Years

What's in the Box:

• One (1) ORA THX204 Light with Built-in Driver
