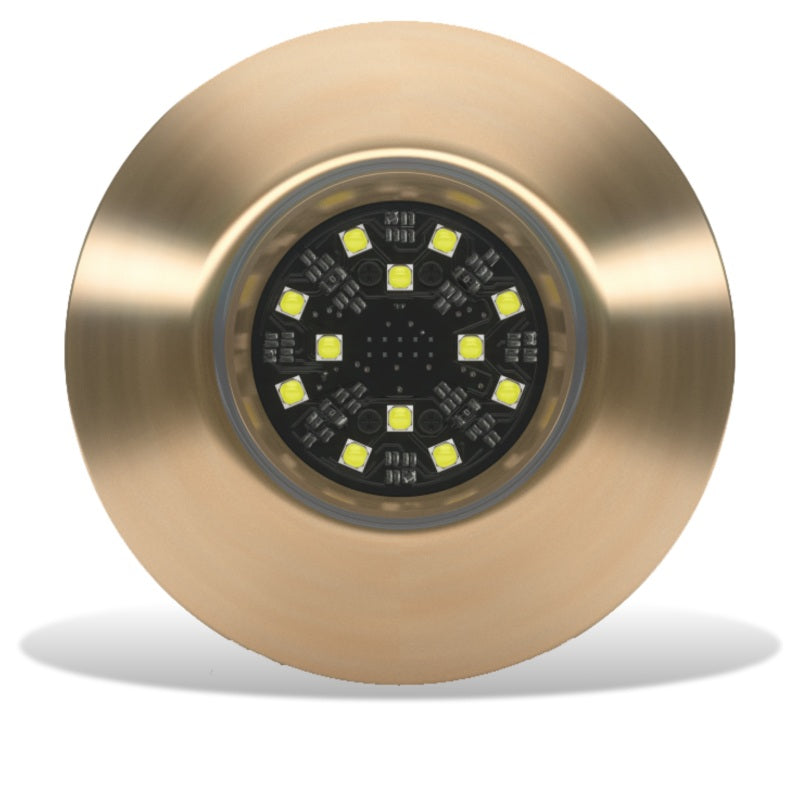

Lumishore ORA TIX404 Thru-Hull Mount Underwater White LED Bronze Housing 12/24vDC

Lumishore ORA TIX404 Thru-Hull Mount Underwater White LED Bronze Housing 12/24vDC

The TIX404 packs a powerful 5,100 fixture lumens into a compact, low profile interchangeable thru-hull, with an ultra-wide 110° beam angle.

Available in single color white.

TIX models feature an internal LED array and integrated driver for the ability to service from inside the hull and to simplify installation.

Easily controlled by a standard on/off switch.

Suitable for transom, side and bottom mounting.

AVAILABLE LED COLORS
SINGLE COLOR (WHITE)

LUMENS
11,475

VERIFIED FIXTURE LUMENS (WHITE)
5,100

NUMBER OF HIGH POWER LEDS
WHITE - 12 x 10W

LED POWER - HICOB ARRAY
YES

TYPICAL LED LIFE
50,000+ HOURS

BEAM ANGLE (DEGREES)
110°

DRIVER
INTERNAL DRIVER

SUPPLY VOLTAGE
10.5-31 V DC

MAX CURRENT DRAW
4.0 A / 2.0 A

HOUSING TYPE
MARINE BRONZE BODY, BOROSILICATE GLASS LENS

USER CONTROL OPTIONS
ON/OFF SWITCH

WARRANTY
3 YEARS

What's in the Box:

• One (1) ORA TIX404 Light with Built-in Driver
