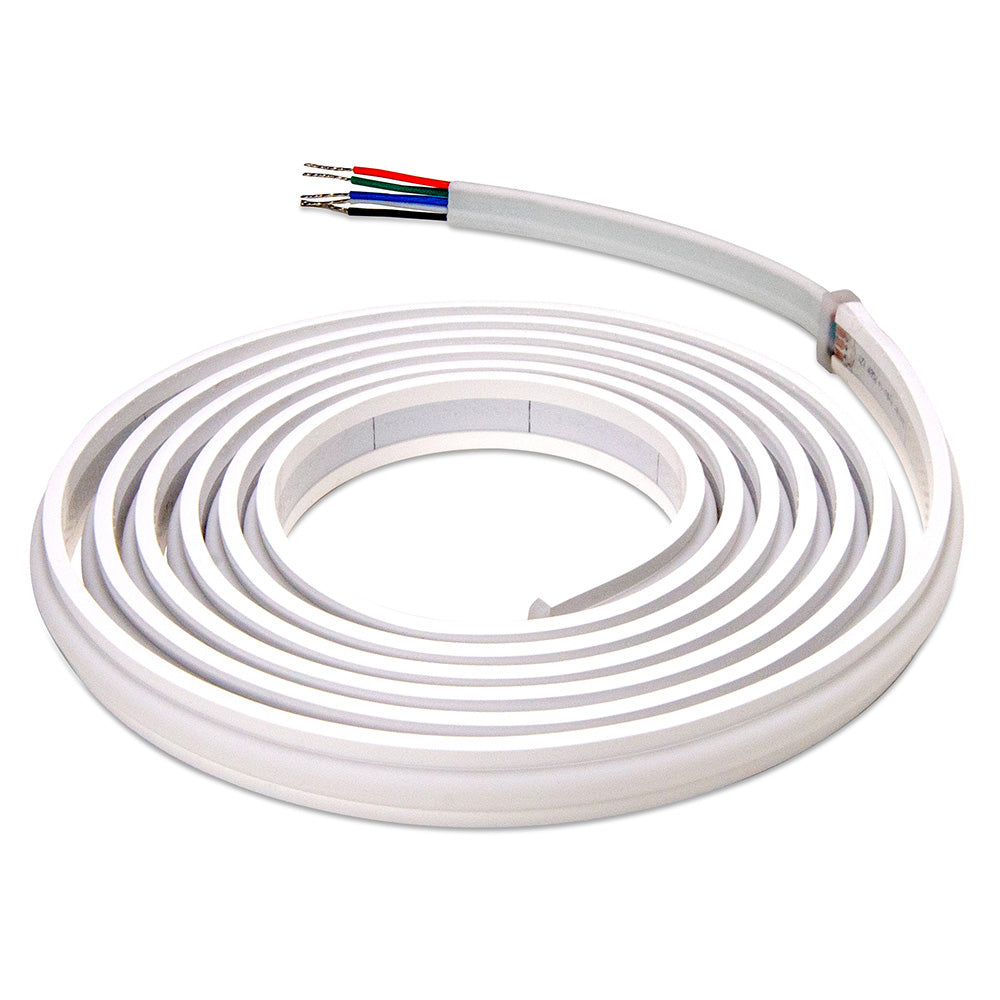

Lumitec Hydra 1406 Series RGBW Linear Lighting, 12V, H10062

Hydra Series Linear Lighting 12V - 14mm Width - RGBW - 39.2 Long

Lumitec has re-imagined linear lighting with unmatched versatility and customization. With ultra-high LED density, the Hydra Series provides flawless light uniformity - no dots, no gaps, just smooth, continuous brilliance in some of the industrys thinnest profiles.

Engineered for premium applications, Lumitecs linear lights shine where clean, direct-view lighting is essential. With up to 900 LEDs per meter, they deliver consistent, even lighting with multiple mounting options and the flexibility to adapt to any installation.

Choose from single-color white (3000K or 5000K), or blue, or elevate your design with RGB or RGBW outputs using 4- or 5-wire control (C4 module required). Available in 12V or 24V up to approximately 16.6 feet in increments of every 20 inches.

Hydra Series

The Hydra Series will go where Moray cannot. Ideal for direct view and more challenging application locations. Hydra is not PLI or TTP compatible and requires a Pico C4 module for integration into the Poco system.

Specifications:

• Style: 14mm
• Length: 39.2
• Color Output: RGBW
• Voltage: 12V
• CRI (K): 5000
• Emitter: Top
• Connection: Front

Lumitec Hydra 1406 Series RGBW Linear Lighting delivers smooth, consistent illumination for premium marine, architectural, and specialty installations. Designed with an ultra-high LED density, the Hydra Series produces uniform light without visible dots or gaps, making it well suited for direct-view applications where a clean and polished appearance is essential. This 12V RGBW model provides flexible color output for both functional lighting and customizable accent effects.

Engineered for installation locations where other Lumitec linear lighting products may not be suitable, the Hydra Series combines a slim profile with versatile mounting and connection options. The top-emitting design directs light outward for effective, even coverage, while the front connection helps simplify integration into compatible installations. The RGBW configuration provides independent red, green, blue, and white output for a broad range of lighting scenes and color temperatures.

The Lumitec Hydra H10062 requires 4- or 5-wire control through a C4 module and can be integrated into the Poco system using a Pico C4 module. It is not compatible with PLI or TTP systems. Built for applications that demand dependable performance and refined light quality, this linear lighting solution is an effective choice for cabins, entertainment areas, architectural features, consoles, and other direct-view locations. The 5000K white output adds a crisp, clean component to the RGBW spectrum, while the 12V operating voltage supports common low-voltage electrical systems.

Features:

• Series: Lumitec Hydra 1406 Series linear lighting

• Part Number: H10062

• Color Output: RGBW for customizable multicolor and white illumination

• Voltage: 12V operation for low-voltage lighting systems

• Light Quality: Ultra-high LED density provides smooth, continuous illumination

• Emitter: Top-emitting design for direct-view applications

• Connection: Front connection for streamlined installation

• Control: Requires a C4 module for 4- or 5-wire RGBW control

• System Compatibility: Integrates with the Poco system through a Pico C4 module

• System Limitations: Not compatible with PLI or TTP systems

• White Output: 5000K color temperature for crisp, clean illumination
