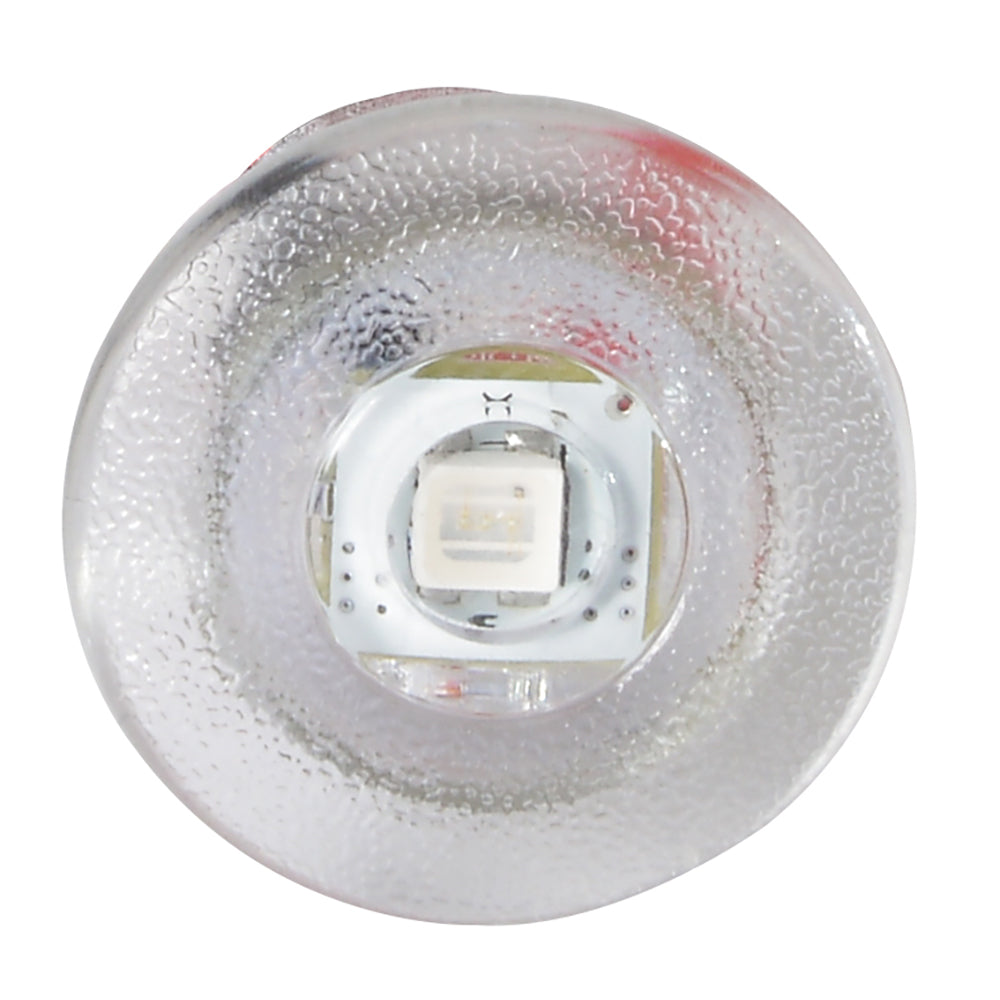

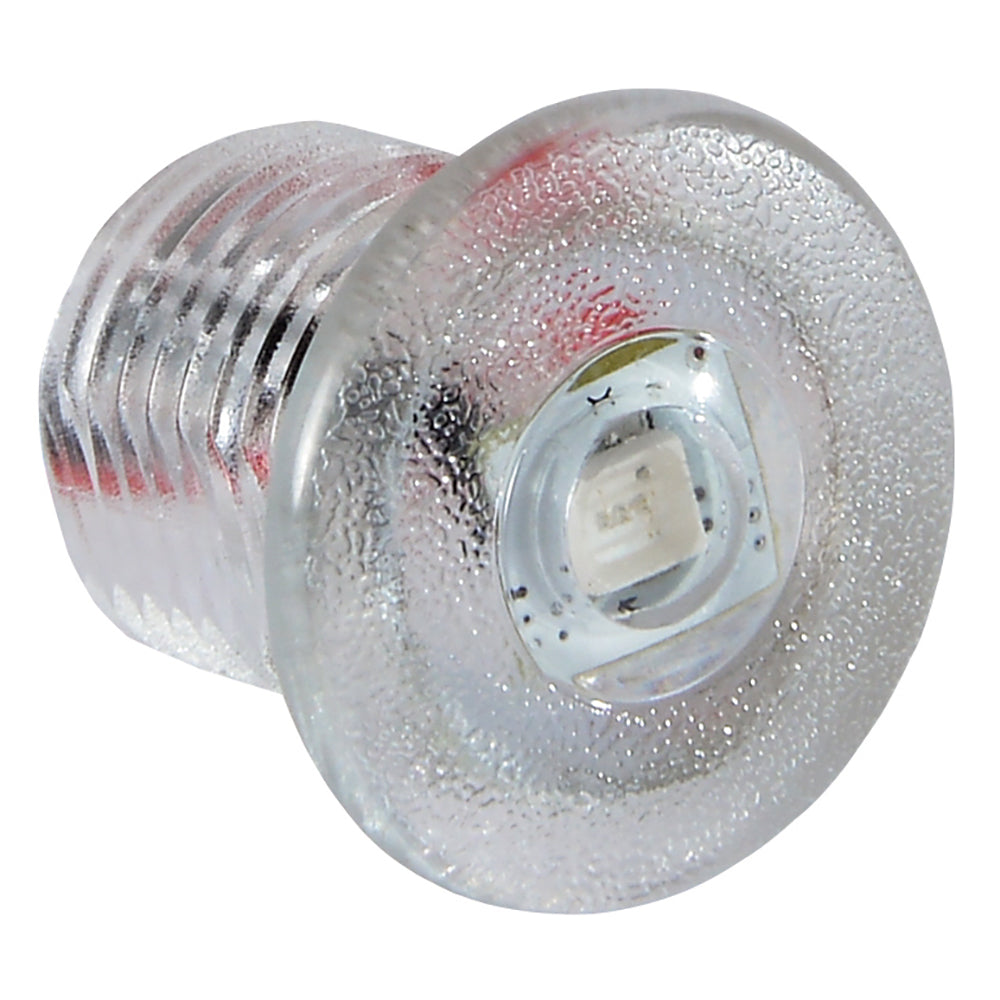

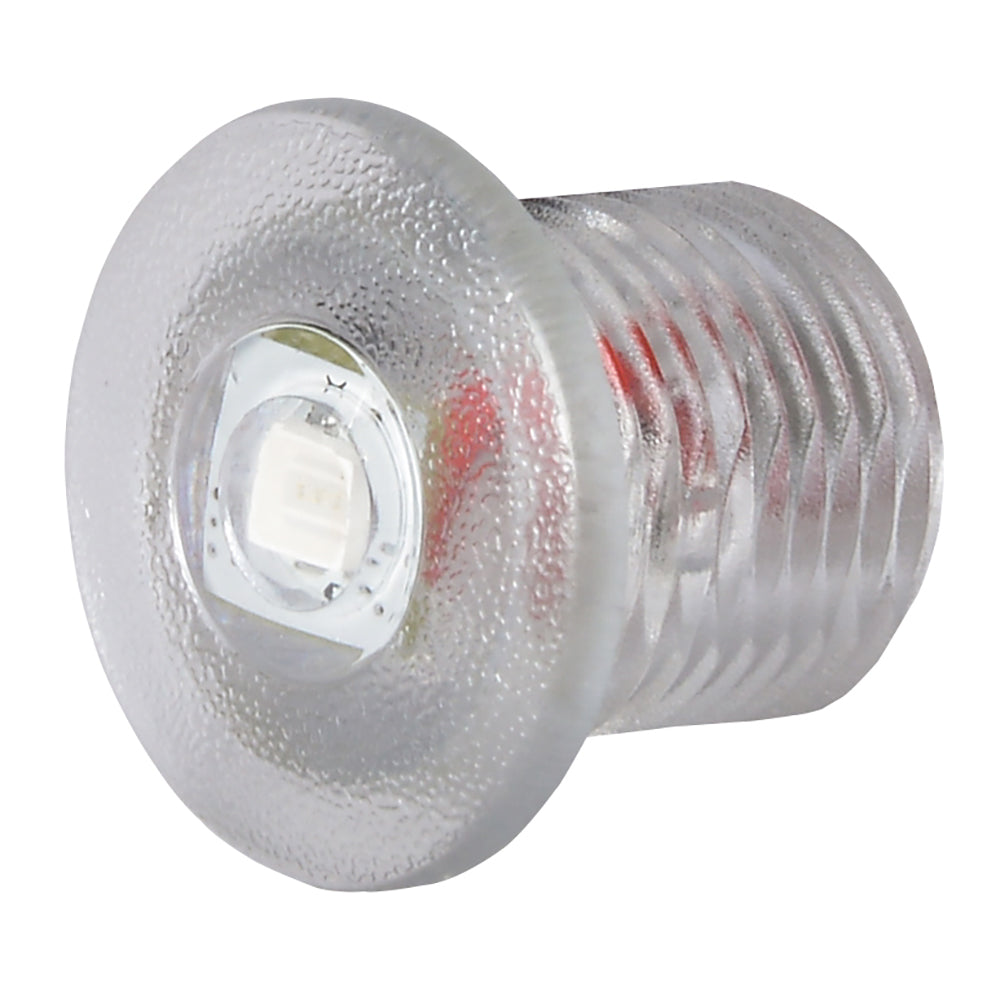

Lumitec Newt Livewell and Courtesy Light - Red Dimming

Newt - Livewell Courtesy Light - Red Dimming

Wet or dry, it doesn't matter. Lumitec's Newt line was originally designed as a livewell light. But when our customers saw its small size, amazing output, and ease of installation it found use under cabinets, in storage lockers, lighting toe kicks, and even overhead. Choose white, red, or blue light. Completely sealed and IP67 compliant. Silicone gasket included.

Specifications:

• Voltage: 10 - 16V DC
• 12V DC Amps: 45mA
• 24V DC Amps: N/A
• Correlated Color Temperature: 5000
• Color Rendering Index: 70+
• Rated Watts: 2
• Lumens (White): 19
• Operating Temp (F): -31 to + 131 F
• Operating Temp (C): -35 to +55 C

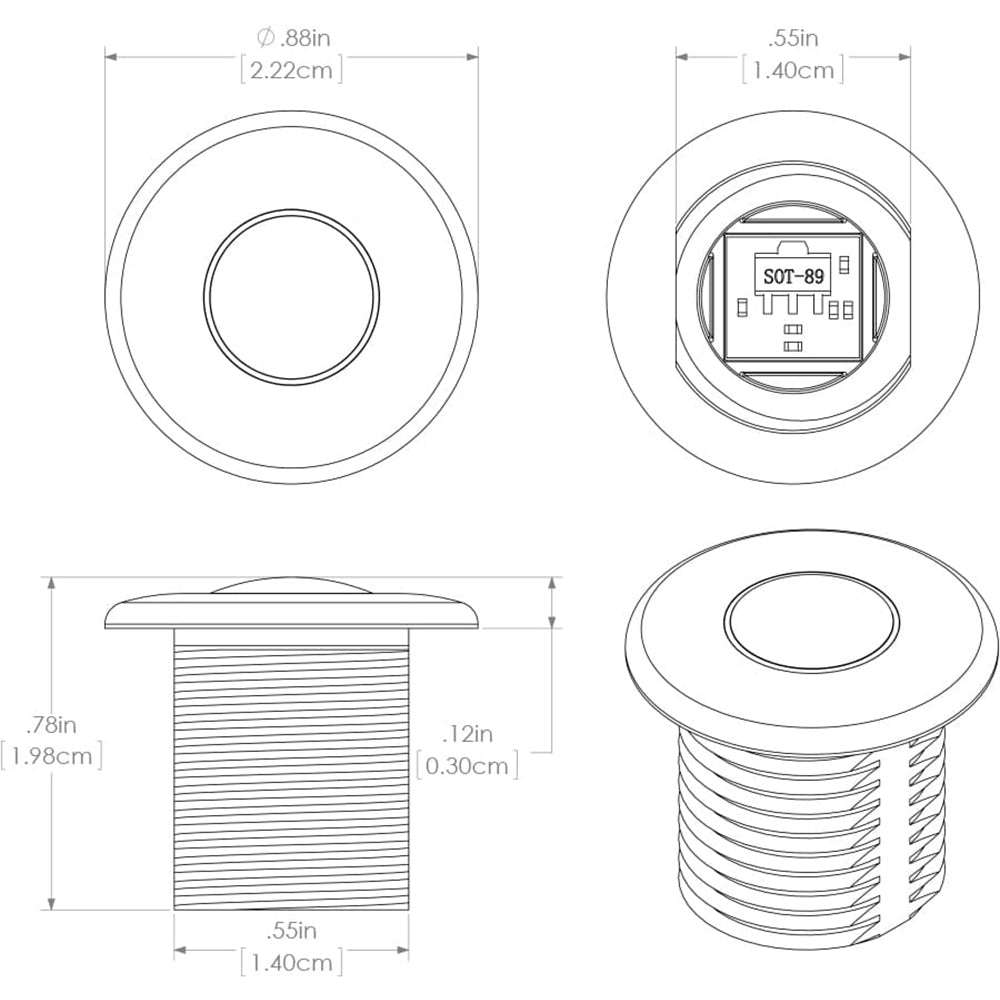

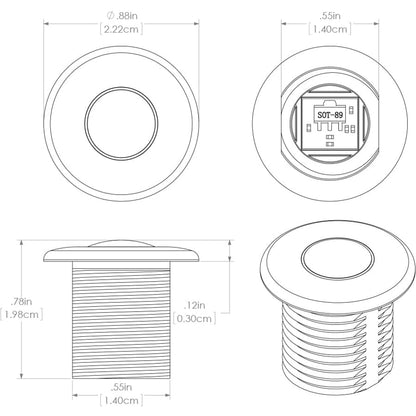

• Width: 0.88" (2.22cm)
• Height: 0.88" (2.22cm)
• Depth: 0.78" (1.98cm)

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Lumitec Newt Part Number 101086 is a versatile LED light designed for both livewell applications and general illumination needs. Engineered for flexibility, this compact light measures less than 1 inch in all dimensions, making it easy to install in tight spaces such as cabinets, storage lockers, toe kicks, or overhead areas. Its sealed, IP67 compliant design ensures reliable operation in wet or dry environments, providing peace of mind during marine use or in damp settings. The red dimming feature allows for customizable lighting, ideal for night vision preservation or ambient lighting scenarios.
Powered by a 10-16V DC power supply, the Newt light consumes only 45mA at 12V DC, making it energy-efficient while delivering sufficient illumination. It produces 19 lumens of red light with a correlated color temperature of 5000K and a Color Rendering Index of 70+, offering clear, vivid coloring suitable for various applications. The light's operating temperature range from -31°F to +131°F (-35°C to +55°C) ensures consistent performance across different climates and conditions. Constructed with high-quality materials and silicone gasket sealing, the Newt light is built to withstand harsh environments and maintain its functionality over time.
Whether used to illuminate a livewell, accent a storage area, or provide subtle overhead lighting, the Lumitec Newt offers a compact, durable, and highly adaptable lighting solution. Its easy installation, energy efficiency, and robust construction make it an excellent choice for marine, RV, or household applications where space and reliability are critical.

Features:

• Compact size: Less than 1 inch in width, height, and depth for easy installation in tight spaces

• Sealed and IP67 rated: Fully waterproof and dustproof for marine and outdoor use

• Red dimming feature: Customizable lighting for night vision and ambiance

• Low power consumption: 45mA at 12V DC for energy-efficient operation

• High durability: Built to withstand harsh environments with silicone gasket sealing

• Versatile application: Suitable for livewells, cabinets, lockers, toe kicks, and overhead lighting

• Wide operating temperature range: -31°F to +131°F (-35°C to +55°C) ensures reliable performance in various climates

• Easy installation: Small size and sealed design facilitate straightforward setup
