Lumitec Pico C4-MAX Expansion Module for Digital Lighting Control Systems

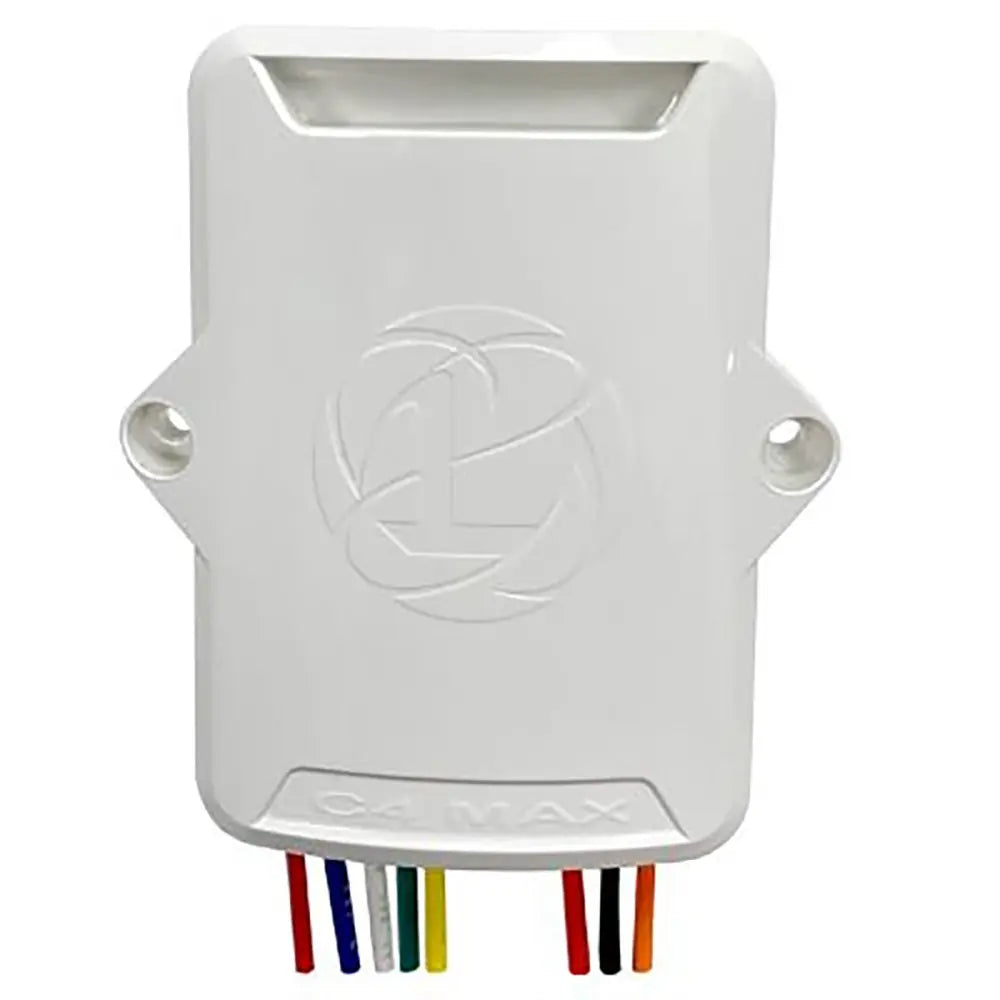

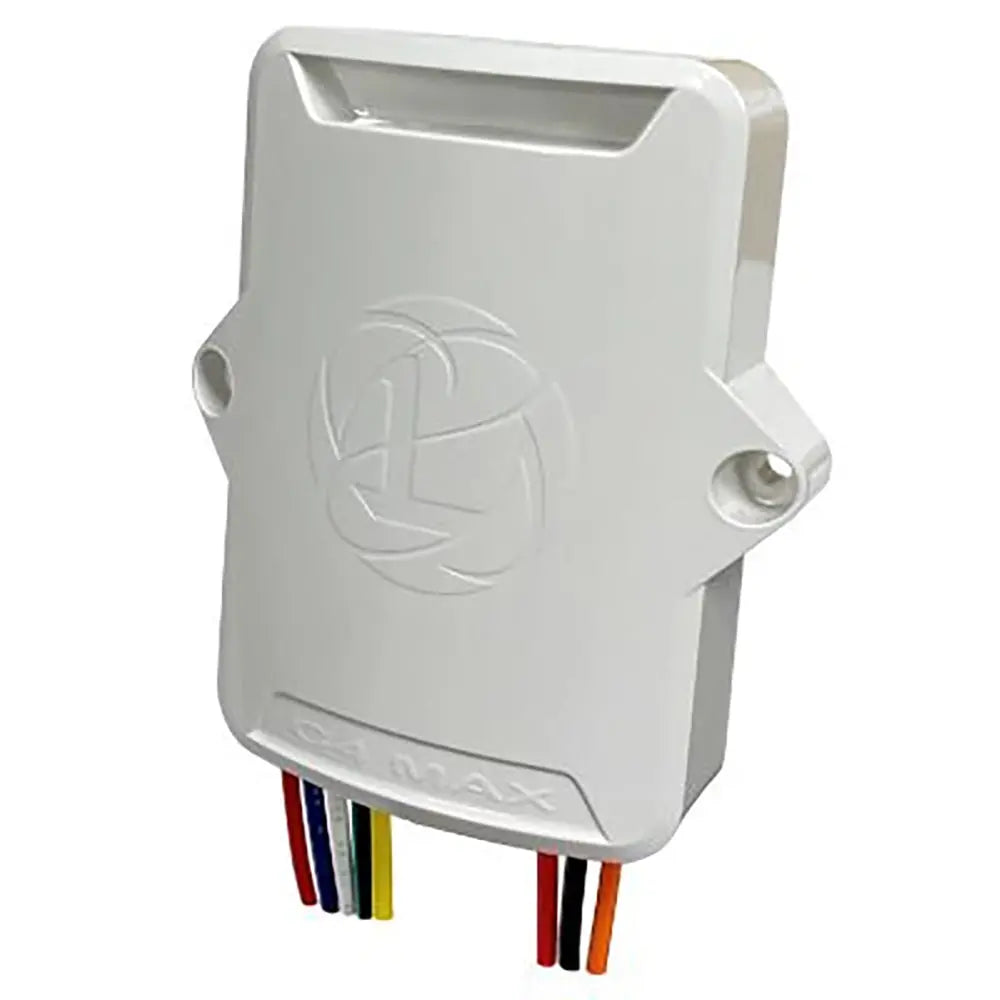

Pico C4-MAX Expansion Module

Pico Expansion Modules extend the power and reach of the Poco Digital Lighting Control system making it possible to control other manufacturers luminaires, lighting accessories, and devices that do not have the sophisticated PLI technology built-in.

The Pico C4 Module provides Poco or TTP control of third-party RGB or RGBW lighting accessories. This means that everything from strip lighting to lighted speakers can be controlled through the Poco system. On vessels not equipped with the Poco system, the Pico C4-MAX provides control of color and intensity through any normal on/off switch, using Lumitecs field-proven TTP protocol.

Specifications:

• CE Certified: Yes
• Depth: 0.88 in (2.23cm)
• Finish / Housing: White
• Height: 3.5 in (8.89cm)
• IP Rating: 67
• Max Amp/ch: 10A
• Number of Channels: N/A
• Op. Temp F/C: -31/35 to + 131/55
• PLI Enabled: Yes
• Sub Category: Pico Expansion Modules
• Timed Toggled Protocol (TTP): Yes
• UL Certified: No
• Voltage: 10vDC-30vDC
• Width: 3.1 in (7.87cm)

The Lumitec Pico C4-MAX Expansion Module enhances the capabilities of the Poco Digital Lighting Control system by enabling control of third-party luminaires, accessories, and devices that do not have built-in PLI technology. This module allows seamless integration with various lighting solutions, including RGB and RGBW strip lighting, as well as lighted speakers, broadening the scope of remote lighting management on marine vessels or other environments. The Pico C4-MAX provides control via the Lumitec or TTP protocol, allowing users to operate third-party lighting accessories through their existing Poco system or independently using standard on/off switches. This flexibility makes it suitable for vessels without the Poco system, giving users the ability to manage lighting color and intensity effortlessly.

Features:

• Control of third-party RGB and RGBW lighting accessories: Enables integration with a wide range of lighting products not originally compatible with Poco systems.

• TTP protocol support: Utilizes Lumitec's proven Timed Toggled Protocol for reliable device communication.

• CE Certified: Ensures compliance with European safety and performance standards.

• IP67 rated housing: Provides excellent protection against dust and water ingress, suitable for marine environments.

• Compact size: Measures approximately 3.5 inches high, 3.1 inches wide, and 0.88 inches deep, facilitating easy installation in tight spaces.

• Voltage range: Operates safely between 10VDC and 30VDC, making it compatible with standard marine electrical systems.

• High current capacity: Supports up to 10 amps per channel, accommodating a variety of lighting and accessory loads.

• Temperature tolerance: Designed to operate reliably from -31°F to +131°F (-35°C to +55°C).

• White finish: Blends seamlessly with marine lighting and control panels.
