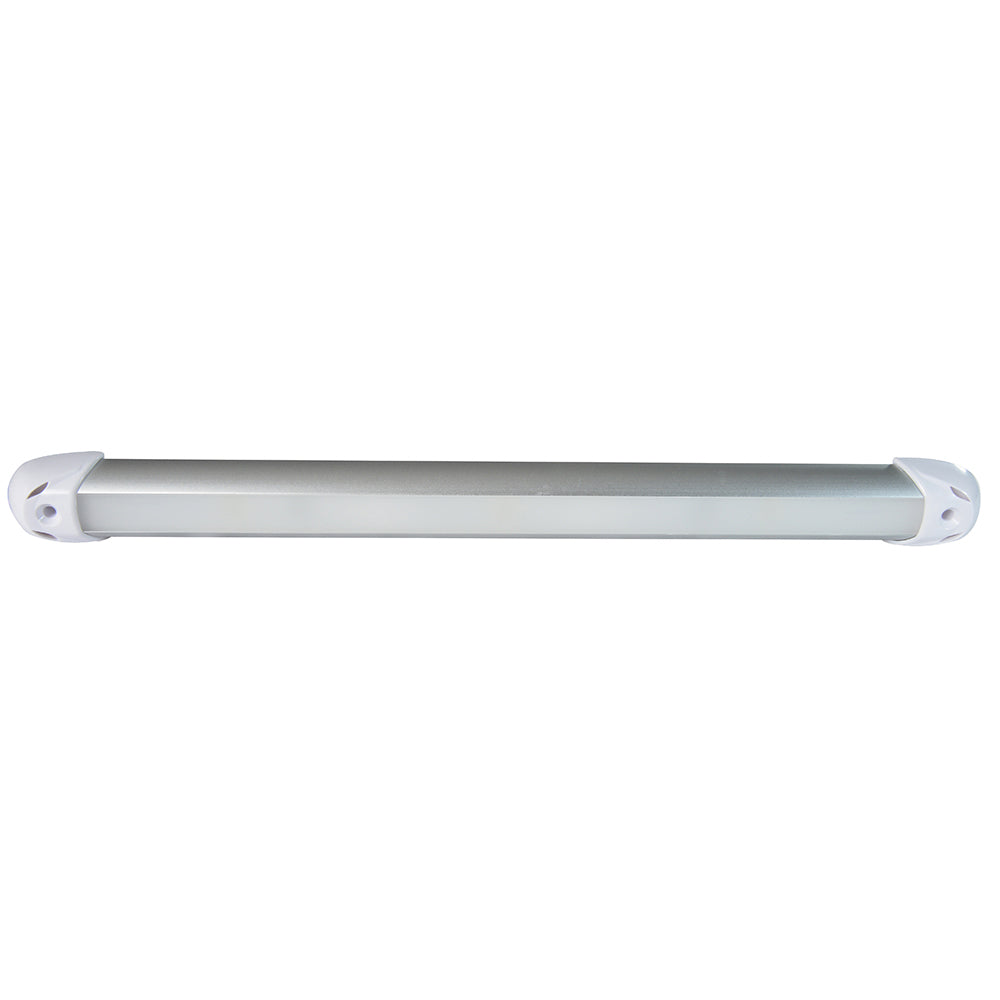

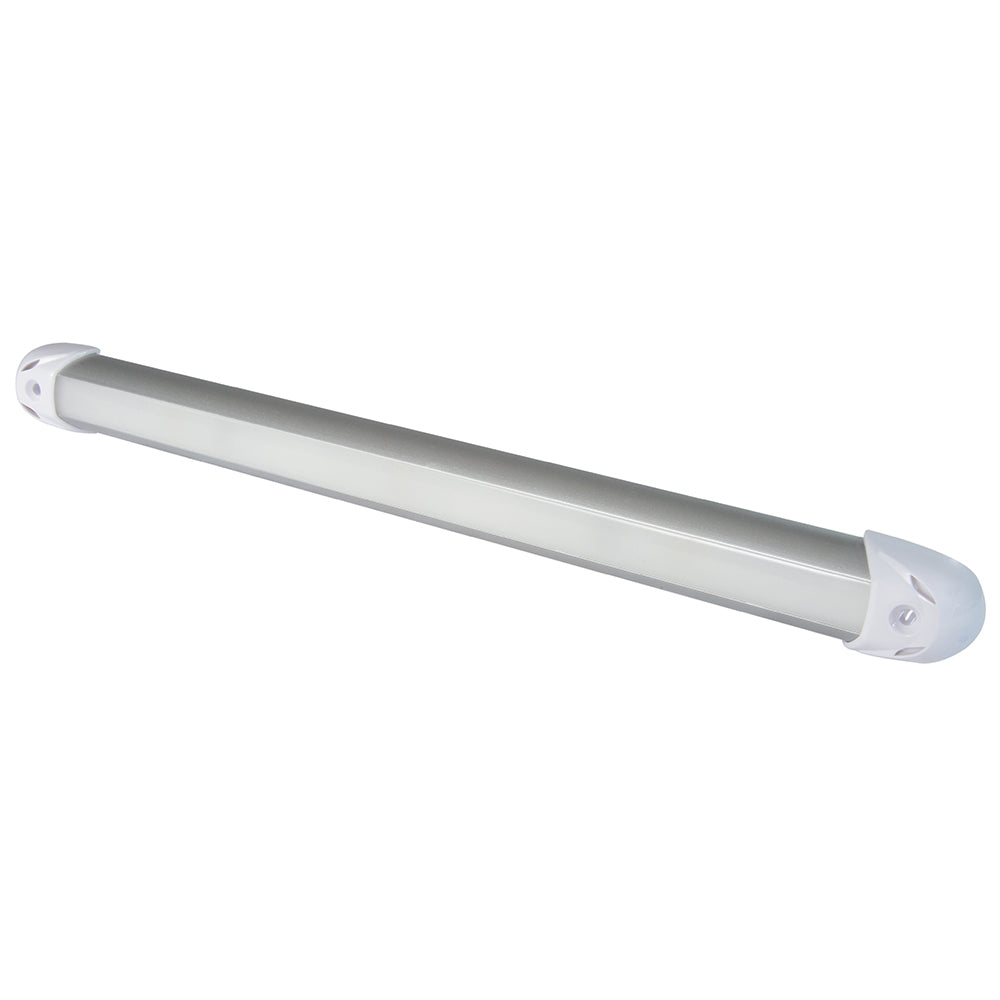

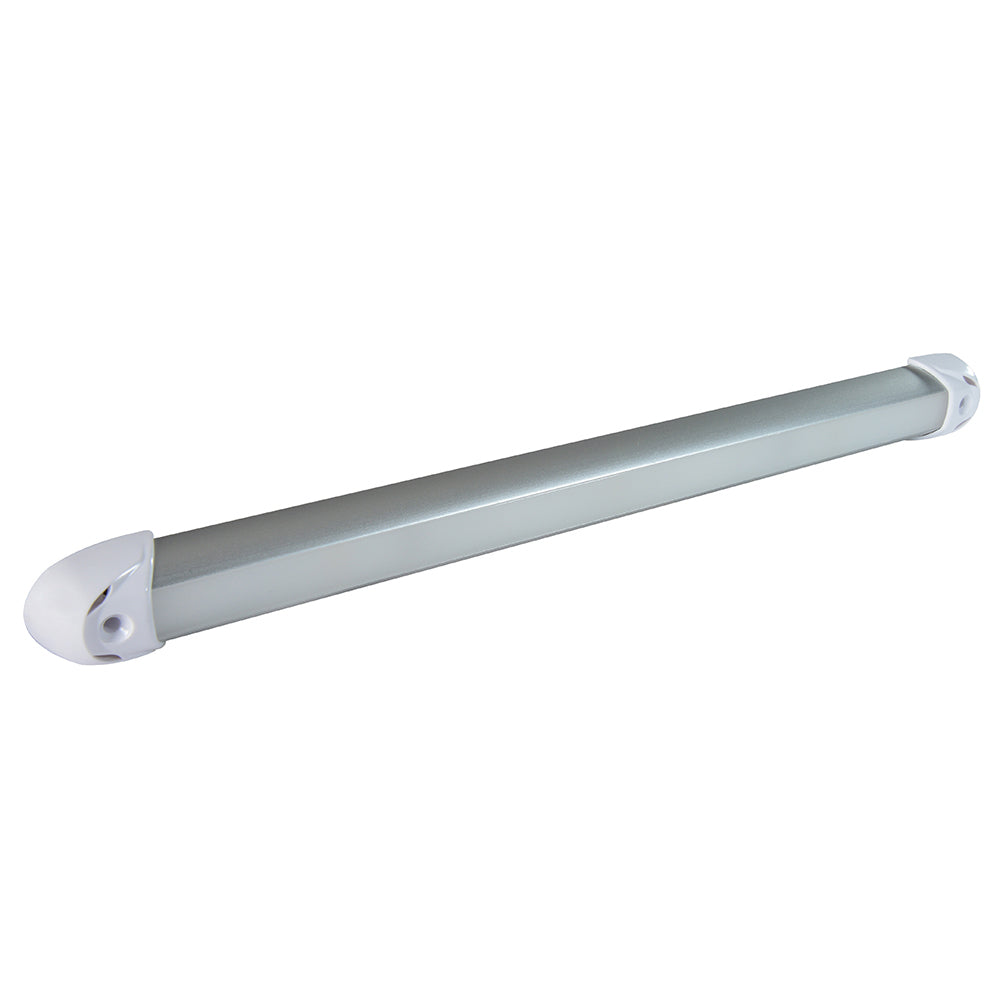

Lumitec Rail2 12-Inch Spectrum RGBW Full-Color LED Light

Rail2 12" Light - Spectrum RGBW Full-Color

Lumitec's original rail light amazed customers when it was first introduced in 2008. With up to 3 times greater output than its predecessor and a sleek new look, Rail2 raises the bar. The integrated microprocessor controls dimming and color change from two wires, with no external control modules. As with all Lumitec luminaires, the Rail2 is IP67 compliant, which means despite its great looks it is just at home on a spray-drenched hard top as a teak-adorned salon. Proudly made in the USA.

Specifications:

• Voltage: 10 - 30V DC
• 12V DC Amps: 920mA
• 24V DC Amps: 430mA
• Correlated Color Temperature: 5000
• Color Rendering Index: 70+
• Lumens (White): 490
• Rated Watts: 12
• Operating Temp (F): -31 to + 131 F
• Operating Temp (C): -35 to +55 C
• Width: 11.72" (29.76cm)
• Height: 1.11" (2.82cm)
• Depth: 0.60" (1.53cm)

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Lumitec Rail2 12-inch Spectrum RGBW full-color LED light offers exceptional illumination with versatile color options for marine and outdoor applications. Originally launched in 2008, this innovative rail light has been upgraded to deliver up to three times the output of its predecessor while maintaining a sleek, modern appearance. Its integrated microprocessor allows seamless control of dimming and color changes using just two wires, eliminating the need for external control modules and simplifying installation. Built to withstand harsh environments, the Rail2 is IP67 rated, ensuring protection against water and dust, making it suitable for spray-drenched boat decks or outdoor fixtures. Proudly manufactured in the USA, the Lumitec Rail2 combines durability, performance, and ease of use in a compact design.

Designed to operate on 10-30V DC systems, the Rail2 features a current draw of 920mA at 12V DC and 430mA at 24V DC, providing efficient power consumption. Its color temperature of 5000K offers bright, natural white light, while the RGBW capabilities enable full-color spectrum control for various mood and ambiance lighting effects. With a luminous flux of 490 lumens in white, this fixture ensures vibrant illumination without excessive power use. Its compact dimensions—just over 11 inches in width and less than an inch in height—allow for flexible mounting options on rails, hardtops, or other surfaces.

Constructed with high-quality materials, the Lumitec Rail2 is designed to perform reliably across a wide temperature range from -31°F to +131°F (-35°C to +55°C). Its slim profile and durable build make it ideal for marine, RV, or architectural applications where both aesthetics and resilience are critical. Easy to install and operate, the Rail2 provides customizable lighting solutions with minimal wiring complexity, thanks to its integrated microprocessor control system. Whether used for accent lighting, task illumination, or decorative effects, this full-color LED fixture enhances any environment with vibrant, controllable light.

Warning: This product may expose you to chemicals known to the State of California to cause cancer, birth defects, or reproductive harm. For more information, visit P65Warnings.ca.gov.

Features:

• Voltage: 10-30V DC for flexible power options

• Microprocessor-controlled dimming and color change via two-wire control

• Full-color spectrum RGBW with 490 lumens in white

• IP67 rated for water and dust resistance, suitable for harsh environments

• Compact design measuring approximately 11.72 inches wide with slim profile
