Lumitec Razor 18-Inch Flood Light Bar - Flush Mount White

Razor 18" Light Bar - Flood - Flush Mount - White

The Worlds FIRST flush-mount light bar. Razor was carefully designed to be easily integrated into most existing hardtop, arch, and pilothouse designs typically with little or no modification to production tooling.

Razor is designed to drop into a contoured pocket molded into a hardtop, radar arch, brow, or other surface. Alternatively, use Razors surface mount kit for a sleek, low profile installation on existing flat or slightly crowned tops. Mount forward or aft, horizontal or downward facing. In all installations Lumitecs careful thermal analysis and self-venting design puts an end to pod mounted lightbars, which can overheat and damage surrounding composites in hard tops. Flood and spot/flood beam patterns ensure the light goes where you need it.

Advanced Thermal Management

Razor has been designed and analyzed as a complete system with careful consideration of the top in which it is mounted. This means that Razor delivers maximum performance while protecting hardtops and pods from dangerously high temperatures.

80% Lower Profile Than Most Other Light Bars On The Market

Razors integrated design delivers more power with a cleaner, more streamlined look. Up to 80% more streamlined in fact. As the images to the right demonstrate Razor allows builders to eliminate light pods which must be molded and added separately, saving many hours of costly finishing labor. Razor simply drops into an as-molded recess. CAD models of mold plugs or tooling inserts may be provided upon request.

Features:

• 10,000+ TRUE lumens output
• Surface mountable on top or inverted
• Dimmable with no additional dimmer switch required
• Available with two beam patterns (spot or flood)
• Low profile (1.5") with sleek streamline design
• Powder-coated die-cast aluminum construction
• Voltage: 10-30V DC

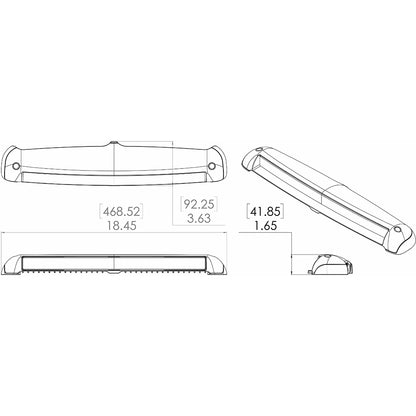

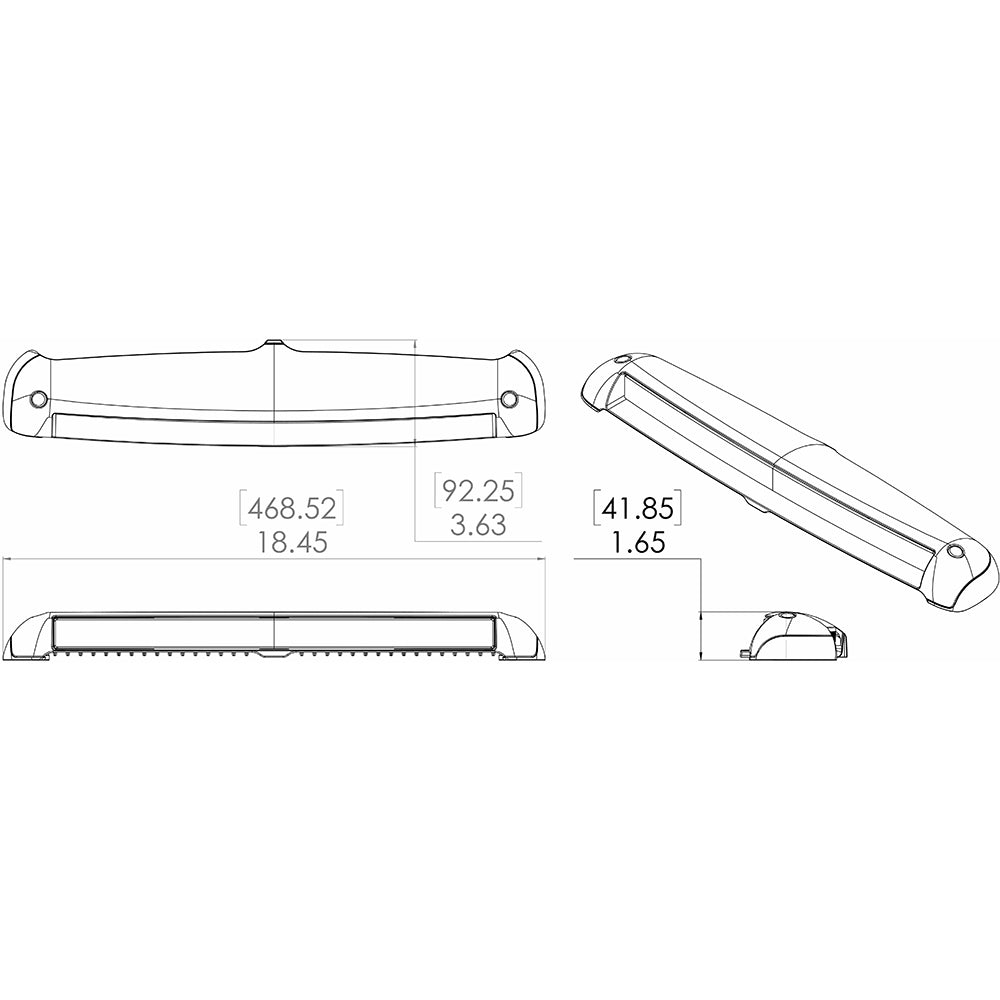

• Dimensions - 17.8" Length x 1.5" High x 3.5" Depth

The Lumitec Razor 18-inch light bar offers a sleek, integrated lighting solution designed for easy installation on hardtops, arches, and pilothouses with minimal modifications. Its flush-mount design allows it to seamlessly fit into contoured surfaces, creating a clean and streamlined appearance. The surface mount kit provides versatility for mounting on flat or slightly curved surfaces, enabling forward, aft, horizontal, or downward-facing configurations. This advanced design ensures a low-profile installation that enhances aesthetic appeal while maintaining high performance. The Razor's thermal management system actively dissipates heat, preventing overheating and protecting surrounding materials, which is particularly important for hardtops and pod-mounted applications. This thoughtful engineering results in maximum light output without compromising the integrity of your vessel's structure.

Features:

• Lumens: Over 10,000 true lumens for bright, reliable illumination

• Mounting Options: Surface mount or flush mount for flexible installation

• Beam Patterns: Available in both spot and flood configurations to suit various needs

• Dimming: Fully dimmable without requiring an additional dimmer switch

• Profile: Ultra-low profile at just 1.5 inches high for a sleek, streamlined look

• Construction: Powder-coated die-cast aluminum for durability and corrosion resistance

• Voltage: Operates efficiently on 10-30V DC systems

• Dimensions: Approximate length of 18 inches with a compact profile
