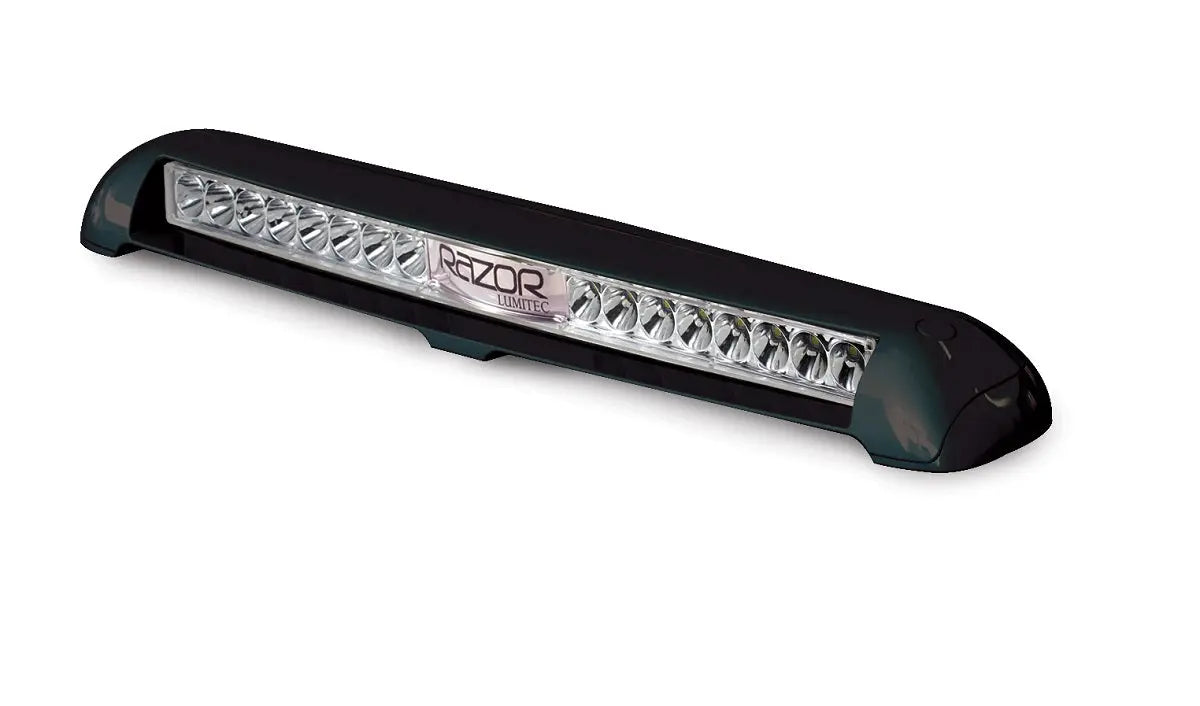

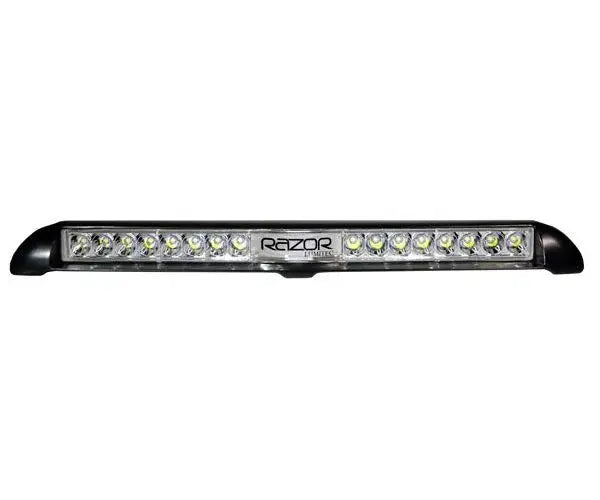

Lumitec Razor Spot Light Bar Flush Mount White LED Black Housing 12/24v

Lumitec Razor Spot Light Bar: Advanced Lighting for Every Application

Lumitec Razor Spot Light Bar Flush Mount White LED Black Housing 12/24v

Lumitec Razor Light Bar Spot Light, Black Housing

Model: 101589

• Die-Cast Aluminum Housing
• Sleek Low Profile Design
• Advanced Thermal Management

Sleek. Streamlined. Powerful. Introducing Razor - The World's FIRST flush-mount light bar. Razor was carefully designed to be easily integrated into most existing hardtop, arch, and pilothouse designs - typically with only minor modification to production tooling. When mounted facing forward, Razor's long-throw and high position are invaluable for spotting markers and obstructions. When positioned downward and aft, Razor floods cockpits, gunIn addition to clean lines and a low profile, following Lumitec's thermally-vetted reference designs allows OEMs to avoid the overheating and subsequent damage to hardtops that can be caused by enclosing other manufacturer's light bars in a 'pod'. Razor is also available in a surface-mount configuration, which mounts directly to un-modified hardtop surfaces and allows for an equally clean look and similar thermal performance. Available with two beam patterns (spot or flood) ensures the light goes where you need it most.wales and surrounding areas with more than 10,000 night-piercing lumens.

In addition to clean lines and a low profile, following Lumitec's thermally-vetted reference designs allows OEMs to avoid the overheating and subsequent damage to hardtops that can be caused by enclosing other manufacturer's light bars in a 'pod'. Razor is also available in a surface-mount configuration, which mounts directly to un-modified hardtop surfaces and allows for an equally clean look and similar thermal performance. Two beam patterns ensure the light goes where you need it.

Specifications

COLOR OUTPUTWhite Dimming

LUMENS
10,000

VOLTAGE
10-30vDC

12VDC Amps
9A

24VDC Amps
4.2A

Rated Watts
108W

CCT
5000

CRI
70+

Op. Temp F/C
-31/35 to + 131/55

Timed Toggled Protocol (TTP
No

Third Party Dimmer Compatibility (3PD)
No

Color Match Commitment (CM)
Yes

Mounting Hole Diameter
N/A

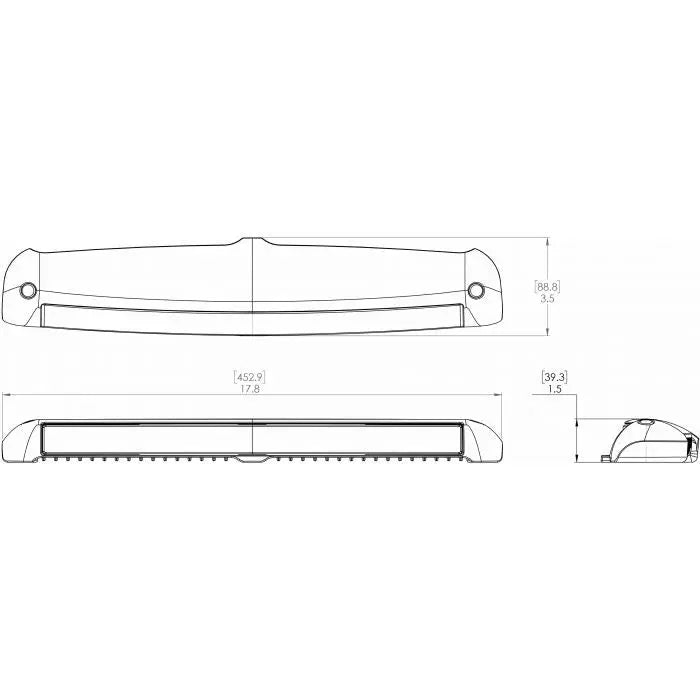

Height
1.5in (3.81 cm)

Width
18in (45.72cm)

Depth
3.5in (8.89 cm)

Diameter
N/A

Housing
Black

PLI Enabled
Yes

What's in the Box:

• Razor Spot Light
• Surface Mount

Compact and Durable Design

The Lumitec Razor Spot Light Bar features a sleek, flush mount design that seamlessly integrates into any surface. Constructed with a robust black housing, this product is built to withstand harsh environments, making it ideal for marine, automotive, and industrial uses. Its compact size does not compromise performance, offering a reliable lighting solution that is both unobtrusive and rugged. The durable materials ensure longevity, protecting the internal white LED components from corrosion and damage.

Powerful White LED Illumination

Equipped with high-quality white LEDs, the Lumitec Razor Spot Light Bar delivers bright, focused illumination for enhanced visibility. The spot beam pattern precisely targets specific areas, providing clear and efficient lighting where it’s needed most. This makes it perfect for night-time navigation, work sites, or any situation requiring concentrated light output. With optimized energy efficiency, the LED system consumes minimal power while ensuring maximum brightness and superior performance.

Versatile 12/24v Compatibility

Designed for flexibility, the Lumitec Razor Spot Light Bar supports both 12v and 24v power systems. This wide voltage range allows for easy installation across various platforms, from small boats and trucks to larger vehicles and equipment. The straightforward wiring provides convenience without sacrificing functionality. This adaptability combined with its flush mount setup offers users a seamless lighting upgrade that fits diverse applications, ensuring dependable operation in various power environments.
