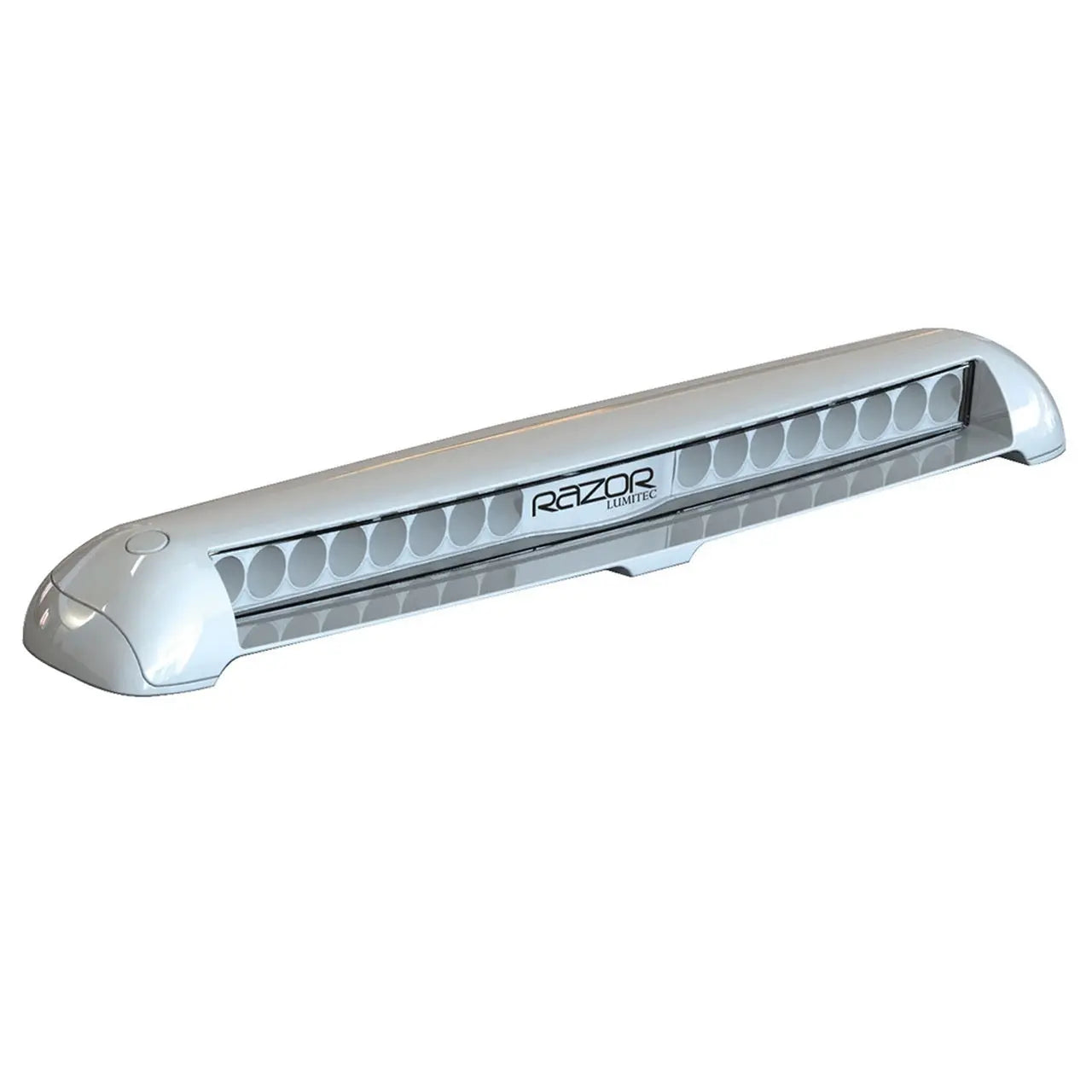

Lumitec Razor Spot Light Bar Flush Mount White LED White Housing 12/24v

Lumitec Razor Spot Light Bar Flush Mount White LED White Housing 12/24v

Lumitec Razor Light Bar Spot Light, White Housing

Model: 101587

• Die-Cast Aluminum Housing


• Sleek Low Profile Design


• Advanced Thermal Management

Sleek. Streamlined. Powerful. Introducing Razor - The World’s FIRST flush-mount light bar. Razor was carefully designed to be easily integrated into most existing hardtop, arch, and pilothouse designs — typically with only minor modification to production tooling. When mounted facing forward, Razor’s long-throw and high position are invaluable for spotting markers and obstructions. When positioned downward and aft, Razor floods cockpits, gunIn addition to clean lines and a low profile, following Lumitec’s thermally-vetted reference designs allows OEMs to avoid the overheating and subsequent damage to hardtops that can be caused by enclosing other manufacturer’s light bars in a ‘pod’. Razor is also available in a surface-mount configuration, which mounts directly to un-modified hardtop surfaces and allows for an equally clean look and similar thermal performance. Available with two beam patterns (spot or flood) ensures the light goes where you need it most.wales and surrounding areas with more than 10,000 night-piercing lumens.

In addition to clean lines and a low profile, following Lumitec’s thermally-vetted reference designs allows OEMs to avoid the overheating and subsequent damage to hardtops that can be caused by enclosing other manufacturer’s light bars in a ‘pod’. Razor is also available in a surface-mount configuration, which mounts directly to un-modified hardtop surfaces and allows for an equally clean look and similar thermal performance. Two beam patterns ensure the light goes where you need it.

Specifications

COLOR OUTPUT
White

LUMENS
10,000+ TRUE measured lumens

VOLTAGE
10-30vDC

12VDC Amps
9A

24VDC Amps
4.2A

Rated Watts
108W

CCT
5000

CRI
70+

Op. Temp F/C
-31/35 to + 131/55

Timed Toggled Protocol (TTP
No

Third Party Dimmer Compatibility (3PD)
No

Color Match Commitment (CM)
No

Mounting Hole Diameter
N/A

Height
1.5in (3.81 cm)

Width
18in (45.72cm)

Depth
3.5in (8.89 cm)

Diameter
N/A

Housing
White

What's in the Box:

• Razor Spot Light


• Surface Mount
