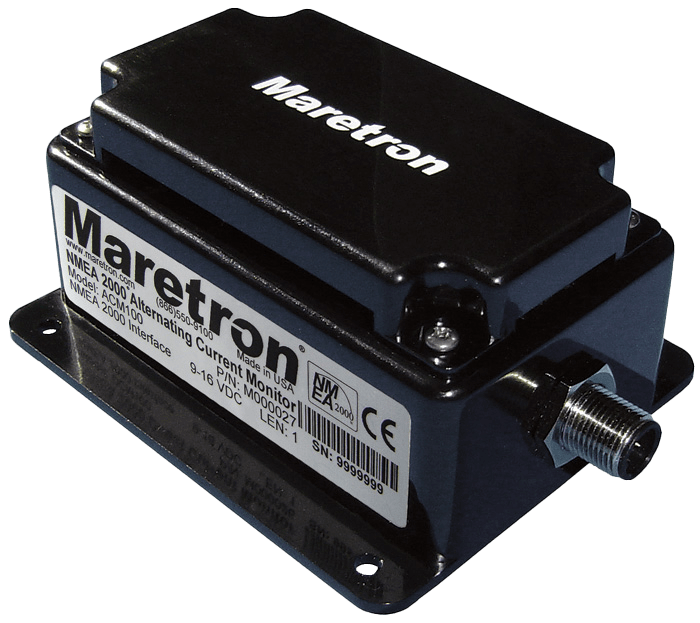

Maretron ACM10001 AC Power Monitor, NMEA 2000

Monitors Voltage/ Current/ Frequency/ Real Power/ Reactive Power/ Apparent Power/ Power Factor/ Total Energy Imported/ Total Energy Exported; 9 To 32 Volt DC Operating Voltage; 50 Milliampere Power Consumption; +/- 1 Percent Voltage And Current Accuracy; 3-1/2 Inch Depth x 2.03 inch Height; IP64 Protected: Reverse Battery Protection/ Load Dump Protection; -25 To 55 Degree Celsius Operating Temperature/ -40 To 70 Degree Celsius Storage Temperature; Approvals: NMEA 2000® Approved/ IEC 60945/ FCC Certified/ CE Certified; With 100 Ampere AC Current Transducer(With 1.5 Meter Cable)/ Four Stainless Steel Mounting Screws/ User Manual

The Maretron ACM10001 AC Power Monitor provides reliable monitoring of alternating-current electrical systems through an NMEA 2000 network. Designed for marine power management applications, it helps integrate AC system information into compatible onboard displays, monitoring systems, and vessel networks. This enables convenient access to electrical data from a centralized location without requiring a separate monitoring interface for each connected system.
The ACM10001 is suited for boat owners, marine technicians, and installers seeking a streamlined way to observe AC power performance. Its NMEA 2000 connectivity supports straightforward integration with compatible marine electronics, helping simplify installation and improve visibility into onboard electrical operation. The compact enclosure is well suited to equipment spaces where efficient use of available room is important.
Built for dependable marine use, the Maretron ACM10001 is a practical component for new installations, electrical system upgrades, and networked vessel monitoring solutions. Use it with compatible NMEA 2000 equipment to create a more informative and accessible onboard power-monitoring system. Verify system compatibility and installation requirements before purchase to ensure proper integration with the vessel’s electrical and network configuration.

Features:

• AC power monitoring for marine electrical systems

• NMEA 2000 network connectivity

• Integrates with compatible marine displays and monitoring equipment

• Suitable for onboard power management and system upgrades

• Compact enclosure for efficient equipment-space installation
