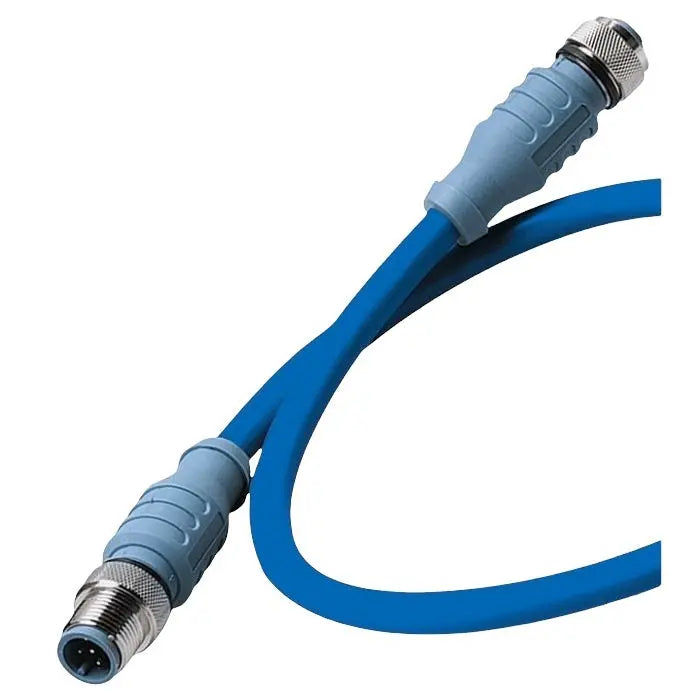

Maretron Blue Mid 2 Meter Cable with Male to Female Connectors - Model DM-DB1-DF-02.0

Maretron Blue Mid Cable 2M Male To Female Connector

The Maretron Blue Mid 2 Meter Cable, model DM-DB1-DF-02.0, is designed for reliable marine networking with durable, waterproof connectors. Featuring IP68-rated connectors, this cable ensures a secure and waterproof connection even when submerged in bilge water, making it ideal for demanding marine environments. Its rugged thermoplastic PUR construction in blue provides both strength and visibility, while the error-proof, keyed connectors simplify installation and reduce connection errors. The double-ended cordset is perfect for trunk or drop lines, providing a secure, time-saving solution for marine electronics setup. The cable's power pairs are optimized for voltage drop-sensitive networks, with wires having half the resistance of standard Micro cables, allowing for longer runs without power loss. The connectors are brass with gold and nickel plating, supporting a current rating of 4 amps and a voltage rating of 250 volts, suitable for a variety of marine power and data applications. The cable features multiple shielding layers—including foil shielding for overall, power, and data pairs—to reduce electromagnetic interference, ensuring signal integrity in complex marine environments. It is rated for temperatures from -40°C to 80°C (-40°F to 176°F) and complies with IEC IP68, NEMA 1, 3, 4, and 6P standards, providing excellent environmental protection. This cable is certified by UL and CSA standards for outdoor and marine use, including UL's PLTC and AWM certifications, and is NMEA 2000® approved for seamless integration with marine network systems. The cable's outer jacket is made of PVC in blue, and it contains 2x16 and 2x20 AWG conductors along with a drain wire, all shielded to maintain signal quality. With a weight of approximately 32 ounces, this 2-meter cable offers a robust and reliable connection for marine electronics, ensuring long-term operation and safety in challenging environments.

Features:

• IP68 rated waterproof connectors for secure marine connections

• Double-ended cordset designed for trunk or drop line installations

• Optimized for voltage drop-sensitive networks with low-resistance power wires

• Brass connectors with gold and nickel plating for durability and corrosion resistance

• Shielded with foil layers for enhanced electromagnetic interference protection

• Temperature rated from -40°C to 80°C (-40°F to 176°F) for versatile environmental use

• Certified by UL and CSA for outdoor and marine applications

• NMEA 2000® approved for marine network compatibility

• Constructed with rugged thermoplastic PUR in blue for high visibility and durability

• Supports up to 4 amps and 250 volts for versatile power and data transfer
