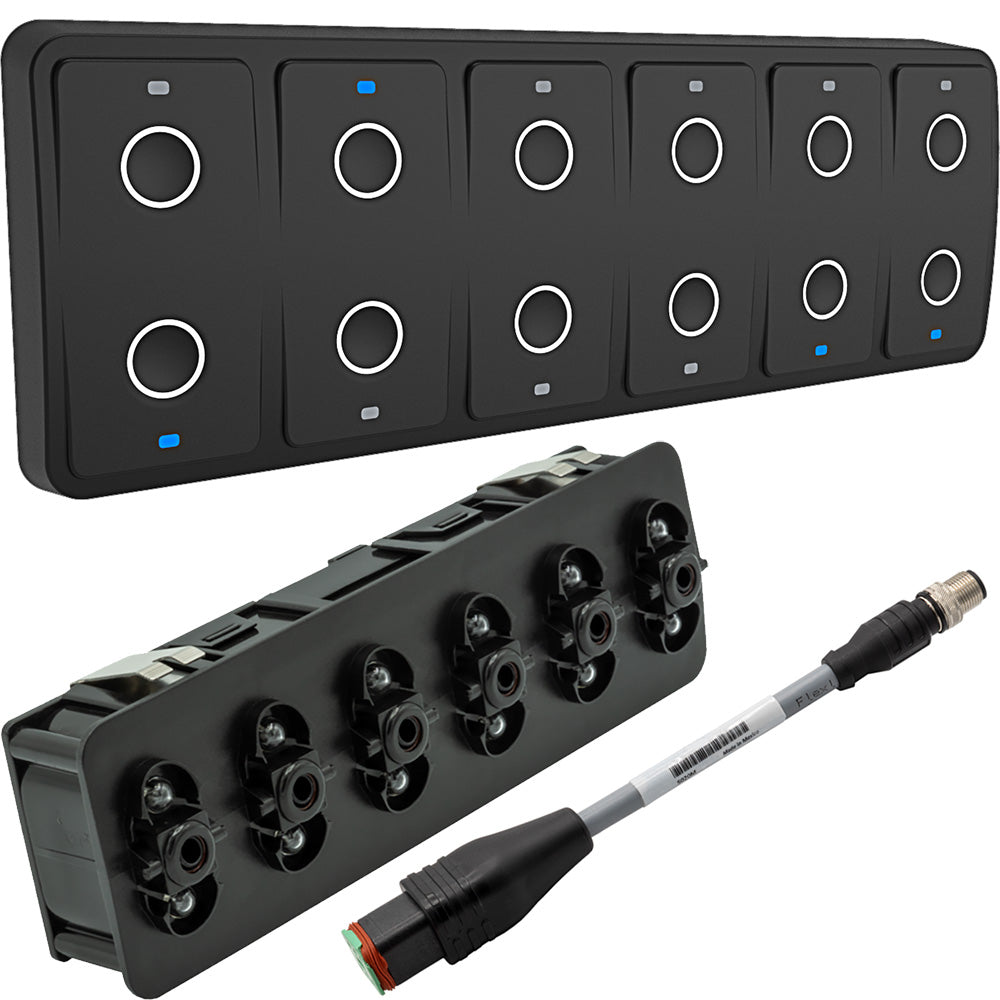

Maretron CKM12 Keypad with NMEA 2000 Adapter Cable - 0.2M for Marine Digital Switching

CKM12 Keypad with CKM to NMEA 2000 Adapter Cable - 0.2M

The CKM12 is a customizable keypad featuring laser-etched legends and LED function lights for each button. The LEDs also provide diagnostics when fault conditions are detected.

With the rugged mechanical packaging (IP69K), the CKM12 can be installed inside or outside the cabin. The low-profile design offers a seamless dashboard look, and it can be mounted either vertically or horizontally.

The CKM12 offers significant advantages over traditional electromechanical switches, such as a longer actuation cycle (1,000,000), reduced wiring harness, and reduced installation time. The CKM12 is sold off the shelf in two configurations and includes a CKM to NMEA 2000 Adapter Cable.

The CKM12 is sold off the shelf in two configurations of legends. Consult the factory for additional options and minimum quantities for customization.

Features:

• NMEA 2000 CAN Protocol
• IP69K Front Panel Sealing Protection
• Configurable
• Diagnostic Feedback
• Standard or Custom Etched Legends
• 1,000,000+ Button Actuation Cycles.
• Low Current Switching
• Tactile and Audible Feedback
• Circle on buttons

Applications:

• The dimmable button switches on the CKM12 are programmable to control any Maretron digital switching loads
• Can be paired with third-party systems using the NMEA 2000 standard PGN 127501 Binary Status Report

The Maretron CKM12 is a versatile and durable keypad designed for marine applications, featuring laser-etched legends and LED indicator lights for each button. These LEDs not only enhance visibility but also provide diagnostic feedback, alerting users to fault conditions quickly and efficiently. The keypad's rugged IP69K-rated enclosure ensures protection against water ingress and dust, making it suitable for installation inside or outside the cabin. Its low-profile design offers a sleek, seamless appearance on dashboards and can be mounted either vertically or horizontally to suit various vessel layouts. The CKM12's innovative design offers a significant upgrade over traditional electromechanical switches, boasting a high actuation cycle count of over one million, reducing the need for maintenance and replacement. It also simplifies wiring and installation, saving time and effort during setup. The product is available in two configurations with standard or customizable legends, enabling tailored control interfaces for specific applications. Included with the keypad is a CKM to NMEA 2000 adapter cable, facilitating seamless integration with your existing marine electronics system. The CKM12's compatibility with NMEA 2000 allows it to communicate easily with third-party systems, supporting PGN 127501 Binary Status Reports, and making it suitable for controlling digital switching loads onboard vessels. Its configurable buttons support dimming and programmable functions, providing flexible control options for various marine systems. The tactile and audible feedback ensures reliable operation in challenging environments, making the CKM12 an essential component for modern marine vessel control systems, whether used for lighting, pumps, or other digital loads. Overall, the Maretron CKM12 offers a robust, customizable, and easy-to-install solution for enhancing vessel automation and control capabilities.

Features:

• NMEA 2000 CAN Protocol for seamless marine network integration

• IP69K front panel sealing protection for rugged outdoor use

• Configurable buttons for flexible control options

• Diagnostic feedback via LED indicators for fault detection

• Standard or custom etched legends for tailored labeling

• Over 1 million button actuation cycles for long-term durability

• Low current switching for energy-efficient operation

• Tactile and audible feedback for reliable button presses

• Circular button design for intuitive operation
