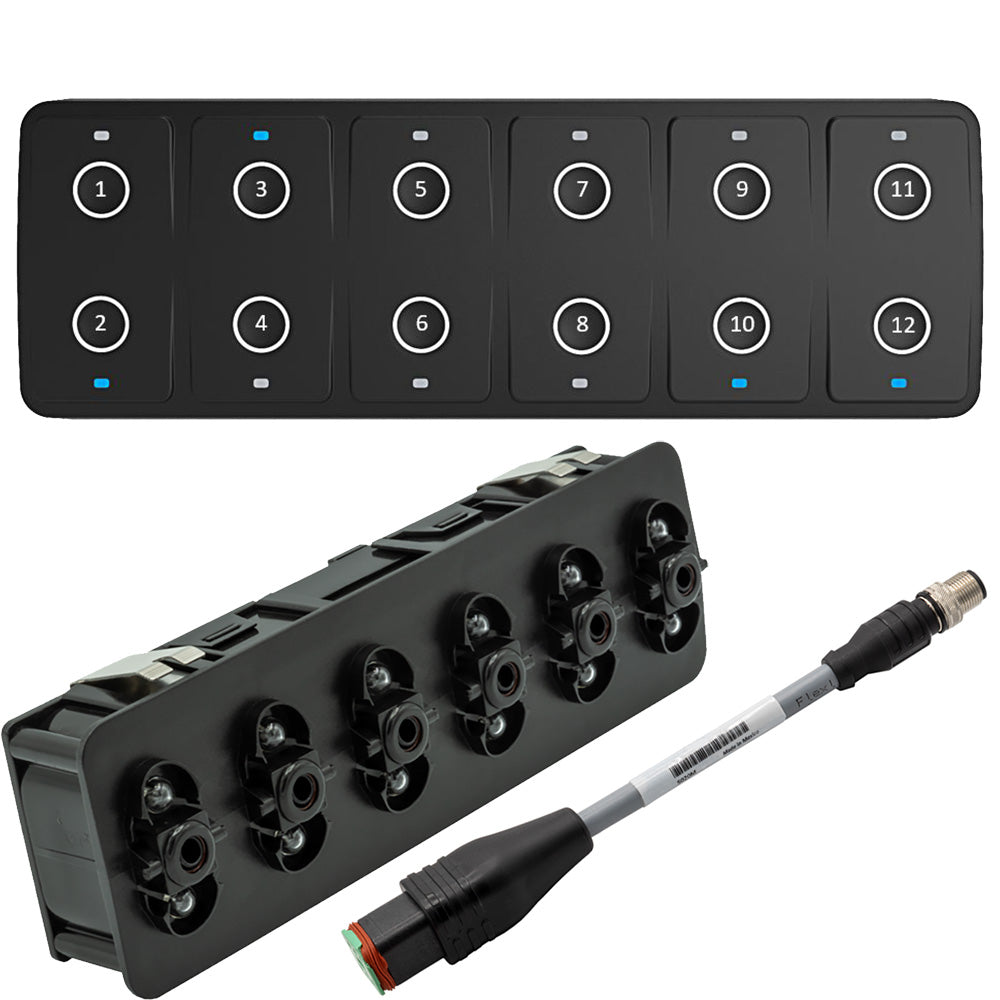

Maretron CKM12 Keypad with NMEA 2000 Adapter Cable – Horizontal Installation

CKM12 Keypad with CKM to NMEA 2000 Adapter Cable - 0.2M (Horizontal Orientation)

The CKM12 is a customizable keypad featuring laser-etched legends and LED function lights for each button. The LEDs also provide diagnostics when fault conditions are detected.

With the rugged mechanical packaging (IP69K), the CKM12 can be installed inside or outside the cabin. The low-profile design offers a seamless dashboard look, and it can be mounted either vertically or horizontally.

The CKM12 offers significant advantages over traditional electromechanical switches, such as a longer actuation cycle (1,000,000), reduced wiring harness, and reduced installation time. The CKM12 is sold off the shelf in two configurations and includes a CKM to NMEA 2000 Adapter Cable.

The CKM12 is sold off the shelf in two configurations of legends. Consult the factory for additional options and minimum quantities for customization.

Features:

• NMEA 2000 CAN Protocol
• IP69K Front Panel Sealing Protection
• Configurable
• Diagnostic Feedback
• Standard or Custom Etched Legends
• 1,000,000+ Button Actuation Cycles.
• Low Current Switching
• Tactile and Audible Feedback
• Number in center of circle on buttons

Applications:

• The dimmable button switches on the CKM12 are programmable to control any Maretron digital switching loads
• Can be paired with third-party systems using the NMEA 2000 standard PGN 127501 Binary Status Report

The Maretron CKM12 is a versatile and durable keypad designed for marine control systems, featuring laser-etched legends and LED indicators for each button to ensure clear operation. Its rugged IP69K-rated front panel sealing protection allows for installation both inside and outside the cabin, providing flexibility in placement. The low-profile design offers a seamless dashboard appearance and can be mounted either vertically or horizontally to suit various configurations. This keypad enhances control with its long-lasting switch actuation cycle of over 1,000,000 presses, reducing the need for frequent replacements and minimizing maintenance. It also simplifies wiring and installation, making it an ideal choice for efficient system integration. The package includes a 0.2-meter CKM to NMEA 2000 Adapter Cable, ensuring seamless communication with NMEA 2000 networks and compatibility with existing marine electronics. The CKM12 offers configurable legends, either standard or custom etched, allowing customization to meet specific operational requirements. Its diagnostic feedback feature alerts operators to fault conditions, enhancing system reliability and safety. Designed for marine environments, the keypad's tactile and audible feedback provides confirmation of button presses, improving user interaction. Its low current switching capability enables integration with various digital loads, making it suitable for a wide range of control applications. The keypad's central number display on each button facilitates quick identification and operation, streamlining control tasks. Overall, the Maretron CKM12 is a reliable, customizable control solution that combines durability, flexibility, and ease of use for marine electronic systems.

Features:

• NMEA 2000 CAN Protocol for seamless marine network integration

• IP69K front panel sealing for protection against harsh marine environments

• Configurable legends, including standard or custom etched options

• Diagnostic feedback for fault detection and troubleshooting

• Over 1,000,000 button actuation cycles for extended durability

• Low current switching suitable for digital load control

• Tactile and audible feedback for confirmed button presses

• Numbered buttons with center display for easy identification

• Rugged mechanical design for indoor and outdoor use

• Flexible mounting options for vertical or horizontal installation
