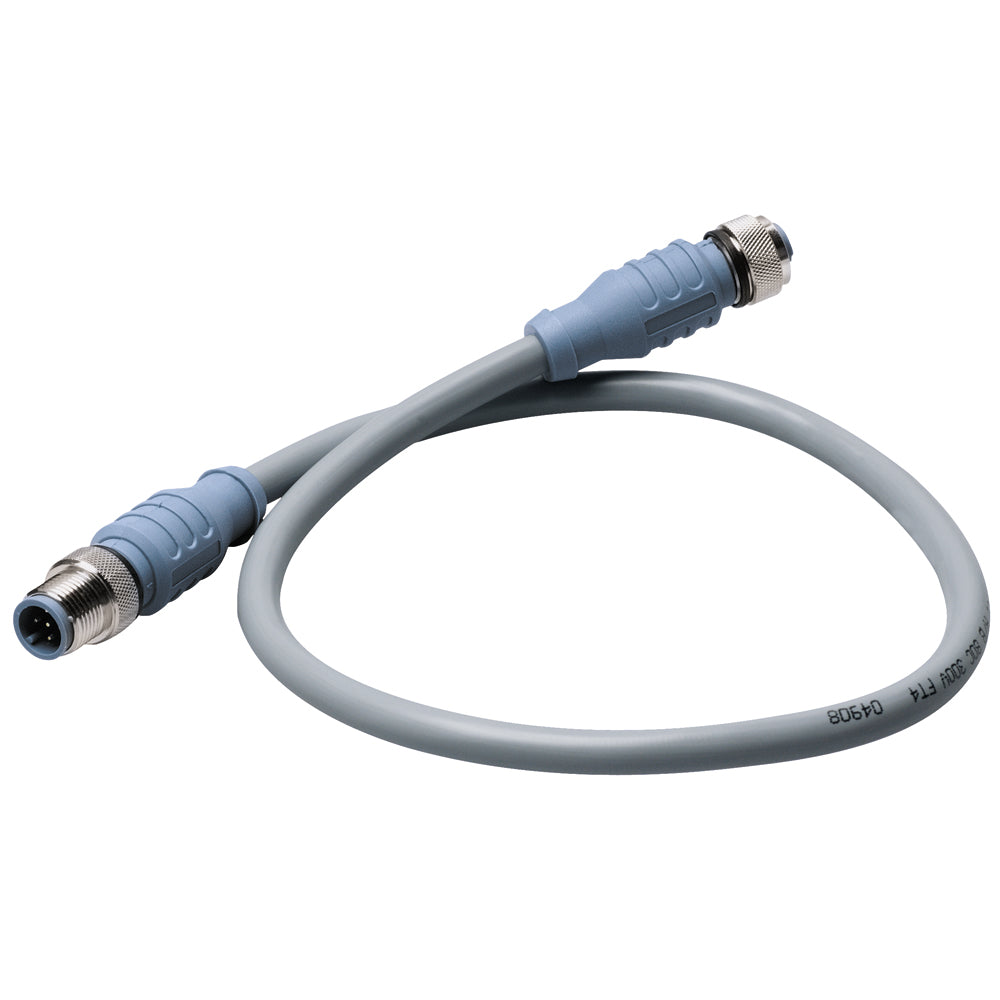

The Maretron CM-CG1-CF-00.5 Micro Double-Ended Cordset provides a reliable and durable connection solution designed for demanding marine and industrial environments. Constructed with high-quality thermoplastic PUR materials in blue-gray, the molded body and contact carriers ensure robustness and resistance to harsh conditions. This cordset features brass contacts with gold plating for enhanced conductivity and corrosion resistance, along with brass nickel-plated coupling nuts for secure connections. Its compact outside diameter of approximately 0.59 inches makes it suitable for tight spaces while maintaining a current rating of 4.0 Amps and a maximum voltage of 250 Volts. The cable's outer jacket is made of gray PVC, providing additional protection against environmental factors. The conductors are insulated with high-density polyethylene (HDPE) for data pairs and SRPVC for power pairs, supporting 22 AWG conductors and a drain wire, with multi-level shielding—foil for overall, power, and data pairs—to minimize electromagnetic interference. Designed to withstand harsh conditions, this cordset boasts an environmental protection rating of IEC IP68 and NEMA 1, 3, 4, and 6P, making it suitable for underwater, outdoor, and industrial use. It operates reliably within temperature ranges from -40°C to 80°C (-40°F to 176°F) and is approved under multiple standards including UL, CSA, and NMEA 2000. Certified for outdoor sunlight resistance and high-temperature environments, this cordset ensures long-lasting performance in challenging applications. Whether used in marine vessels, industrial automation, or other critical systems, the Maretron Micro Double-Ended Cordset guarantees secure, high-quality connections that meet rigorous industry standards.
Features:
Contact Carrier Material: Thermoplastic PUR with blue-gray coloring for durability
Molded Body Material: Thermoplastic PUR providing impact resistance
Contact Plating: Brass with gold finish for optimal conductivity and corrosion resistance
Coupling Nut: Brass with nickel plating for secure and reliable connections
Connector Diameter: Approximately 0.59 inches for compact installation
Current Rating: 4.0 Amps suitable for power and control circuits
Voltage Rating: Up to 250 Volts for versatile application use
Outer Jacket: Gray PVC for environmental protection and durability
Conductor Insulation: HDPE for data pairs and SRPVC for power pairs ensuring insulation integrity
Number of Conductors: 4x22 AWG conductors plus a drain wire for signal integrity
Shielding: Triple-layer foil shielding for effective electromagnetic interference mitigation
Environmental Resistance: IEC IP68 and NEMA 1, 3, 4, 6P rated for underwater and outdoor use
Temperature Range: -40°C to 80°C (-40°F to 176°F) for reliable operation across environments
Certifications: UL, CSA, and NMEA 2000 approval for industry-standard compliance
Sunlight and High-Temperature Resistant: Suitable for outdoor applications with prolonged exposure
