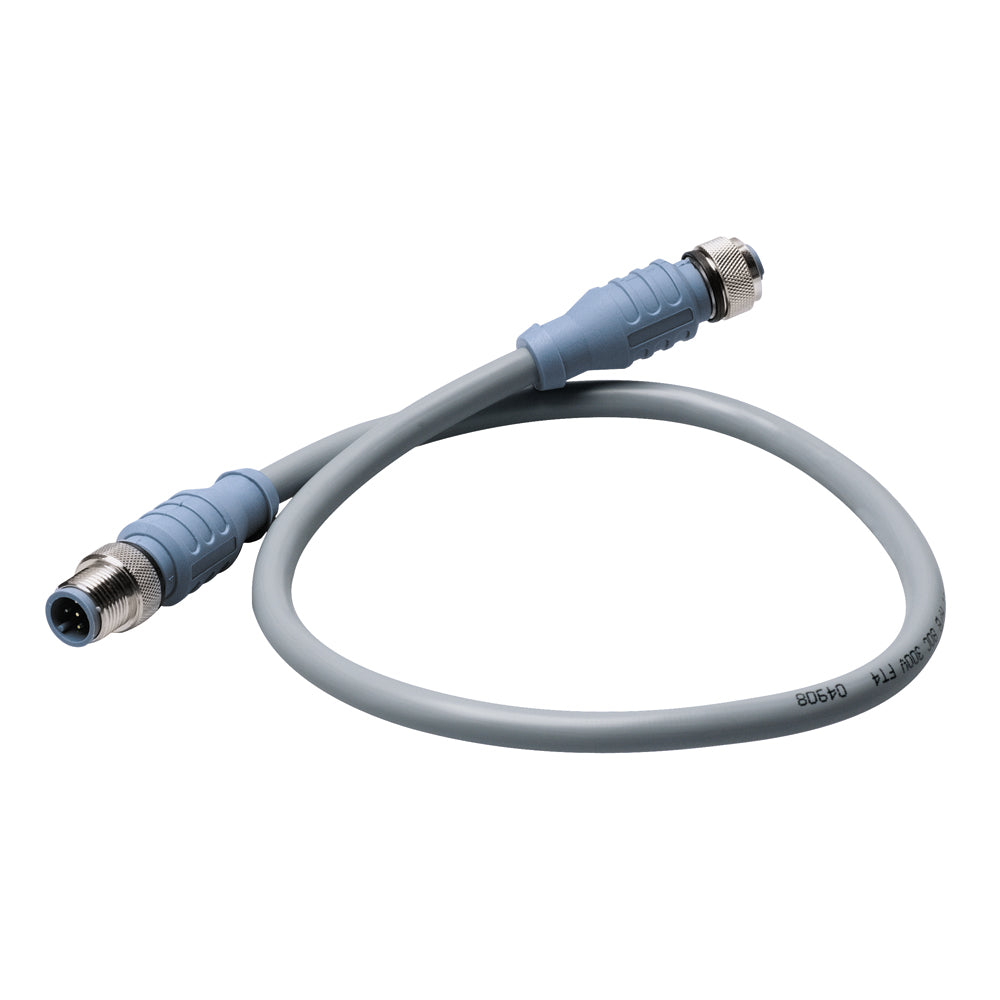

Maretron CM-CG1-CF-04.0 Micro Double-Ended Cordset, 4 Meter - Marine Grade Data and Power Cable

Maretron CM-CG1-CF-04.0 Micro Double-Ended Cordset, 4 Meter - Marine Grade Data and Power Cable

Regular price $42.99 USD
Sale price $42.99 USD Regular price
Sale Sold out
Shipping calculated at checkout.
Mechanical
  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V
    Cable
  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
  • Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
  • Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
    Environmental
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
    Approvals
  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80C 300V FT4
  • NMEA: NMEA 2000 Approved
  • The Maretron CM-CG1-CF-04.0 Micro Double-Ended Cordset is a high-performance marine-grade cable designed for reliable data and power transmission in demanding environments. Featuring a rugged construction with thermoplastic PUR contact and molded bodies in blue-gray, this cordset ensures durability and resistance to harsh conditions. The brass contact carriers are gold-plated for enhanced conductivity and corrosion resistance, while the coupling nut is nickel-plated brass, providing secure connections in marine applications. The connector outside diameter of 0.59 inches makes it suitable for tight spaces on boats and ships, ensuring a snug fit and dependable performance.
    The cable's environmental ratings include IEC IP68 and NEMA 1, 3, 4, 6P, offering protection against water ingress, dust, and other environmental hazards. It operates effectively across a temperature range from -40°F to 176°F, making it suitable for a wide range of marine and outdoor applications.
    This cable features four conductors with 22 AWG gauge, along with a drain wire, and employs a triple shielding system—foil shields for overall, power, and data pairs—ensuring minimal electromagnetic interference and signal integrity. The outer jacket is made of gray PVC, providing additional environmental protection. The cable is UL and CSA approved, with certifications for sunlight resistance, outdoor use, and high-temperature operation, making it compliant with industry standards. It is also NMEA 2000 approved, ensuring compatibility with marine networking systems.
    Designed for durability and high performance, the Maretron Micro Double-Ended Cordset is ideal for connecting marine electronics, sensors, and power systems where reliable communication and power delivery are essential. Its compact size and robust construction make it a versatile choice for marine technicians and hobbyists alike, ensuring long-term service even in the most challenging marine environments.

    Features:

    • Contact Carrier Material: Thermoplastic PUR in Blue-Gray with gold-plated brass contacts for corrosion resistance
    • Molded Body Material: Thermoplastic PUR in Blue-Gray for durability
    • Connector Exterior Diameter: 0.59 inches for tight-space applications
    • Current Rating: 4.0 Amps with a Voltage Rating of 250 V, suitable for power and data transmission
    • Cable Outer Jacket: Gray PVC providing environmental protection and flexibility
    • Conductors: Four 22 AWG conductors plus a drain wire for robust data and power transfer
    • Shielding: Triple foil shield system for EMI protection—overall, power, and data pairs
    • Environmental Protection: IEC IP68 and NEMA 1, 3, 4, 6P for water, dust, and environmental ingress resistance
    • Temperature Range: -40°F to 176°F, suitable for various marine and outdoor conditions
    • Certifications: UL and CSA approved, Sunlight resistant, NMEA 2000 certified, ensuring compliance and reliability

    11 in stock
