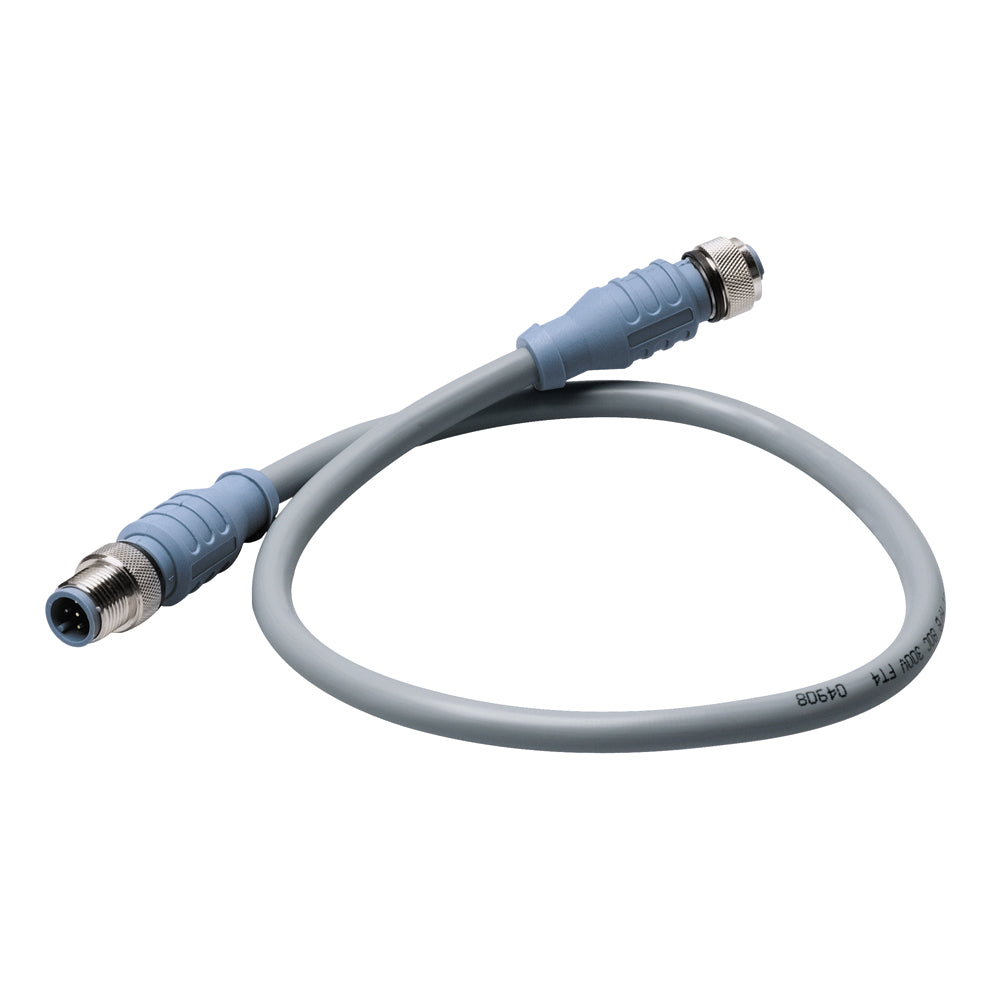

Maretron CM-CG1-CF-05.0 Micro Double-Ended Cordset, 5 Meter for Marine and Industrial Applications

The Maretron CM-CG1-CF-05.0 is a high-performance 5-meter micro double-ended cordset designed for reliable electrical connections in marine, industrial, and data communication environments. Featuring a durable PVC outer jacket in gray, this cordset offers excellent protection against environmental elements, with a protection class of IEC IP68 and compliance with NEMA 1, 3, 4, and 6P standards. The cable's construction includes four conductors of 22 AWG with HDPE insulation for data pairs and SRPVC insulation for power pairs, ensuring signal integrity and power delivery in demanding conditions. Shielded with three layers of foil (overall, power, and data), it effectively minimizes electromagnetic interference, maintaining robust data and power transmission across various applications. The contact carrier and molded body are made from thermoplastic PUR in blue-gray, providing durability and resistance to environmental stresses. Brass contact carriers with gold plating and brass coupling nuts with nickel plating ensure secure and corrosion-resistant connections. The connector's outside diameter measures approximately 0.59 inches, capable of handling up to 4.0 amps at 250 volts, making it suitable for a wide range of electrical and communication tasks. Certified by UL and CSA with outdoor and sunlight resistance ratings, this cordset is built for longevity and reliable performance in harsh environments. Its NMEA 2000 approval further confirms its suitability for marine communication networks, ensuring seamless integration with existing systems. Whether for data transfer, power distribution, or sensor connections, the Maretron Micro Double-Ended Cordset delivers consistent, professional-grade performance, making it an ideal choice for marine, industrial, and demanding electrical applications.

Features:

• Contact Carrier Material: Thermoplastic PUR in blue-gray for durability

• Molded Body Material: Thermoplastic PUR in blue-gray for environmental resistance

• Contact Plating: Brass with gold finish for corrosion resistance

• Coupling Nut Plating: Brass with nickel plating for secure connections

• Connector Outside Diameter: Approximately 0.59 inches for compatibility

• Current Rating: 4.0 Amps suitable for power and signal applications

• Voltage Rating: 250 Volts for versatile electrical use

• Outer Jacket: PVC in gray providing environmental protection

• Conductor Insulation: HDPE for data pairs and SRPVC for power pairs ensuring signal clarity

• Number of Conductors: Four 22 AWG conductors plus a drain wire for comprehensive connectivity

• Shielding: Three levels of foil shielding (overall, power, data) to reduce EMI

• Protection Class: IEC IP68, NEMA 1, 3, 4, 6P for harsh environment durability

• Temperature Range: -40°F to 176°F (-40°C to 80°C) suitable for extreme conditions

• Certifications: UL, CSA, and NMEA 2000 approval for safety and compatibility

• Application: Designed for marine, industrial, and outdoor environments requiring reliable data and power connections
