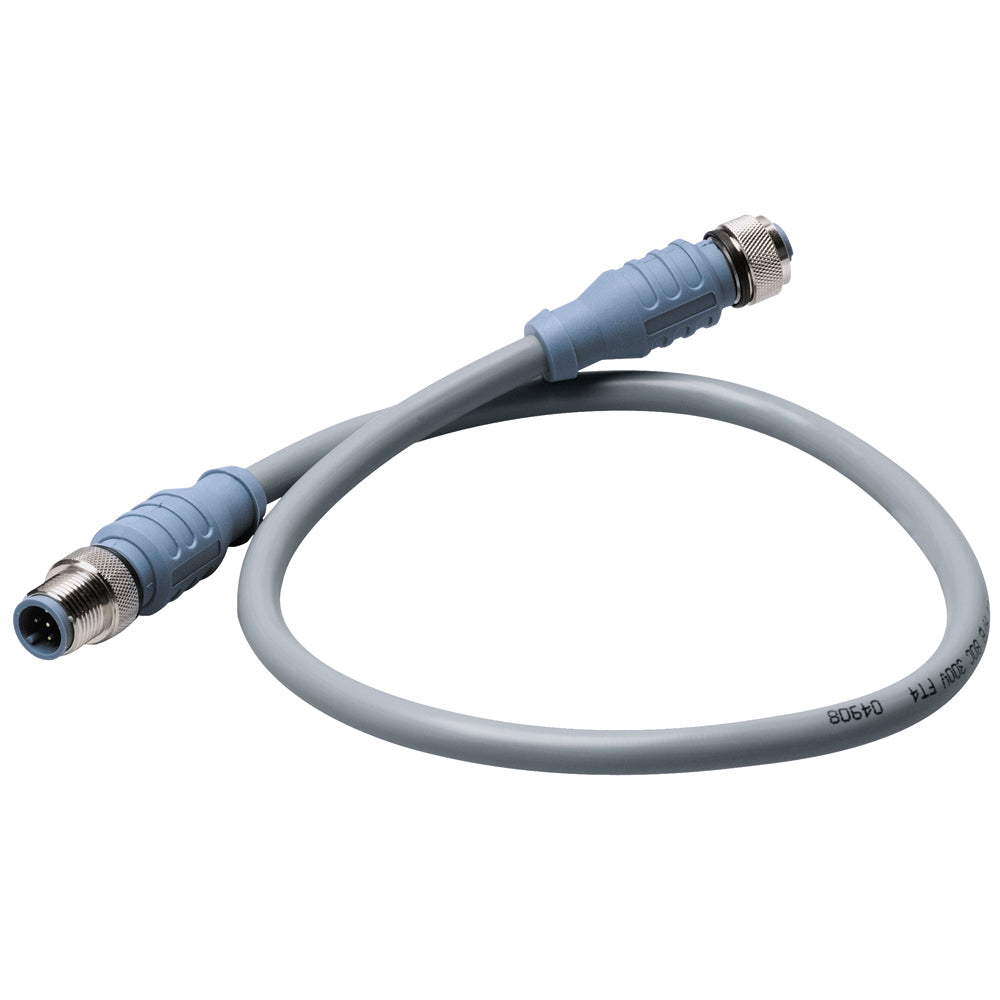

Maretron CM-CG1-CF-06.0 Micro Double-Ended Cordset, 6 Meter, IP68 Waterproof with 4 Conductors and Gold-Plated Brass Connectors

The Maretron CM-CG1-CF-06.0 Micro Double-Ended Cordset is a reliable 6-meter (approximately 20 feet) cable designed for demanding marine and industrial applications. Featuring a robust construction with thermoplastic polyurethane (PUR) contact and molded bodies in blue-gray, this cordset ensures durability and resistance to harsh environments. The brass contact carriers are gold-plated for optimal conductivity and corrosion resistance, complemented by nickel-plated coupling nuts for secure connections. Its compact connector outside diameter of just 0.59 inches makes it suitable for tight spaces and complex wiring setups. The cable is rated for 4.0 amps and up to 250 volts, making it ideal for power and data transmission in critical systems. The outer jacket, made from gray PVC, provides additional environmental protection, while the internal conductors are insulated with high-density polyethylene (HDPE) for data pairs and SRPVC for power pairs, ensuring signal integrity and safety. Multiple shielding layers, including foil shields over overall, power, and data pairs, offer excellent electromagnetic interference (EMI) protection, essential for sensitive data and high-current applications. The cordset meets stringent environmental standards with an IP68 protection rating, making it dustproof and waterproof, suitable for submersion and exposure to water, and complies with NEMA 1, 3, 4, and 6P standards for various industrial enclosures. It operates reliably within temperatures from -40°F to 176°F (-40°C to 80°C). Certified by UL and CSA, the Maretron Micro Double-Ended Cordset is also NMEA 2000 approved, confirming its compatibility with marine data networks. This versatile cordset is an excellent choice for secure, high-performance connections in marine, industrial, and outdoor environments.

Features:

• Contact Carrier Mat: Thermoplastic PUR, Blue-Gray

• Molded Body Mat: Thermoplastic PUR, Blue-Gray

• Contact Plating: Brass with Gold finish for optimal conductivity

• Coupling Nut Plating: Brass with Nickel coating for durability

• Connector Outside Diameter: 0.59 inches

• Current Rating: 4.0 Amps

• Voltage Rating: 250 V

• Outer Jacket: Gray PVC for environmental protection

• Conductor Insulation: HDPE for data pairs, SRPVC for power pairs

• Number of Conductors: 4 x 22 AWG plus 22 AWG drain wire

• Shielding: Three levels of foil shielding over overall, power, and data pairs

• Protection Class: IP68 waterproof, NEMA 1, 3, 4, 6P

• Temperature Range: -40°F to 176°F

• Certifications: UL, CSA, NMEA 2000 approved
