SKU:33360

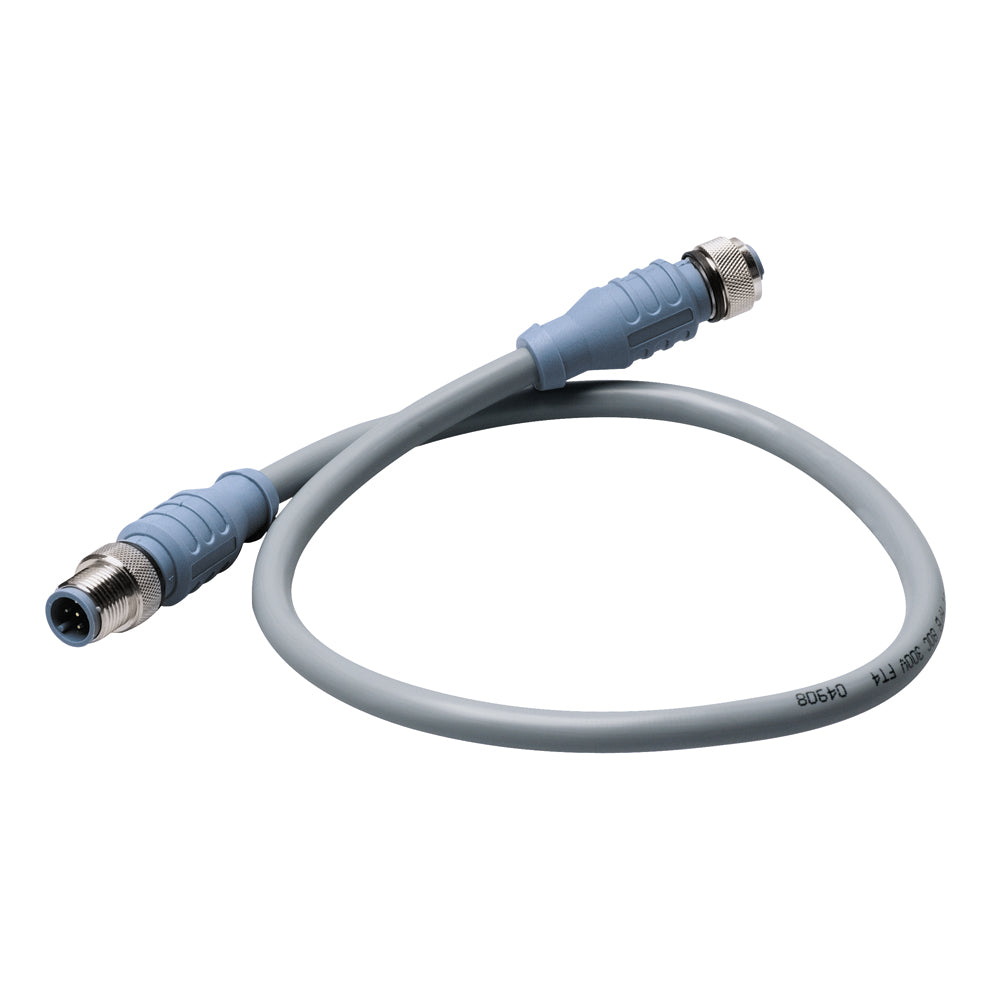

Maretron CM-CG1-CF-08.0 Micro Double-Ended Cordset, 8M - Marine Data and Power Cable

Maretron CM-CG1-CF-08.0 Micro Double-Ended Cordset, 8M - Marine Data and Power Cable

Regular price $55.99 USD
Sale price $55.99 USD Regular price
Sale Sold out
Shipping calculated at checkout.
Mechanical
  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V
    Cable
  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
  • Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
  • Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
    Environmental
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
    Approvals
  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80C 300V FT4
  • NMEA: NMEA 2000 Approved
  • The Maretron CM-CG1-CF-08.0 Micro Double-Ended Cordset is designed for reliable data and power transmission in demanding marine environments. Featuring a durable thermoplastic PUR contact carrier and molded body in blue-gray, this cordset ensures long-lasting performance and resistance to harsh conditions. The brass contact and coupling nut, plated with gold and nickel respectively, provide excellent corrosion resistance and secure connections. With an outside diameter of approximately 0.59 inches, the connector supports a current rating of 4.0 amps and a voltage rating of up to 250 volts, making it suitable for a variety of marine electronic applications. The cable assembly includes four 22 AWG conductors with high-quality HDPE insulation for data pairs and SRPVC insulation for power pairs, ensuring signal integrity and durability. The shielding system incorporates three levels of foil shielding—overall, power pair, and data pair—providing excellent EMI/RFI immunity to maintain data integrity in noisy environments. The outer jacket is made of gray PVC, offering additional protection against environmental elements. Certified to meet IEC IP68 standards and compliant with NEMA 1, 3, 4, and 6P enclosures, this cordset is built to withstand water immersion and exposure to dust, dirt, and moisture. Operating effectively across a temperature range from -40°F to 176°F, it is suitable for a wide range of marine conditions. Approved by UL and CSA, this cable meets rigorous safety standards, including UL's PLTC 75°C Sunlight Resistance and AWM 80°C ratings, and is certified as NMEA 2000 compatible, ensuring seamless integration into marine communication networks. Whether used for sensor connections, communication lines, or power distribution, this 8-meter (approximately 26.2 feet) cordset provides a robust, weather-resistant solution for marine electronics installations.

    Features:

    • Contact Carrier Mat/Color: Thermoplastic PUR in Blue-Gray for durability
    • Molded Body Mat/Color: Thermoplastic PUR in Blue-Gray for environmental resistance
    • Contact Mat/Plating: Brass with Gold plating for corrosion resistance
    • Coupling Nut Mat/Plating: Brass with Nickel plating for secure connections
    • Connector Outside Diameter: 0.59 inches for compatibility with marine connectors
    • Current Rating: 4.0 Amps suitable for various electronic devices
    • Voltage Rating: 250 V for high-power applications
    • Outer Jacket Material: PVC in Gray for weatherproofing
    • Conductor Insulation: HDPE for data pairs and SRPVC for power pairs ensuring signal integrity
    • Number of Conductors: Four 22 AWG conductors plus a drain wire for comprehensive connectivity
    • Shielding: Three levels of foil shielding (overall, power, data) for EMI/RFI protection
    • Protection Class: IEC IP68 and NEMA 1, 3, 4, 6P for water and dust resistance
    • Temperature Range: -40°F to 176°F for reliable operation in extreme conditions
    • Certifications: UL, CSA, and NMEA 2000 approved for safety and compatibility

    Only 8 piece in stock!
