SKU:31801

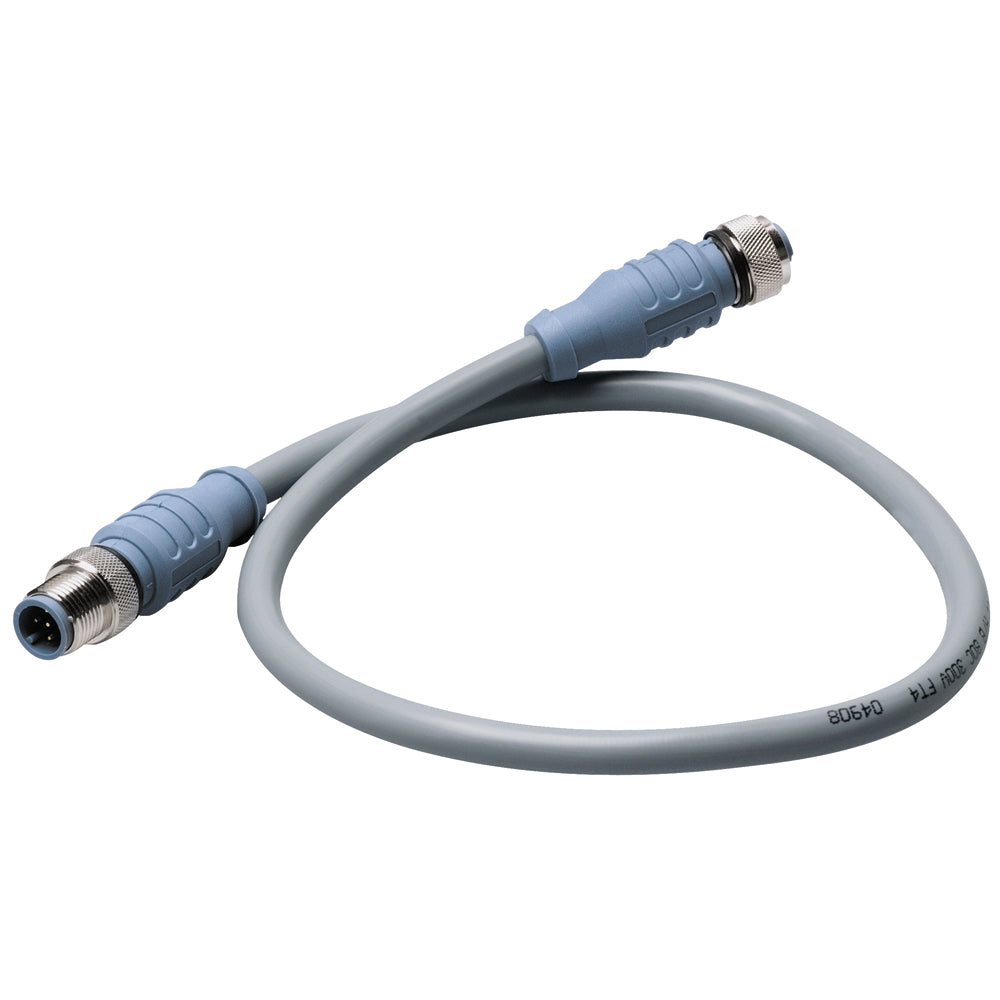

Maretron CM-CG1-CF-10.0 Micro Double-Ended Cordset - 10 Meter for Marine and Industrial Applications

Maretron CM-CG1-CF-10.0 Micro Double-Ended Cordset - 10 Meter for Marine and Industrial Applications

Regular price $59.99 USD
Sale price $59.99 USD Regular price
Sale Sold out
Shipping calculated at checkout.
Mechanical
  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59"
    Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V
    Cable
  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
  • Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
  • Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
    Environmental
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
    Approvals
  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625,
    AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C,
    AWM I/II A/B 80C 300V FT4
  • NMEA: NMEA 2000 Approved
  • The Maretron CM-CG1-CF-10.0 Micro Double-Ended Cordset is designed for reliable data and power transmission in demanding marine and industrial environments. This 10-meter cordset features a durable construction with high-quality materials to ensure long-lasting performance. The outer jacket is made from gray PVC, providing excellent resistance to environmental factors such as moisture, UV exposure, and temperature extremes, making it suitable for outdoor applications. The cable includes four 22 AWG conductors for power and data, each insulated with HDPE or SRPVC, and is shielded with three levels of foil to minimize electromagnetic interference. This shielding ensures signal integrity even in electrically noisy environments, which is critical for sensitive data and power connections. The connector boasts a compact 0.59-inch outside diameter, featuring brass contact carriers with gold plating for reliable electrical contact and corrosion resistance. The coupling nut is also brass with nickel plating, facilitating secure and easy connections. The cordset is rated for 4.0 amps and up to 250 volts, meeting various electrical standards. It is certified for outdoor use under UL and CSA standards, including UL’s PLTC 75°C sunlight-resistant rating and CSA’s outdoor specifications, ensuring compliance with safety and durability requirements. The Maretron Micro Double-Ended Cordset is NMEA 2000 approved, making it an ideal choice for marine networking systems. Its robust environmental protection class (IP68, NEMA 1,3,4,6P) guarantees resistance to water intrusion, dust, and harsh conditions, while operating efficiently across a temperature range from -40°C to 80°C (-40°F to 176°F). Whether for connecting sensors, networking equipment, or power supplies, this cordset offers the durability, reliability, and performance necessary for critical applications in challenging environments.

    Features:

    • Contact Carrier Material: Thermoplastic PUR with blue-gray color for durability
    • Molded Body Material: Thermoplastic PUR with blue-gray color for resilience
    • Contact Plating: Brass with gold plating for reliable electrical contact
    • Coupling Nut Material: Brass with nickel plating for secure connection
    • Connector Outside Diameter: 0.59 inches for compact installation
    • Current Rating: 4.0 Amps suitable for various power and data needs
    • Voltage Rating: 250 Volts meeting standard electrical safety requirements
    • Outer Jacket Material: Gray PVC providing environmental resistance
    • Conductor Insulation: HDPE for data pairs and SRPVC for power pairs for enhanced protection
    • Number of Conductors: Four 22 AWG conductors with additional drain wire for grounding
    • Shielding: Triple-layer foil shielding for interference protection
    • Protection Class: IP68, NEMA 1,3,4,6P for water, dust, and environmental resistance
    • Temperature Range: -40°C to 80°C (-40°F to 176°F) for versatile outdoor and industrial use
    • Certifications: UL, CSA, and NMEA 2000 approval ensuring compliance and safety standards

    38 in stock


    View full details
