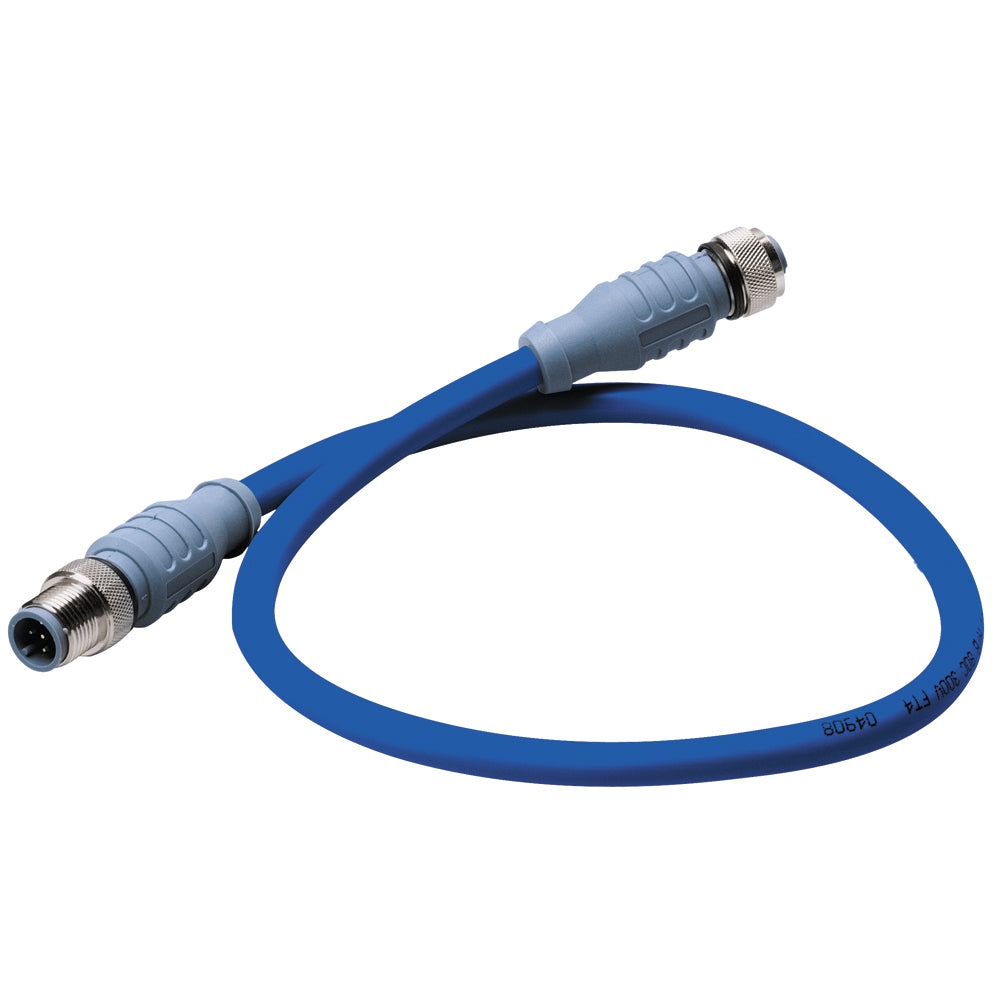

Maretron DM-DB1-DF-00.5 Mid Double-Ended Cordset - 0.5 Meter, Blue

Maretron Mid Double-Ended Cordset - 0.5 M Blue

Mechanical:

• Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
• Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
• Contact Mat/Plating: Brass/Gold
• Coupling Nut Mat/Plating: Brass/Nickel
• Connector Outside Diameter: 0.59

  Electrical
• Current Rating: 4.0 Amps
• Voltage Rating: 250 V

  Cable
• Outer Jacket Mat/Color: PVC/Gray
• Conductor Insulation Material: PE (data pair), PVC (power pair)
• Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
• Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)

  ENVIRONMENTAL
• Protection Class: IEC IP68, NEMA 1,3,4,6P
• Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)

  APPROVALS
• (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
• (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
• NMEA: NMEA 2000 Approved
• IEC: IEC 61162-3

The Maretron DM-DB1-DF-00.5 Mid Double-Ended Cordset provides a reliable connection solution for marine and industrial applications. Designed with a durable thermoplastic PUR body in blue-gray, it features brass contacts with gold plating for optimal conductivity and corrosion resistance. The coupling nut is constructed from brass with a nickel finish, ensuring secure and stable connections even in demanding environments. Its compact connector outside diameter of approximately 0.59 inches makes it suitable for tight spaces while maintaining robust electrical performance. The cordset supports a current rating of 4.0 amps and a voltage rating of 250 volts, making it suitable for various power and data transfer needs. The cable’s outer jacket is made of gray PVC, offering excellent protection against environmental factors, while the conductor insulation utilizes PE for data pairs and PVC for power pairs, ensuring signal integrity. The cable contains two data pairs and a drain wire, each with 20 AWG gauge, and is shielded with three levels of foil shielding—overall, power, and data—providing excellent EMI/RFI protection. It is rated for outdoor use with an IEC IP68 protection class, and complies with NEMA 1, 3, 4, and 6P standards, making it suitable for harsh environments. The temperature range spans from -40°C to 80°C (-40°F to 176°F), ensuring reliable operation across a wide spectrum of conditions. The cordset is certified by UL under PLTC 75°C sunlight-resistant and AWM 80°C 300V standards, as well as CSA certifications including CMX-OUTDOOR-CMG and AWM ratings. It is also NMEA 2000 approved and compliant with IEC 61162-3 standards, confirming its compatibility with marine communication systems. This versatile cordset is ideal for connecting sensors, instruments, and other electronic components in maritime and industrial settings, offering durability, safety, and high performance in a compact form factor.

Features:

• Durable thermoplastic PUR body with blue-gray finish for reliable marine and industrial use

• Brass contacts with gold plating for optimal electrical conductivity and corrosion resistance

• Brass coupling nut with nickel plating ensures secure connection

• Supports current rating of 4.0 amps and voltage of 250 volts for versatile power and data transfer

• Gray PVC outer jacket provides excellent environmental protection

• Conductor insulation uses PE for data pairs and PVC for power pairs to maintain signal integrity

• Includes two data pairs (20 AWG) and a drain wire (20 AWG) with foil shielding for EMI/RFI protection

• Rated for outdoor use with IEC IP68, NEMA 1, 3, 4, 6P protection classes

• Temperature range from -40°C to 80°C (-40°F to 176°F) for wide operational conditions

• Certified by UL and CSA, NMEA 2000 approved, and compliant with IEC 61162-3 standards
