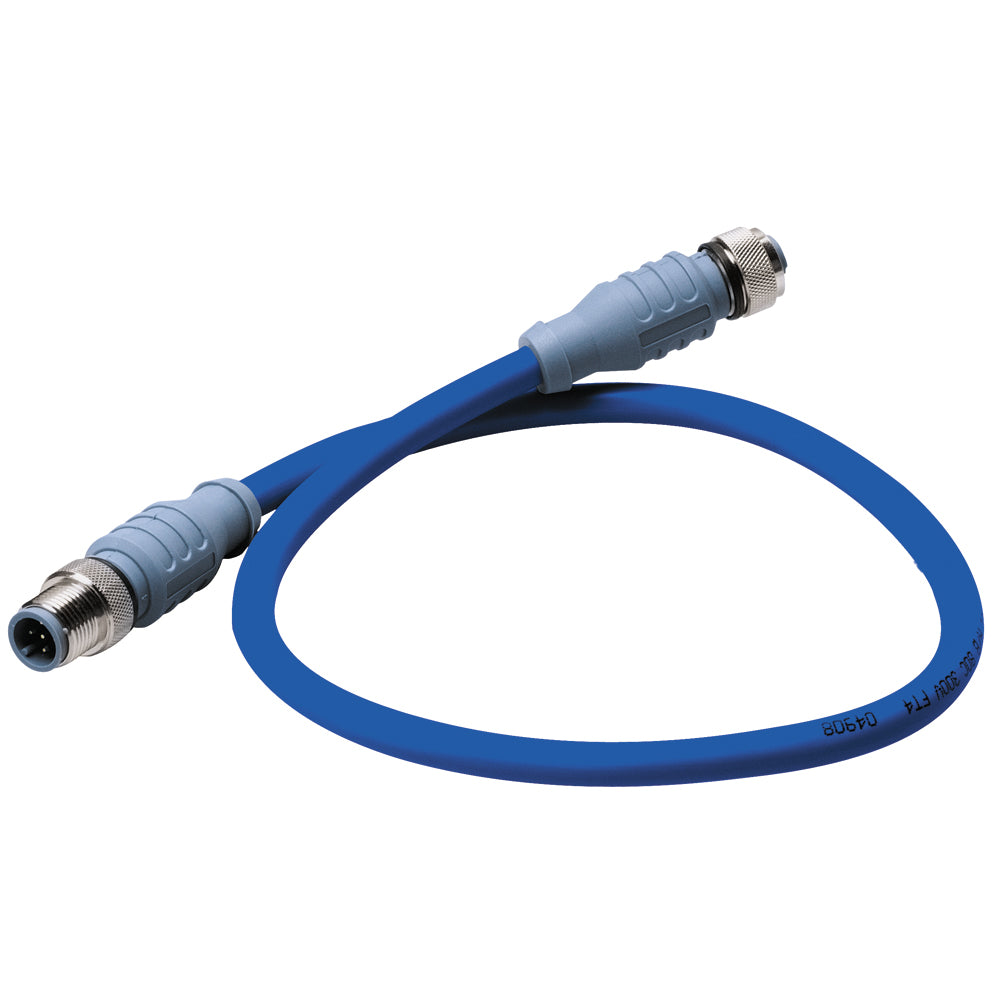

Maretron DM-DB1-DF-02.0 Mid Double-Ended Cordset – 2 Meter, Blue

Maretron Mid Double-Ended Cordset - 2 M Blue

Mechanical:

• Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
• Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
• Contact Mat/Plating: Brass/Gold
• Coupling Nut Mat/Plating: Brass/Nickel
• Connector Outside Diameter: 0.59

  Electrical
• Current Rating: 4.0 Amps
• Voltage Rating: 250 V

  Cable


• Outer Jacket Mat/Color: PVC/Gray
• Conductor Insulation Material: PE (data pair), PVC (power pair)
• Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
• Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)

  ENVIRONMENTAL
• Protection Class: IEC IP68, NEMA 1,3,4,6P
• Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)

  APPROVALS
• (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
• (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
• NMEA: NMEA 2000 Approved
• IEC: IEC 61162-3

The Maretron DM-DB1-DF-02.0 is a high-quality 2-meter double-ended cordset designed for reliable data and power connections in marine, industrial, and commercial applications. Featuring a durable PVC outer jacket in gray and a blue thermoplastic PUR contact carrier, this cordset offers excellent environmental resistance and flexibility. Its rugged molded body ensures secure connections, while the brass contacts with gold plating provide superior conductivity and corrosion resistance. The coupling nut made of brass with nickel plating ensures a tight, secure fit, preventing accidental disconnection during operation. This cordset is suitable for environments requiring protection up to IEC IP68 and NEMA ratings 1, 3, 4, and 6P, making it ideal for harsh conditions involving water, dust, and moisture exposure. The cable supports a maximum current of 4 Amps and voltage of 250V, making it suitable for power and data transfer applications. The internal wiring includes 2x16 AWG data conductors, 2x20 AWG power conductors, and a drain wire, all shielded with triple-layer foil shielding to minimize electromagnetic interference and ensure signal integrity. Certified for use in marine environments, it complies with NMEA 2000, IEC 61162-3, and UL and CSA standards, including sunlight-resistant and high-temperature ratings up to 176°F. The cordset's compact connector diameter of approximately 0.59 inches facilitates easy installation in tight spaces, maintaining reliable performance in demanding conditions. Designed for professionals requiring durable, certified, and environmentally resistant connections, this Maretron cordset offers exceptional reliability and ease of use for integrating various electronic systems onboard vessels or industrial setups.

Features:

• Durable PVC outer jacket with gray color enhances environmental resistance

• Brass contacts with gold plating ensure corrosion resistance and optimal conductivity

• Secure brass coupling nut with nickel plating for tight connection

• Supports up to 4 Amps and 250V for versatile power and data transfer

• Triple-layer foil shielding minimizes electromagnetic interference

• Meets IEC IP68, NEMA 1, 3, 4, 6P protection standards for harsh environments

• Certified for NMEA 2000, IEC 61162-3, UL, and CSA standards

• Compact connector diameter of approximately 0.59 inches allows installation in tight spaces

• Temperature range from -40°F to 176°F ensures reliable performance in extreme conditions
