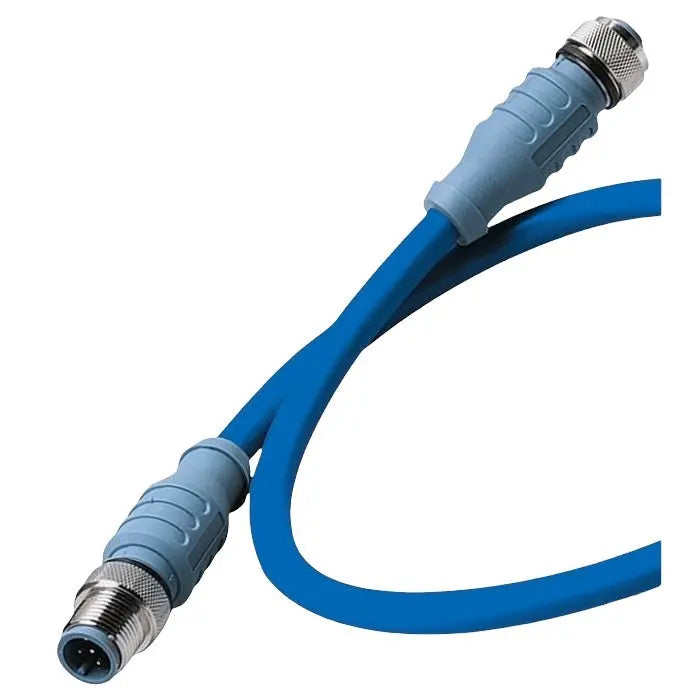

Maretron DM-DB1-DF-03.0 Blue Mid 3-Meter Marine Cable with Waterproof Connectors

Maretron Blue Mid Cable 3M Male To Female Connector

The Maretron DM-DB1-DF-03.0 Blue Mid 3-Meter Marine Cable is designed for reliable connectivity in demanding marine environments. Featuring rugged, IP68-rated waterproof connectors, this double-ended cordset ensures secure and continuous connections even when submerged, making it ideal for trunk or drop line installations. The connectors are keyed for error-free connection, simplifying installation and reducing setup time. This cable is optimized for voltage drop-sensitive networks, especially for longer runs, as its power pair wires have half the resistance of standard Micro cables, ensuring efficient power delivery across your marine system.
The cable's construction includes a durable thermoplastic PUR outer jacket in blue, providing excellent environmental protection. It contains multiple conductors: two data pairs of 16 AWG and 20 AWG, along with a drain wire, all insulated with PVC and PE materials to prevent interference. The shielding system incorporates three layers of foil for overall, power, and data pair shielding, ensuring signal integrity in noisy environments. The cable is rated for a maximum current of 4 amps and a voltage of up to 250 volts, meeting industry standards for marine applications.
Designed with environmental resilience in mind, this cable conforms to IEC IP68 protection class and is rated for operation from -40°F to 176°F. It is approved by UL, CSA, and NMEA 2000® standards, guaranteeing compliance with rigorous safety and performance requirements. The compact 0.59-inch diameter connector body is suitable for tight spaces on boats and ships. Whether used for data, power, or sensor connections, the Maretron DM-DB1-DF-03.0 provides a reliable, waterproof link for your marine electronics setup, ensuring durability and performance in harsh marine environments.

Features:

• Rugged, IP68-rated waterproof connectors ensure secure, corrosion-resistant connections even when submerged

• Optimized for long cable runs with power wires having half the resistance of standard Micro cables

• Durable thermoplastic PUR outer jacket in blue for environmental protection

• Multiple conductors with PVC and PE insulation for noise immunity and signal integrity

• Three-layer foil shielding for enhanced EMI protection

• Rated for 4 amps and 250 volts, suitable for power and data transmission

• Compact 0.59-inch diameter connectors for tight marine spaces

• Conforms to IEC IP68, NEMA 1,3,4,6P standards, rated for -40°F to 176°F operation

• UL and CSA approved, with NMEA 2000® and IEC 61162-3 compliance for marine communication standards
