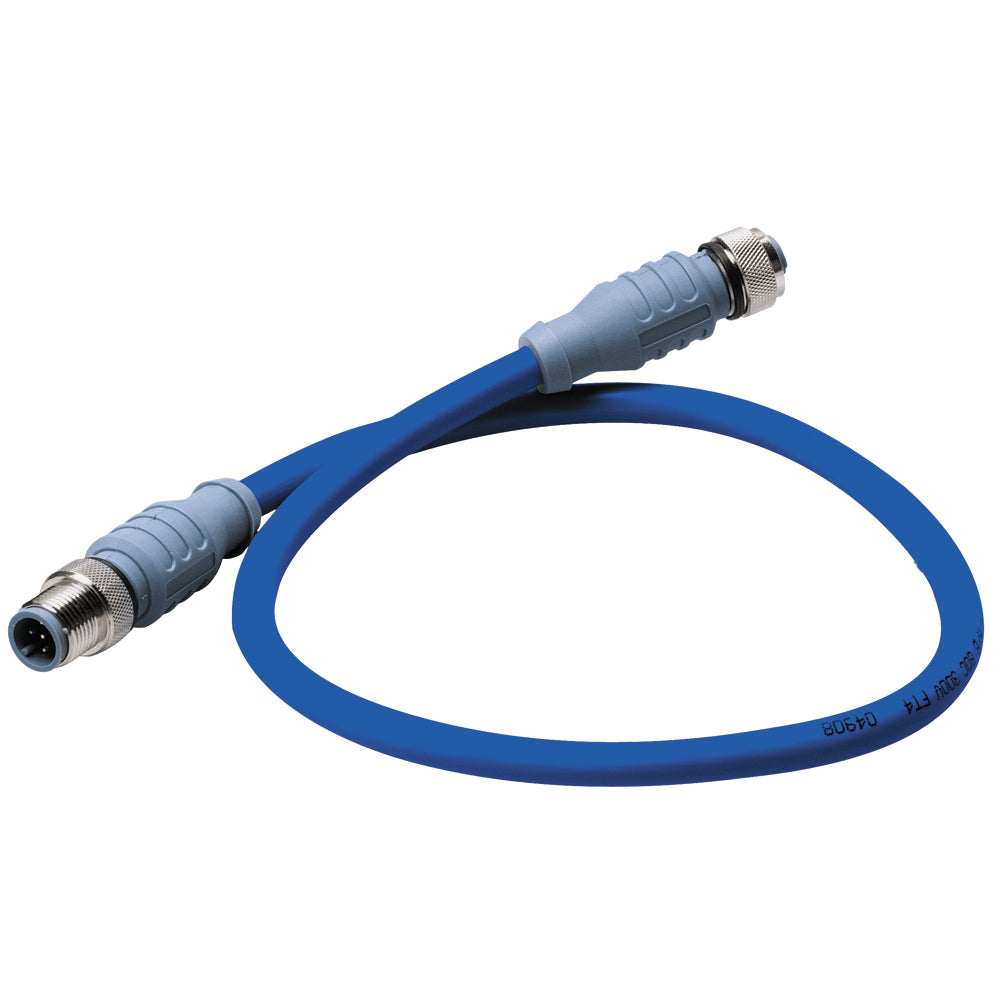

Maretron DM-DB1-DF-03.0 Mid Double-Ended Cordset - 3 Meter Blue

Maretron Mid Double-Ended Cordset - 3 M Blue

Mechanical:

• Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
• Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
• Contact Mat/Plating: Brass/Gold
• Coupling Nut Mat/Plating: Brass/Nickel
• Connector Outside Diameter: 0.59

  Electrical
• Current Rating: 4.0 Amps
• Voltage Rating: 250 V

  Cable


• Outer Jacket Mat/Color: PVC/Gray
• Conductor Insulation Material: PE (data pair), PVC (power pair)
• Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
• Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)

  ENVIRONMENTAL
• Protection Class: IEC IP68, NEMA 1,3,4,6P
• Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)

  APPROVALS
• (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
• (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
• NMEA: NMEA 2000 Approved
• IEC: IEC 61162-3

The Maretron DM-DB1-DF-03.0 is a high-quality 3-meter blue double-ended cordset designed for reliable marine and industrial applications. It features a durable thermoplastic PUR contact carrier and molded body with a blue-gray color, ensuring durability and ease of identification in complex wiring environments. The brass contact surfaces are plated with gold for optimal conductivity and corrosion resistance, while the coupling nuts are brass with nickel plating to provide a secure connection and long-term stability. The connector outside diameter measures approximately 0.59 inches, making it suitable for various installation scenarios. This cordset is rated for 4.0 amps and up to 250 volts, supporting a wide range of electrical needs for data and power transmission. The cable boasts an outer PVC jacket in gray, with conductors insulated using PE (for data pairs) and PVC (for power pairs), ensuring signal integrity and safety. It contains 2x16 AWG conductors for power, 2x20 AWG for data, and a 20 AWG drain wire, with triple-layer shielding—foil over the entire cable, and individual foils for power and data pairs—to minimize electromagnetic interference. The Maretron cordset complies with environmental standards including IEC IP68 and NEMA 1, 3, 4, 6P, providing excellent protection against dust, water, and harsh conditions. It is rated for operating temperatures from -40°C to 80°C (-40°F to 176°F). Certified by UL and CSA, the cable is sunlight resistant and rated for outdoor use, with certifications including UL PLTC 75°C and AWM 80°C 300V, and is approved under NMEA 2000 and IEC 61162-3 standards, ensuring compatibility with marine communication systems. Designed for durability and reliability, the Maretron DM-DB1-DF-03.0 cordset is ideal for demanding environments where secure and stable connections are essential.

Features:

• Durable thermoplastic PUR contact carrier and molded body for long-lasting performance

• Gold-plated brass contacts for optimal electrical conductivity and resistance to corrosion

• Brass coupling nuts with nickel plating for secure connections

• Rated for 4.0 amps and 250 volts for versatile electrical applications

• Gray PVC outer jacket with insulated conductors using PE and PVC materials

• Includes 2 power conductors, 2 data conductors, and a drain wire for comprehensive wiring needs

• Triple-layer shielding with foil over the entire cable and individual foils for power and data pairs

• Weatherproof design with IEC IP68 and NEMA 6P ratings for outdoor and harsh environment use

• Operational temperature range from -40°C to 80°C (-40°F to 176°F) for reliable performance in diverse conditions

• Certified by UL, CSA, NMEA 2000, and IEC standards for safety, compatibility, and outdoor durability
