SKU:47021

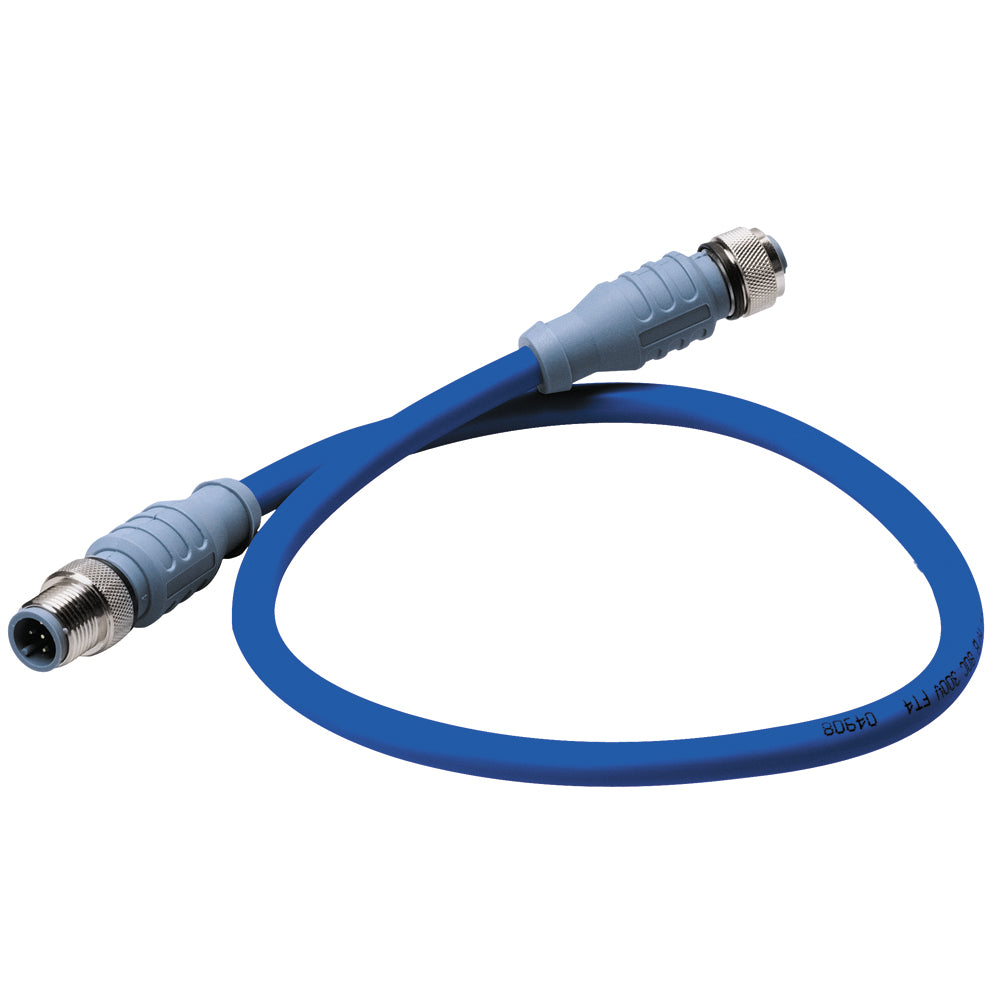

The Maretron DM-DB1-DF 10 Meter Mid Double-Ended Cordset provides reliable and high-quality connectivity for marine electronic systems. Designed with durable thermoplastic PUR contact carriers and molded bodies in a sleek blue-gray color, this cable ensures long-term performance in demanding marine environments. The brass contact plating with gold and nickel-plated coupling nuts guarantees excellent electrical conductivity and corrosion resistance, making it ideal for critical data and power connections on boats and yachts. With a connector outside diameter of 0.59 inches, it fits seamlessly into standard marine setups, providing a secure and stable connection.
Engineered for both data and power transmission, this cordset supports a current rating of 4.0 amps and a voltage rating of 250 volts. The cable features a gray PVC outer jacket for protection against environmental factors, with conductor insulation made of PE for data pairs and PVC for power pairs. It incorporates multiple layers of shielding—foil shielding over the entire cable and for individual data and power pairs—to minimize electromagnetic interference and ensure signal integrity. The cable contains two data pairs and one power pair, each with 20 AWG conductors, as well as a drain wire for grounding, making it suitable for complex marine electronic systems.
Built to meet rigorous environmental standards, the cordset is rated IEC IP68 and complies with NEMA 1, 3, 4, and 6P protection classes. It operates effectively across a temperature range from -40°C to 80°C (-40°F to 176°F), ensuring durability under extreme conditions. Certified for safety and performance, this product is UL and CSA approved, with certifications including UL PLTC 75°C, sunlight resistance, and AWM 80°C, 300V ratings. It is also NMEA 2000 approved and complies with IEC 61162-3 standards, making it a dependable choice for marine instrumentation systems that require robust, waterproof, and interference-resistant connections.
