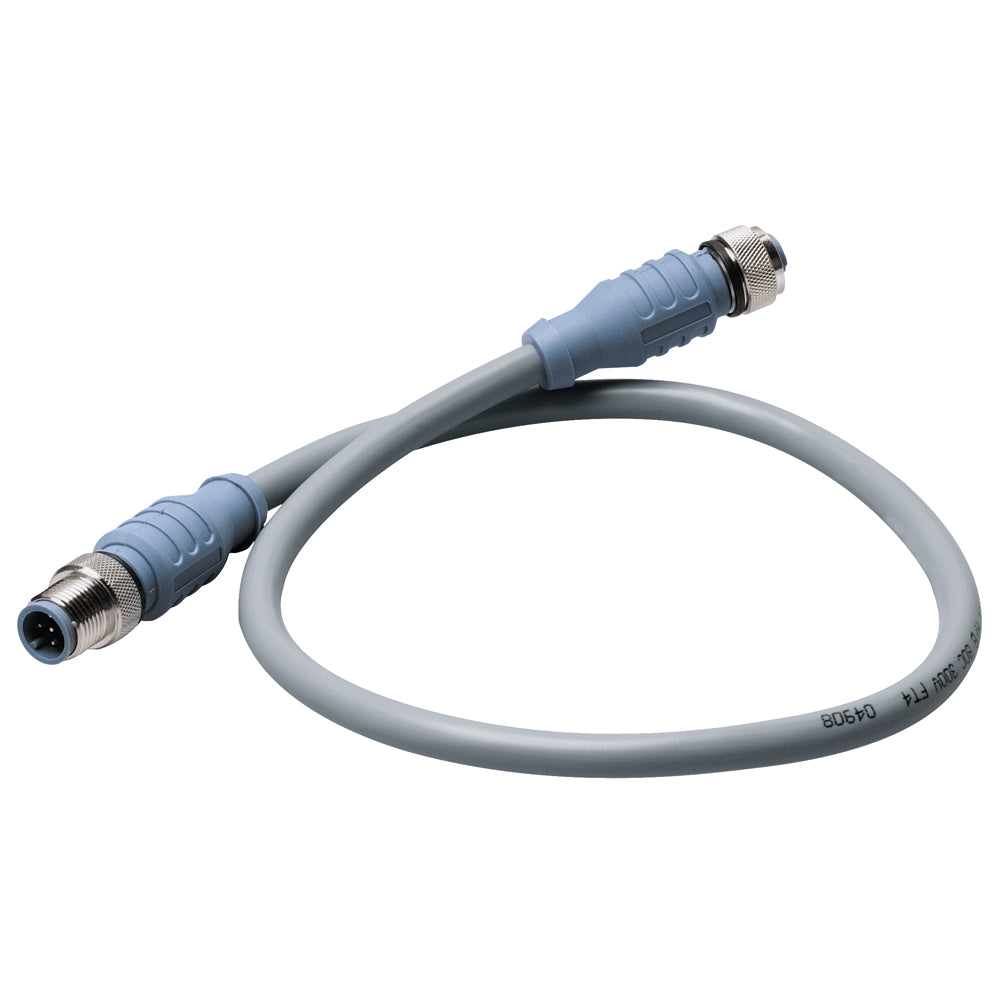

Maretron DM-DG1-DF-00.5 0.5 Meter Gray Mid Double-Ended Cordset for Marine and Industrial Applications

Maretron Mid Double-Ended Cordset - 0.5M Gray

Mechanical:

• Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
• Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
• Contact Mat/Plating: Brass/Gold
• Coupling Nut Mat/Plating: Brass/Nickel
• Connector Outside Diameter: 0.59

  Electrical
• Current Rating: 4.0 Amps
• Voltage Rating: 250 V

  Cable
• Outer Jacket Mat/Color: PVC/Gray
• Conductor Insulation Material: PE (data pair), PVC (power pair)
• Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
• Shielding (3 Levels): Alum/Polyester Foil (Overall), Foil (Power Pair), Foil (Data Pair)

  ENVIRONMENTAL
• Protection Class: IEC IP68, NEMA 1,3,4,6P
• Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)

  APPROVALS
• (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
• (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
• NMEA: NMEA 2000 Approved
• IEC: IEC 61162-3

The Maretron DM-DG1-DF-00.5 is a high-quality, 0.5-meter gray mid double-ended cordset designed for reliable electrical connections in marine and industrial environments. Constructed with durable thermoplastic PUR contact carriers and molded bodies in a matching blue-gray color, this cordset ensures longevity and resistance to harsh conditions. The brass contacts with gold plating provide excellent conductivity and corrosion resistance, while the brass nickel-plated coupling nuts facilitate secure connections. Its compact connector outside diameter of 0.59 inches makes it suitable for tight spaces.
Built for versatility, this cordset features a current rating of 4.0 amps and a voltage rating of 250 volts, supporting various data and power transmission needs. The cable's outer PVC jacket in gray offers protection against environmental elements, and the conductors include two data pairs (16 AWG) and a power pair (20 AWG), along with a drain wire for shielding. The cable's design incorporates three levels of shielding—overall aluminum/polyester foil, foil for the power pair, and foil for data pairs—to minimize electromagnetic interference and ensure signal integrity.
The Maretron cordset meets rigorous environmental standards with an IEC IP68 protection rating, suitable for submersion and exposure to dust, water, and harsh conditions. It operates effectively across a temperature range from -40°C to 80°C (-40°F to 176°F), making it ideal for demanding applications. Certified under UL, CSA, and IEC standards, this cordset is also NMEA 2000 approved, ensuring compliance with marine communication protocols. Its robust construction and broad environmental certifications make it a dependable choice for marine, industrial, and outdoor installations.

Features:

• Durable thermoplastic PUR contact carriers and molded bodies in blue-gray color for long-lasting performance

• Brass contacts with gold plating for corrosion resistance and optimal conductivity

• Brass nickel-plated coupling nuts for secure and reliable connections

• Supports up to 4.0 amps current and 250 volts voltage

• Shielded cable with aluminum/polyester foil to minimize electromagnetic interference

• Outer PVC jacket in gray provides environmental protection

• Designed for harsh conditions with an IP68 rating and temperature tolerance from -40°C to 80°C

• Certified by UL, CSA, and IEC standards, including NMEA 2000 approval for marine communication
