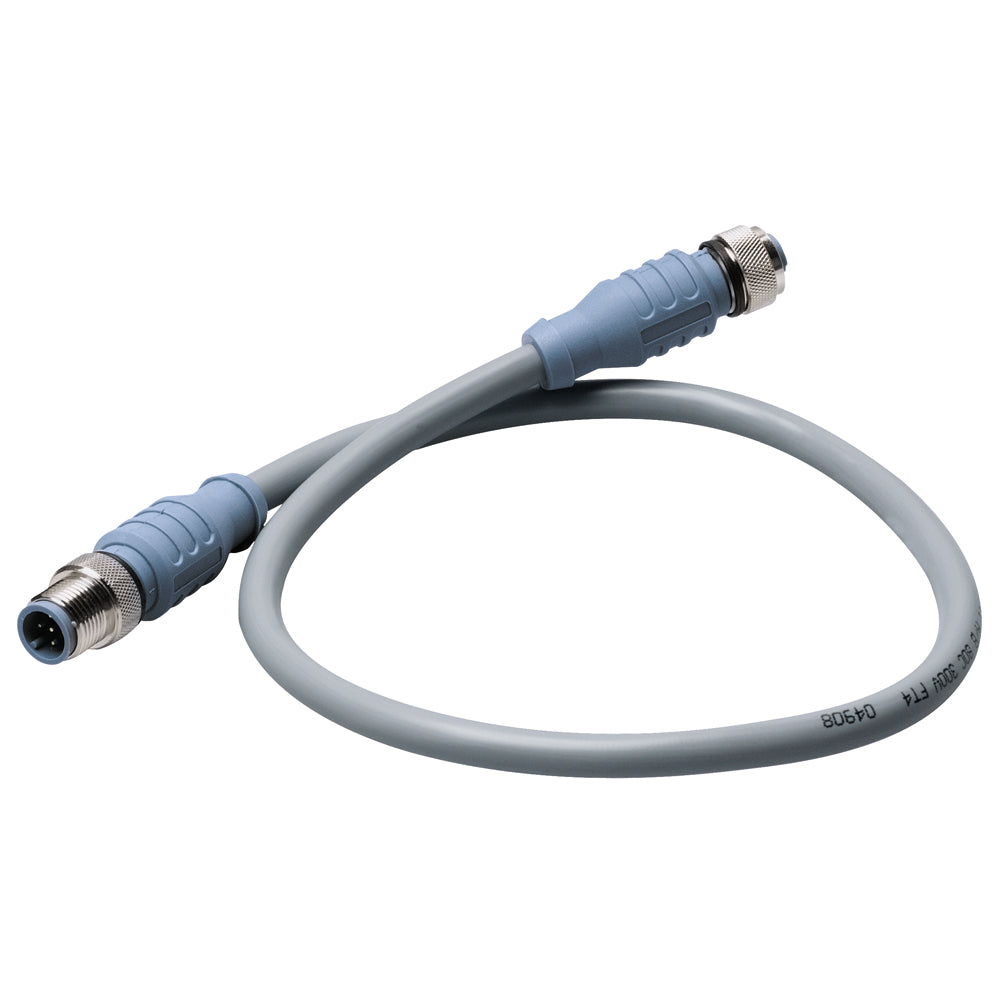

Maretron DM-DG1-DF-03.0 Mid Double-Ended Cordset, 3 M - Gray

Maretron Mid Double-Ended Cordset - 3 M Gray

Mechanical:

• Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
• Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
• Contact Mat/Plating: Brass/Gold
• Coupling Nut Mat/Plating: Brass/Nickel
• Connector Outside Diameter: 0.59

  Electrical
• Current Rating: 4.0 Amps
• Voltage Rating: 250 V

  Cable


• Outer Jacket Mat/Color: PVC/Gray
• Conductor Insulation Material: PE (data pair), PVC (power pair)
• Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
• Shielding (3 Levels): Alum/Polyester Foil (Overall), Foil (Power Pair), Foil (Data Pair)

  ENVIRONMENTAL
• Protection Class: IEC IP68, NEMA 1,3,4,6P
• Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)

  APPROVALS
• (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
• (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
• NMEA: NMEA 2000 Approved
• IEC: IEC 61162-3

The Maretron DM-DG1-DF-03.0 Mid Double-Ended Cordset offers reliable electrical connectivity for marine and industrial applications. Designed with durable materials, this 3-meter gray cordset features a molded thermoplastic PUR body with a blue-gray finish, ensuring resistance to harsh environments. The contact carriers are brass with gold plating, providing excellent conductivity and corrosion resistance. The coupling nut is brass with nickel plating, facilitating secure connections. With a connector outside diameter of 0.59 inches, this cordset is engineered for ease of installation and robust performance.
Electrical specifications include a current rating of 4.0 amps and a voltage rating of up to 250 volts, making it suitable for power and data transmission. The cable is insulated with PE for data conductors and PVC for power conductors, with a shielded design comprising three levels of shielding: aluminum/polyester foil overall, and foil shields for power and data pairs. The cable contains 2x16 AWG data conductors, 2x20 AWG power conductors, and a 20 AWG drain wire, ensuring efficient signal integrity and power delivery. The outer jacket is gray PVC, providing additional environmental protection.
This cordset meets multiple environmental standards, including IEC IP68 and NEMA 1, 3, 4, 6P, ensuring resistance to dust, water, and chemical exposure. It operates within a temperature range of -40°C to 80°C (-40°F to 176°F). The Maretron cordset is approved by UL (PLTC 75°C, sunlight resistant), CSA (CMX-OUTDOOR-CMG, AWM 80°C), and is NMEA 2000 and IEC 61162-3 compliant, confirming its suitability for marine networking and communication systems. Its rugged construction and comprehensive certification make it an ideal choice for demanding environments requiring secure and stable connections.
Designed for professional use, this Maretron cordset combines durability, safety, and high performance, ensuring seamless integration in your marine or industrial wiring setup.

Features:

• Mechanical: Contact carriers made of brass with gold plating for optimal conductivity and corrosion resistance

• Mechanical: Molded thermoplastic PUR body in blue-gray finish for durability and environmental resistance

• Electrical: Current rating of 4.0 amps and voltage rating of 250 volts for versatile power and data applications

• Cable: Shielded design with three levels of shielding including aluminum/polyester foil for signal integrity

• Cable: Outer jacket made of gray PVC providing environmental protection and flexibility

• Environmental: Meets IEC IP68, NEMA 1, 3, 4, 6P standards for dust, water, and chemical resistance

• Environmental: Operating temperature range from -40°C to 80°C (-40°F to 176°F) for demanding environments

• Certifications: UL, CSA, NMEA 2000, and IEC 61162-3 approval for safety and compatibility in marine systems
