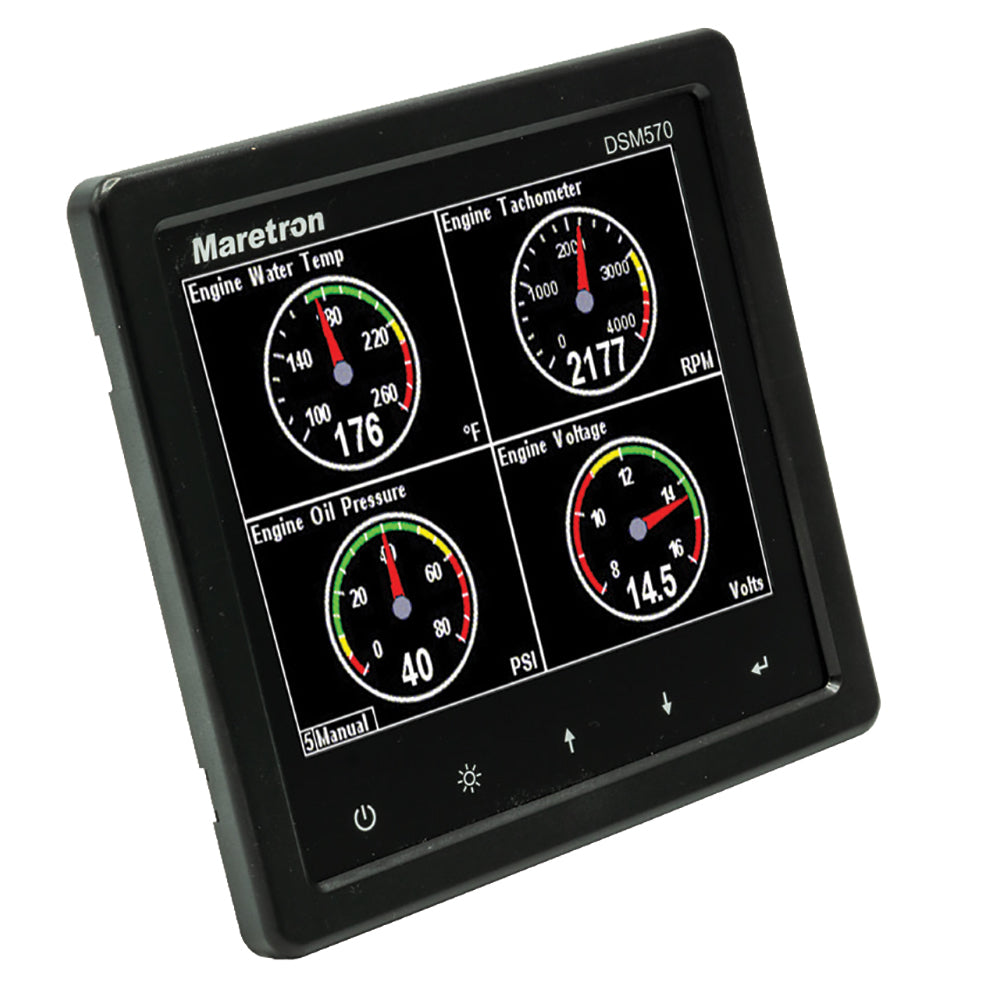

Maretron DSM570 5.7-inch High-Resolution Color Display with Black Enclosure

DSM570 5.7" High Resolution Color Display with Black Enclosure

Maretron's DSM570 is a high-resolution sunlight viewable color display that allows easy interpretation of NMEA 2000instrument and navigation data through custom display configurations, featuring an easy-to-use five-key illuminated keypad.

Unlike traditional single-display units, DSM570 users can choose numeric, gauge, or graph formats in single or multiple displays, with cycling options possible for a wide range of favorite data. These multiple display options conserve mounting space and reduce overall system cost.

The DSM570 will directly connect with any NMEA 2000network and display any or all information captured throughout the vessel. Various audio and visual alarms are also programmable.

The DSM570 displays a multitude of information including AC power, battery, depth, engine, environment, fuel management, GPS, heading, navigation, rudder, speed, tanks, time, transmission, weather, wind and more.

The DSM570 includes a comprehensive, flexible alert capability. Configure audio and visual alerts on virtually any data that the DSM570 is capable of monitoring.

Available alert types include:

• High alert
• Low alert
• Data unavailable alert
• On alert
• Off alert
• Circuit breaker tripped alert
• Course alert
• GPS quality alert
• Outside radius alert
• Inside radius alert
• Direction alert
• Timer alert

Maretron's DSM570 is engineered and manufactured to the highest standards (IEC 60945 Maritime Navigation and Radiocommunication Equipment). Its compact waterproof housing will provide years of reliable performance.

Examples of data that the DSM570 can display are:

• AC power (Average Frequency, Voltage and Current, Phase-Neutral Frequency, Voltage and Current, Phase-Phase Frequency, Voltage and Current
• Anchor Watch
• Battery / DC (Voltage, Current, Battery Temperature, Battery State of Charge, Battery Time Remaining, Ripple Voltage, Power)
• Depth (Water Depth, Depth below Transducer)
• Electrical (Resistance)
• Electrical Distribution (Switch/Breaker, Breaker Current, On/Off/Error Counters, On/Off/Error Timers)
• Engine Monitor (Boost Pressure, Hours, Coolant Pressure, Coolant Temperature, Exhaust Gas Temperature, Fuel Pressure, Fuel Rate, Oil Pressure, Oil Temperature, Tachometer, Tilt/Trim, Voltage, Fuel Ecomony, Fuel Consumption, Percent Load, Percent Torque, Trip Fuel Used, Warning Indicators)
• Environment (Barometer, Heat Index, Humidty, Temoperatures, Wind Chill)
• Fluid Flow (Flow Rate, Trip Volume)
• Fuel management (Distance to Empty, Time to Empty, Total Fuel Capacity, Total Fuel Level, Total Fuel Consumption, Total Trip Fuel Used, Total Fuel Economy, Total Fuel Renmaining)
• GPS (COG, Lat/Lon, SOG, Satellites, Time, Accuracy)
• Heading (Heading, Rate of Turn, Variation)
• Humidity (Inside, Outside, User Defined
• Indicators (Status, , On/Off/Error Counters, On/Off/Error Timers)
• Mechanical (dB, Force, Strain)
• Motion (Acceleration, Angle, Angular Velocity, Angular Acceleration, Distance, Rotation Rate, Velocity)
• Navigation (BOD, BTW, COG, XTE, DTW, ETA, Lat/Long, Rolling Road, Set/Drift, SOG, TTG, VWG, Waypoint Number and Name)
• Pressure / Vacuum
• Rudder
• SMS (Status, Signal Strength)
• Speed (Through Water, Over Ground, Total Log, Trip Log)
• Tanks (Capacity, Level, Remaining)
• Time (Local, UTC, Moon Phase, Sunrise, Sunset, Twilight)
• Transmission (Gear, Oil Pressure, Oil Temperature, Warning Indicators)
• Vessel (Heave, Pitch, Roll, Trim Tabs, Keel)
• Watermaker (Sea Recovery Status display)
• Wind (Apparent direction and speed, True direction and speed, Groud direction and speed)

The Maretron DSM570 offers a 5.7-inch high-resolution color display designed for marine navigation and instrumentation. Its sunlight-viewable screen ensures clear visibility in various lighting conditions, making it ideal for vessel monitoring. The easy-to-use five-key illuminated keypad allows smooth navigation through complex data sets. This display connects directly to any NMEA 2000 network, enabling real-time monitoring of multiple vessel systems and sensor data in a single, compact unit. Users can customize display formats—numeric, gauge, or graph—and select multiple data sets for efficient space utilization and system integration. The DSM570 consolidates information such as power management, engine parameters, navigation, weather, and tank levels, providing comprehensive situational awareness at a glance. Its flexible alert system allows configuration of visual and audible alarms for critical data thresholds, including high/low alerts, GPS quality, course deviations, and more, enhancing safety and operational efficiency. Built to meet IEC 60945 standards, the waterproof enclosure ensures durability and reliable performance over time. The device is suitable for a wide range of vessel types, from small boats to large yachts, supporting advanced data analysis and decision-making. The extensive data display capabilities include AC power parameters, battery status, depth measurements, engine diagnostics, environmental conditions, fuel management, GPS position, heading, rudder information, speed, tank levels, and weather data. Additional features include alarm configurations for circuit breaker trips, course changes, GPS quality issues, and radius deviations, providing proactive vessel management. The DSM570 also displays vessel motion metrics like pitch, roll, and heave, as well as watermaker status, wind speed, and direction. Its comprehensive functionality makes it an essential tool for navigation, monitoring, and safety management on your vessel. Designed for ease of installation and long-term use, the Maretron DSM570 combines advanced features with a durable housing, ensuring dependable performance in demanding maritime environments.

Features:

• High-resolution 5.7-inch sunlight-viewable color display for clear visibility

• Customizable display formats including numeric, gauge, and graph views

• Easy-to-use five-key illuminated keypad for navigation and configuration

• Direct connection to NMEA 2000 network for seamless data integration

• Displays a wide range of vessel data including power, engine, navigation, weather, and tank levels

• Flexible alert system with programmable audio and visual alarms for critical data thresholds

• Alarm types include high/low, GPS quality, course deviations, circuit breaker trips, and radius alerts

• Built to IEC 60945 standards with a waterproof enclosure for durability

• Supports monitoring of vessel motion parameters such as pitch, roll, and heave

• Includes features for fuel management, GPS positioning, heading, rudder, and environmental data
