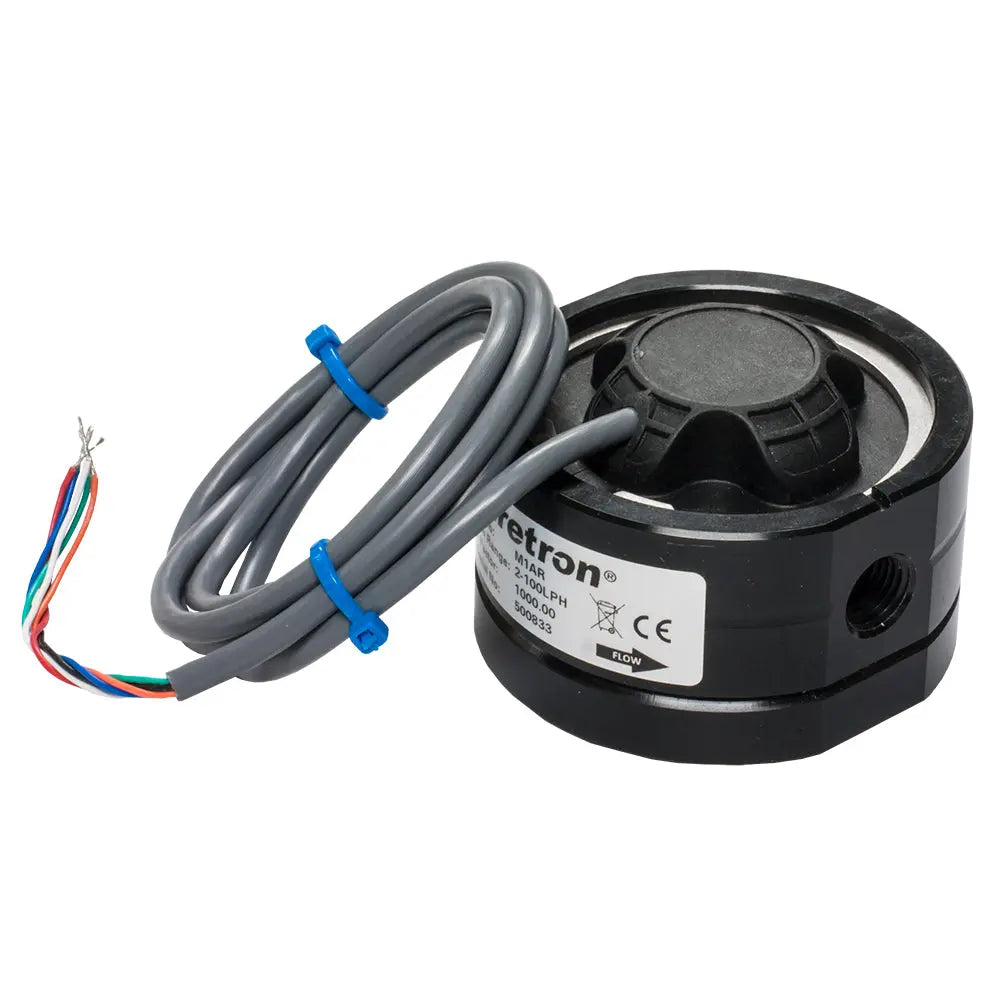

Maretron Fuel Flow Sensor M1AR 2-100 LPH for Accurate Fuel Measurement

• Flow Range: 2 LPH to 100 LPH (0.53 GPH to 26.4 GPH)

• All M1AR fuel flow sensor accessories for the FFM100 are fitted with 1/4" NPT female threads

• Nominal K Factor: 1000 pulses/L (3785.4 pulses/Gal)

• Cable Length: 1m (3.28')

• Strainer Size: 200 Mesh (If not already installed after fuel filter)

• Port Size: 1/4" NPT Female

• Maximum Viscosity: 1000 cPs

• Maximum Operating Pressure: 68.95 Bar (1000 PSI)

• Weight: 775g (1.71 lb)

• Construction: Aluminum Housing Material

• Rotors: PPS (Ryton)

• Shafts: 316/304 Stainless Steel

• Magnets: Samarium Cobalt

• O-Ring: FKM (Viton)

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Maretron M1AR Fuel Flow Sensor is designed for precise measurement of fuel flow rates ranging from 2 to 100 liters per hour (0.53 to 26.4 gallons per hour). Constructed with a durable aluminum housing and PPS (Ryton) rotors, this sensor ensures reliable performance in demanding environments. Its 1/4-inch NPT female port and accessories with compatible fittings make installation straightforward on various fuel systems.

This sensor features a nominal K factor of 1000 pulses per liter, translating to approximately 3785 pulses per gallon, enabling accurate data collection for your fuel management needs. The 1-meter (3.28-foot) cable allows flexible positioning, and the 200 mesh strainer (if not already installed after the fuel filter) helps prevent debris from affecting the sensor's operation. The maximum operating pressure of 68.95 bar (1000 PSI) and maximum viscosity of 1000 cPs make it suitable for high-pressure fuel systems.

Manufactured with high-quality materials, including stainless steel shafts and samarium cobalt magnets, the M1AR sensor delivers durability and longevity. Its compact weight of 1.71 pounds makes it suitable for a variety of applications without adding significant load. Please note, this product contains chemicals such as nickel, which are recognized by California's Proposition 65 for potential health risks. Proper handling and disposal are recommended to ensure safety.

Features:

• Flow Range: 2 LPH to 100 LPH (0.53 GPH to 26.4 GPH)

• Fitted with 1/4" NPT female threads for easy installation

• Nominal K Factor: 1000 pulses per liter (3785.4 pulses per gallon)

• Includes 1-meter (3.28-foot) cable for flexible setup

• 200 Mesh strainer helps prevent debris from entering the sensor

• Maximum pressure capacity of 68.95 bar (1000 PSI)

• Constructed with aluminum housing, PPS rotors, and stainless steel shafts for durability

• Contains high-quality samarium cobalt magnets and Viton O-ring for longevity

• Suitable for high viscosity fuels up to 1000 cPs
