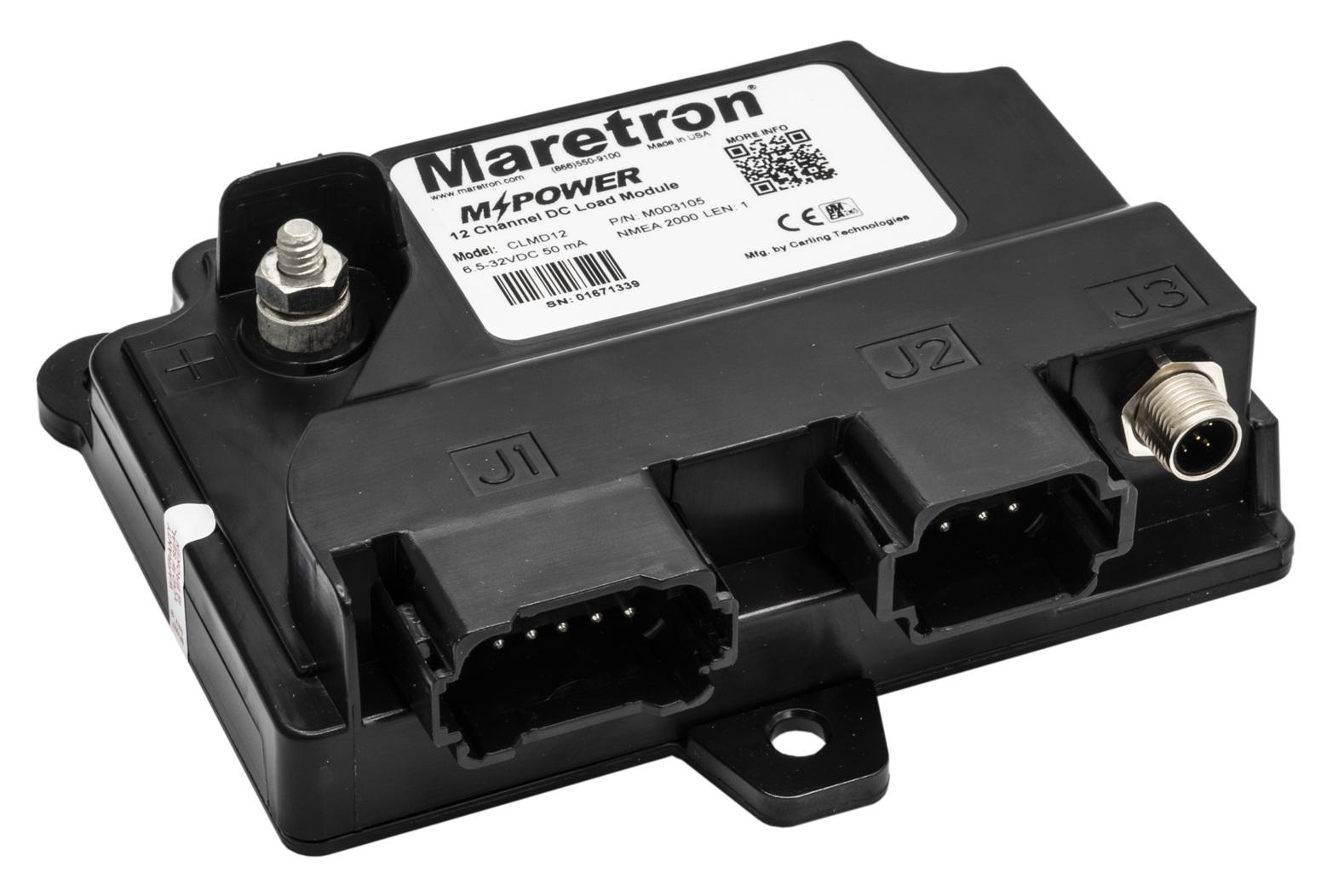

Maretron M-Power CLMD12R 12-Channel DC Load Module for NMEA 2000 Network

Maretron M-Power CLMD12R DC Load Module 12-Channel N2K With j1 and J2 Connectors

The Maretron M-Power CLMD12R DC Load Module provides a reliable and efficient solution for managing multiple DC loads on marine vessels of all sizes. Featuring twelve dimmable electronic circuit breakers (ECBs), this compact module allows for precise control over circuits such as lights, pumps, motors, and electronics, with individual current monitoring for each breaker. Its NMEA 2000(R) interface ensures seamless integration into your existing marine network, while the IP67 rated enclosure guarantees protection against water and dust ingress in harsh marine environments. The CLMD12R is ignition protected and opto-isolated from the NMEA 2000(R) network, eliminating potential ground loops that could cause electrical issues.

Designed with versatility in mind, this load module supports configurable breaker trip settings, including power-up states (ON, OFF, or previous) and adjustable trip current levels through Maretron's N2KAnalyzer(R) software. The module also features seven discrete inputs that can be configured as active high or active low, which makes it suitable for integrating switches, bilge alarms, hatch sensors, and other data inputs. Additionally, automatic overcurrent and thermal shutdown protections enhance safety and prevent damage to your electrical components.

The CLMD12R offers a total current capacity of 75 amps, with some breakers rated for up to 12 amps, six for 10 amps, and four for 5 amps, allowing for flexible circuit protection and potential paralleling of circuits. Current monitoring across each breaker helps identify overcurrent faults or under-current conditions, such as burnt-out bulbs, enabling proactive maintenance and troubleshooting. The module includes a 12 pigtail adapter cable for easy connection to J1 and J2 connectors, making installation straightforward. This feature set makes the Maretron CLMD12R an essential component for managing DC loads efficiently and safely on your vessel, ensuring reliable operation and easy system diagnostics.

Features:

• NMEA 2000(R) interface for seamless marine network integration

• IP67 rated enclosure for water and dust resistance

• Ignition protected design for safety

• Opto-isolated from NMEA 2000(R), preventing ground loop issues

• Twelve dimmable electronic circuit breakers (ECBs) for precise control

• Individual current monitoring for each breaker

• Configurable breaker trip settings, including power-up states

• Lockable breakers to prevent inadvertent actuation

• Seven discrete inputs configurable as active high or low

• Automatic overcurrent and thermal shutdown protection

• Total current capacity of 75 amps with circuit flexibility

• Includes a 12 pigtail adapter cable for easy installation
