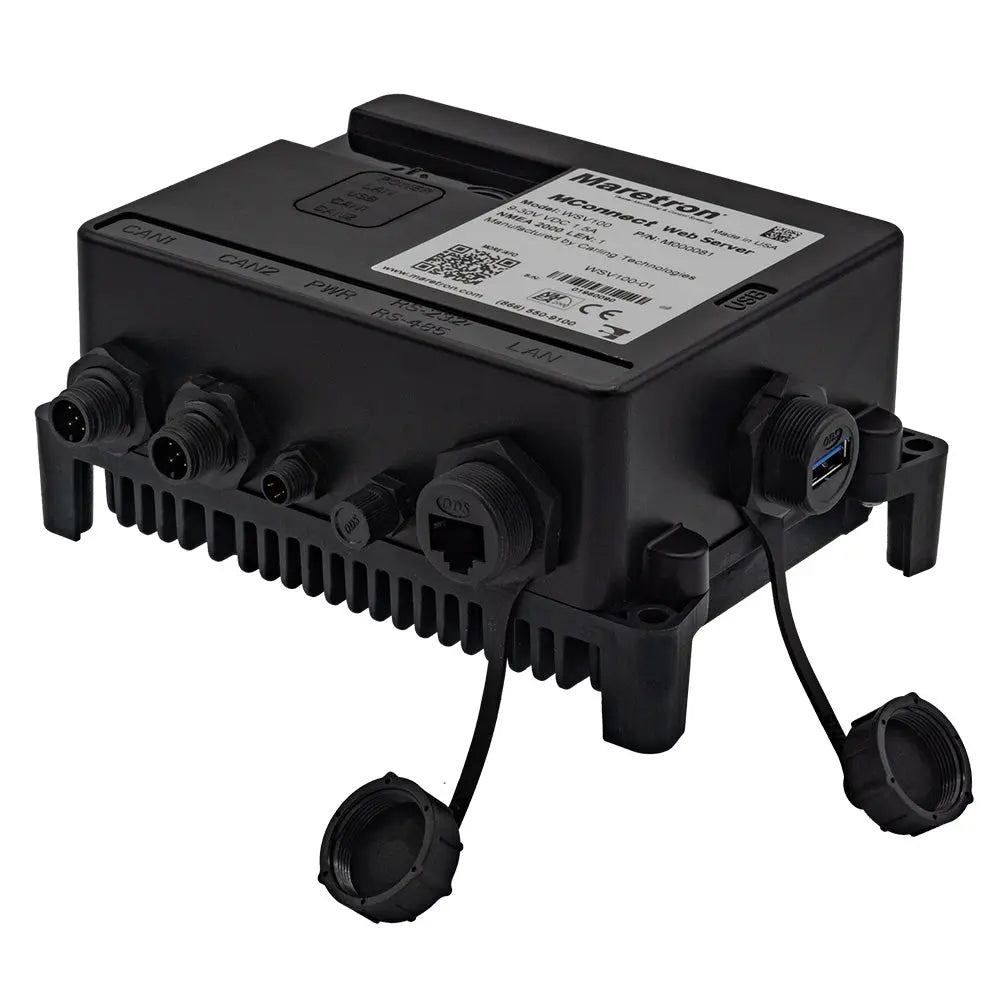

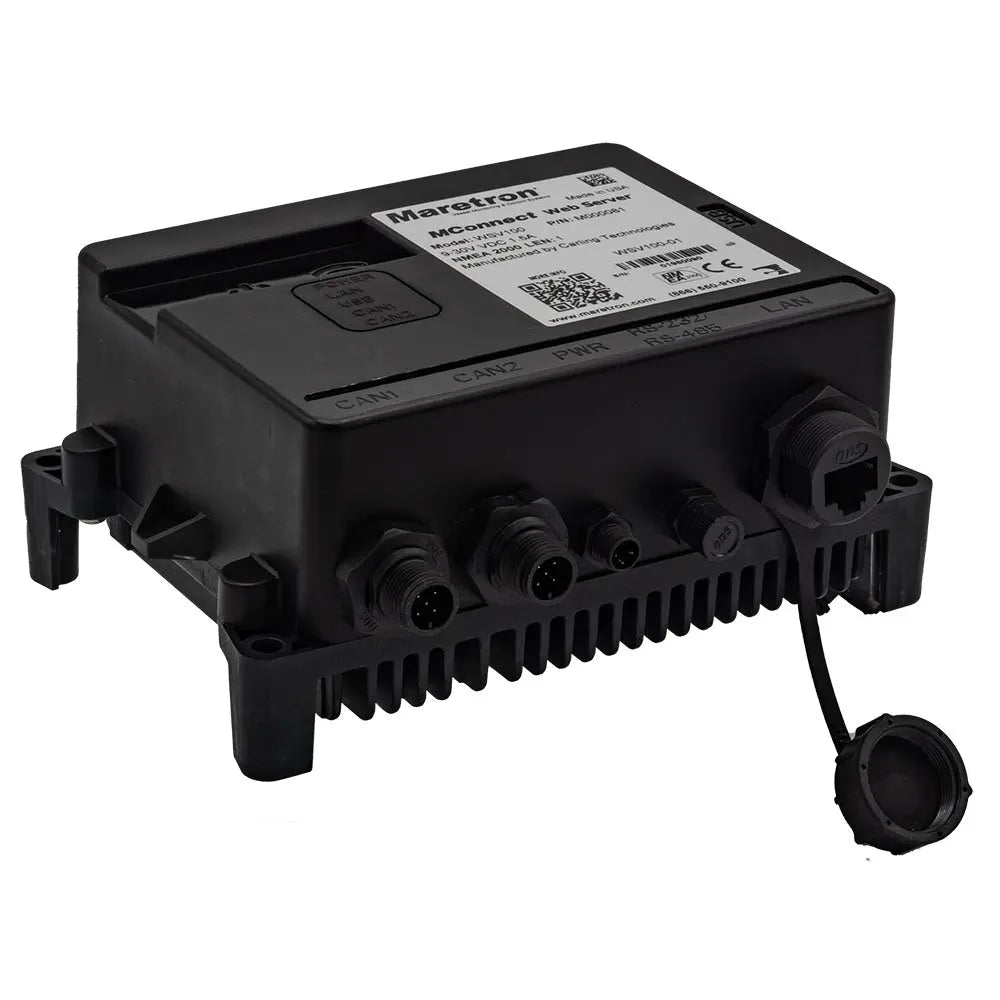

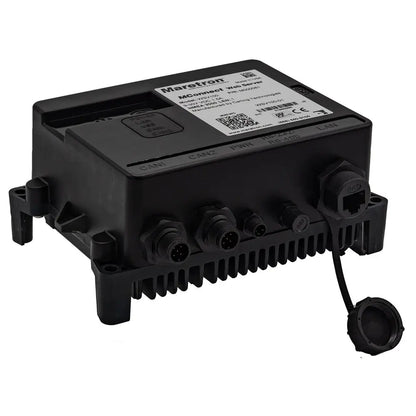

Maretron MConnect WSV100-01 Vessel Monitoring & Control Web Server for Marine Data Integration

MConnect Vessel Monitoring Control Web Server

MConnect is a cutting-edge, NMEA 2000 certified web server and screen editor designed to enhance the boating experience by centralizing control, monitoring, and automation functions. It connects to over 400 NMEA 2000 data points on a vessel, providing real-time visual feedback through customizable, modern graphics on multi-function displays or any browser-enabled device.

Engineered to cater to vessels of all sizes, this powerhouse delivers real-time data displayed on sleek web pages accessible from your favorite devicesphones, tablets, PCs, or MACs, take your pick! MConnect, inspired by the design brilliance of Maretrons award-winning N2KView Vessel Monitoring and Control Software, boasts intuitive graphic controls that transform complex data into a visually stunning experience.

MConnect integrates with marine Multifunction Displays (MFDs) like Garmin OneHelm, Raymarine LH, and many more. It also fully integrates with digital switching systems such as Octoplex and MPower for a truly interconnected marine ecosystem.

MConnect doesnt stop at one NMEA 2000 busit connects directly to two, independently receiving data from both. Monitor Primary and Secondary buses, or keep an eye on Navigation and Monitoring buses separatelyno bridge is required.

Spot potential issues at a glance

Say goodbye to deciphering data jargon! MConnect uses vibrant colors and high-definition graphics to give you an instant visual checkup of your boats health. Spot potential issues at a glance as the information effortlessly synchronizes across various screens. Fast, seamless, and beginner-friendly, MConnect boasts an uncluttered interface that you can customize to fit your needs.

Revolutionizing vessel monitoring for OEMs

MConnect isnt just a powerful tool for vessel monitoring; its a game-changer for Original Equipment Manufacturers (OEMs). We understand the importance of brand identity, and with MConnect, OEMs can take control like never before. Seamlessly integrate your brand aesthetics into the MConnect interface by creating custom graphics that align with your unique identity. This unprecedented feature empowers OEMs to showcase their brand seamlessly within the monitoring experience. The result A truly cohesive and branded vessel monitoring solution that not only delivers unparalleled functionality but also elevates your brand presence on board. MConnect opens up a realm of possibilities for OEMs, ensuring their vessels stand out with a distinctive visual identity, making waves in both performance and style.

Your boats well-being has never been so accessible

MConnect opens the doors wider with its simultaneous multi-user capability and an attractive price point.

Features:

Advanced Customization

The built-in MConnect Editor provides an unparalleled level of customization, allowing users to design screen layouts from scratch or choose from 87 pre-built options. OEMs can tailor the interface to match their brand identity, creating a cohesive branded user experience. This flexibility enables a truly personalized user interface, catering to both novice and expert users.

Dual NMEA 2000 Bus Connectivity

MConnect can independently connect to and receive data from two optically isolated NMEA 2000 networks, offering enhanced reliability and redundancy that ensures continuous system monitoring.

Full Integration with Digital Switching Systems

MConnect uses standard NMEA 2000 switching PGNs, allowing seamless integration with third-party systems as well as our own Octoplex and MPower systems. This consolidation of control and monitoring simplifies complex integrations into one platform.

Web-Based Accessibility

Unlike traditional systems, MConnects web server allows remote access from any device with a browser and uses VPN support for enhanced data security. This ensures both versatility and security for onboard and offboard management.

Affordable Pricing

MConnect provides high-end features at a competitive price, delivering exceptional value without compromising on quality or performance.

Specifications:

• Engaging HTML5 user interface experience
• Design your look with custom graphics
• Can support simultaneous access by up to four users
• Dual Can Bus for dual or redundant NMEA 2000 Connections
• 9-32 Volt Power Input (with reverse polarity protection)
• Only 5-watt power usage
• RJ45 Ethernet Port
• USB 3.0 Port
• WIFI

The Maretron MConnect WSV100-01 is a state-of-the-art vessel monitoring and control web server designed to elevate your marine experience through advanced data visualization and seamless integration. Compatible with NMEA 2000 networks, it connects directly to two independent data buses, providing real-time access to over 400 marine data points. The system's web-based interface allows you to monitor your vessel from any browser-enabled device, including phones, tablets, PCs, or Macs, making it highly versatile and accessible. Its modern HTML5 user interface supports custom graphics and layouts, enabling OEMs and boat owners to tailor the display to their specific preferences and branding, creating a cohesive onboard control environment. The MConnect integrates with popular marine multifunction displays such as Garmin OneHelm and Raymarine LH, as well as digital switching systems like Octoplex and MPower, offering a comprehensive and interconnected vessel management solution. With support for multiple users simultaneously and secure VPN access, the system ensures that vessel health and system status are always within reach, whether on board or remotely. Its low power consumption and straightforward installation make it an efficient choice for vessels of all sizes, delivering high-end features at an attractive price point. Designed with reliability and customization in mind, the Maretron MConnect WSV100-01 empowers boat owners and OEMs to maintain optimal vessel performance and safety effortlessly.

Features:

• Advanced customization with built-in editor and 87 pre-built options for personalized interface design

• Dual NMEA 2000 bus connectivity for redundancy and reliable data collection

• Full integration with digital switching systems like Octoplex and MPower using standard NMEA 2000 PGNs

• Web-based accessibility supporting remote monitoring from any device with browser and VPN support

• Supports up to four simultaneous users for collaborative vessel management

• Supports custom graphics, branding, and layout design for OEMs and vessel owners

• Low power consumption at only 5 watts with reverse polarity protection

• Connectivity options including RJ45 Ethernet port, USB 3.0 port, and Wi-Fi for versatile network integration
