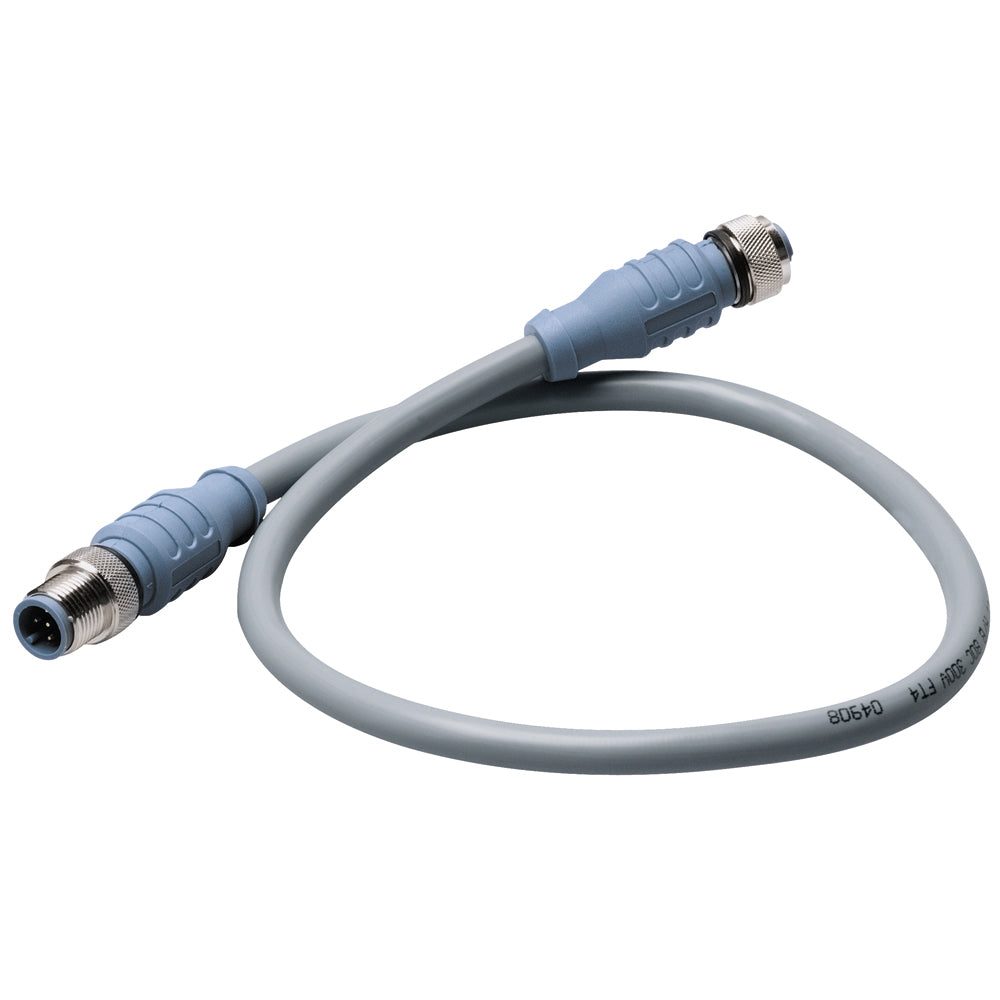

Maretron Micro Double-Ended Cordset - 1 Meter with IP68 Protection and Gold-Plated Brass Connectors

Micro Double-Ended Cordset - 1M

Mechanical

• Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
• Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
• Contact Mat/Plating: Brass/Gold
• Coupling Nut Mat/Plating: Brass/Nickel
• Connector Outside Diameter: 0.59"
  Electrical
• Current Rating: 4.0 Amps
• Voltage Rating: 250 V
  Cable
• Outer Jacket Mat/Color: PVC/Gray
• Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
• Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
• Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)

Environmental

• Protection Class: IEC IP68, NEMA 1,3,4,6P
• Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
  Approvals
• (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625,
  AWM 80 deg C 300V
• (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C,
  AWM I/II A/B 80C 300V FT4
• NMEA: NMEA 2000 Approved

The Maretron Micro Double-Ended Cordset (Part Number: CM-CG1-CF-01.0) offers a reliable connection solution for demanding marine and industrial applications. This 1-meter cordset features a robust design with a molded thermoplastic PUR body in blue-gray, ensuring durability and resistance to harsh environments. The contact carrier and body are constructed from thermoplastic PUR, providing both mechanical strength and flexibility. Gold-plated brass contacts ensure excellent electrical conductivity and corrosion resistance, while nickel-plated brass coupling nuts facilitate secure connections.
Designed for high-performance electrical connections, this cordset supports a current rating of 4.0 Amps and a voltage rating of 250 V. Its shielding includes three levels of foil, providing electromagnetic interference (EMI) protection for both power and data conductors. The cable's outer jacket is made of gray PVC, resistant to sunlight and environmental exposure, making it suitable for outdoor use. Conductors are composed of 22 AWG wire with insulation materials like HDPE for data pairs and SRPVC for power pairs, ensuring signal integrity and safety. The cordset features four conductors plus a drain wire, facilitating multiple wiring configurations.
This cordset complies with stringent environmental standards, boasting an IEC IP68 protection rating and NEMA 1, 3, 4, and 6P classifications, making it highly resistant to dust, water, and harsh conditions. It operates across a temperature range from -40°C to 80°C (-40°F to 176°F), maintaining performance in extreme environments. Certified by UL and CSA, it meets standards for outdoor and industrial applications, including UL's PLTC 75°C sunlight resistance and AWM 80°C 300V ratings. Additionally, it is NMEA 2000 approved, ensuring compatibility with marine network systems. This cordset provides a dependable, weather-resistant connection for demanding marine, industrial, and outdoor applications.
With its compact size and high durability, the Maretron Micro Double-Ended Cordset is ideal for installations requiring secure, corrosion-resistant connections in challenging environments, offering peace of mind and operational reliability.

Features:

• Mechanical: Thermoplastic PUR molded body for durability

• Electrical: Supports 4.0 Amps current and 250 V voltage ratings

• Connectors: Gold-plated brass contacts with nickel-plated coupling nuts

• Shielding: Three levels of foil for EMI protection of power and data signals

• Environmental: IP68 rated with NEMA 1, 3, 4, and 6P compliance for harsh conditions

• Temperature Range: -40°C to 80°C (-40°F to 176°F) for reliable outdoor use

• Certifications: UL, CSA, and NMEA 2000 approved for marine and industrial standards

• Cable Construction: 22 AWG conductors with HDPE and SRPVC insulation for signal integrity

• Outer Jacket: Gray PVC for weather resistance and outdoor durability
