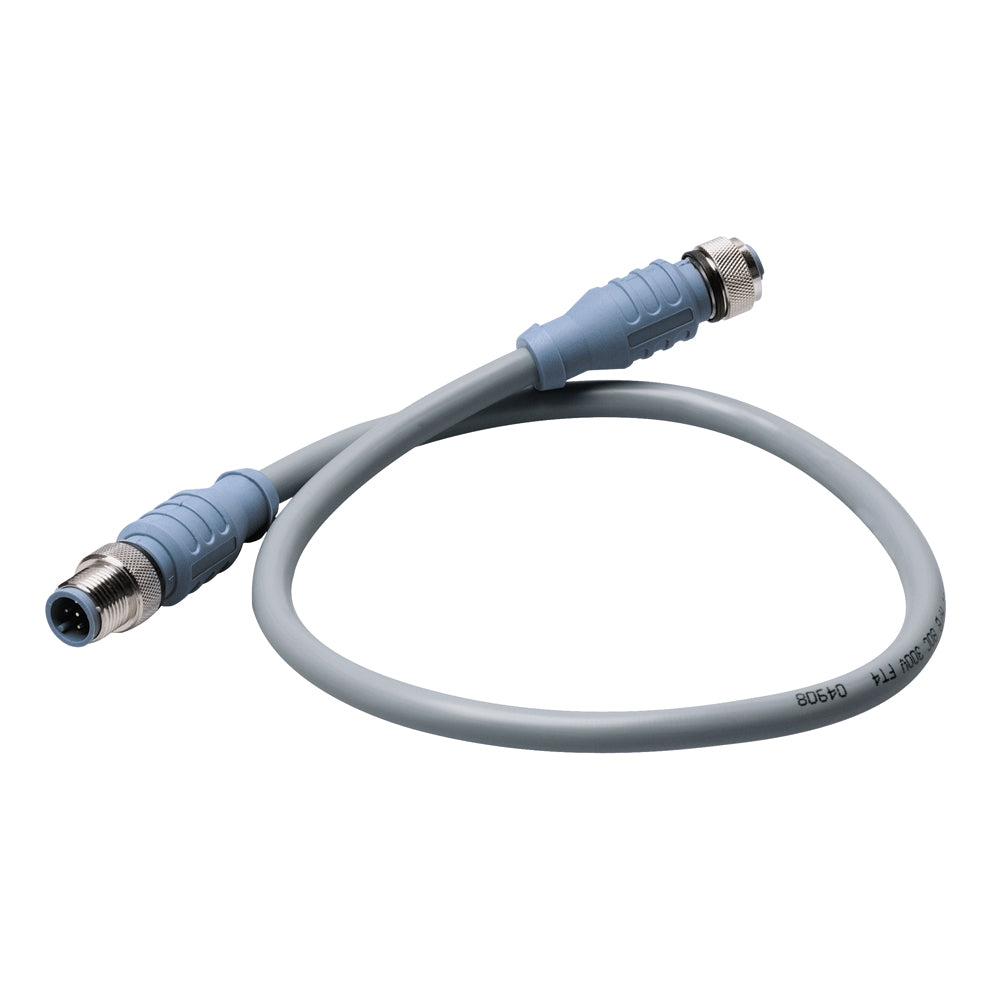

Maretron Micro Double-Ended Cordset 2 Meter - High-Performance Marine Connectivity

Micro Double-Ended Cordset - 2 Meter

Mechanical:

• Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
• Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
• Contact Mat/Plating: Brass/Gold
• Coupling Nut Mat/Plating: Brass/Nickel
• Connector Outside Diameter: 0.59 Electrical
• Current Rating: 4.0 Amps
• Voltage Rating: 250 V
  Cable
• Outer Jacket Mat/Color: PVC/Gray
• Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
• Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
• Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)Environmental
• Protection Class: IEC IP68, NEMA 1,3,4,6P
• Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
  Approvals
• (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
• (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80C 300V FT4
• NMEA: NMEA 2000 Approved

The Maretron Micro Double-Ended Cordset (Part Number: CM-CG1-CF-02.0) is designed for reliable and durable marine and industrial applications. This 2-meter cordset features a robust construction with a thermoplastic PUR contact carrier and molded body in blue-gray, ensuring resistance to harsh environments. The brass contacts with gold plating provide excellent conductivity and corrosion resistance, making it suitable for critical data and power connections on boats, ships, and industrial machinery. The cordset's outside diameter of approximately 0.59 inches and its shielded design with three levels of foil shielding ensure minimal electromagnetic interference, maintaining signal integrity in demanding conditions.

Features:

• Mechanical: Contact Carrier and Molded Body made of thermoplastic PUR in blue-gray for durability

• Electrical: Brass contacts with gold plating for optimal conductivity and corrosion resistance

• Protection: IEC IP68 rated for water and dust ingress protection, suitable for harsh environments

• Voltage and Current: Rated for 250 V and 4.0 Amps, ideal for power and data transmission

• Cable Construction: 4 conductors of 22 AWG with shielded foil layers for interference protection

• Temperature Range: Operates from -40°F to 176°F, suitable for a wide range of environmental conditions

• Certifications: NMEA 2000 approved, UL and CSA listed for outdoor and industrial use
