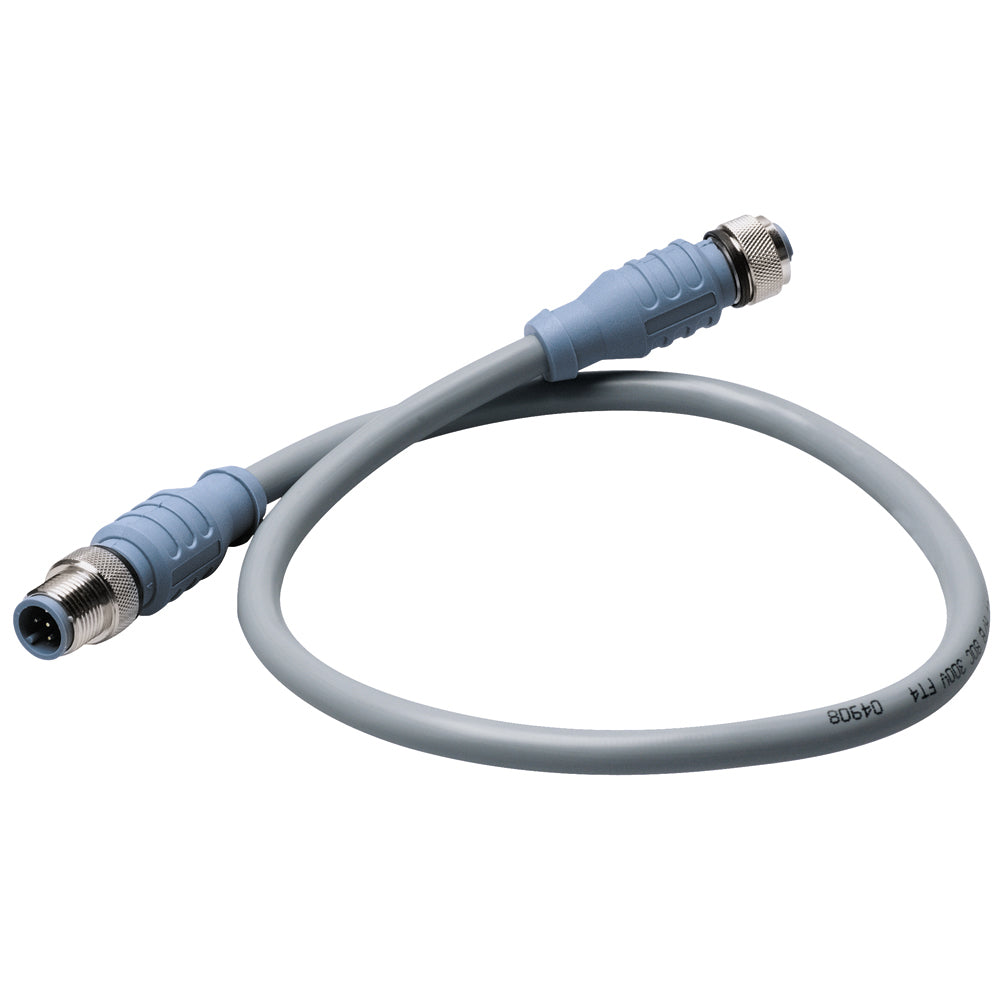

Micro Double-Ended Cordset - 3M

Mechanical

• Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
• Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
• Contact Mat/Plating: Brass/Gold
• Coupling Nut Mat/Plating: Brass/Nickel
• Connector Outside Diameter: 0.59"

Electrical

• Current Rating: 4.0 Amps
• Voltage Rating: 250 V
  Cable
• Outer Jacket Mat/Color: PVC/Gray
• Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
• Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
• Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)

Environmental

• Protection Class: IEC IP68, NEMA 1,3,4,6P
• Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
  Approvals
• (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625,
  AWM 80 deg C 300V
• (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C,
  AWM I/II A/B 80C 300V FT4
• NMEA: NMEA 2000 Approved



The Maretron CM-CG1-CF-03.0 Micro Double-Ended Cordset is designed for robust data and power transmission in demanding environments. Featuring a 3-meter length, this cordset provides flexibility for various installation configurations, ensuring secure and stable connections. Its mechanical construction includes a molded thermoplastic PUR body in blue-gray, offering excellent durability and resistance to harsh conditions. The contact carrier and coupling nut are made from brass with gold and nickel plating respectively, ensuring reliable electrical contact and corrosion resistance. The connector outside diameter is approximately 0.59 inches, making it suitable for tight spaces where compactness is essential. The cordset supports a current rating of 4.0 amps and a voltage rating up to 250 volts, making it ideal for power and data applications. The cable features a PVC outer jacket in gray, with conductor insulation using high-density polyethylene (HDPE) for data pairs and SRPVC for power pairs, providing enhanced electrical performance and protection. Four conductors of 22 AWG and a drain wire facilitate efficient data transfer, with shielding that includes three levels of foil for overall, power, and data shielding, minimizing electromagnetic interference. Environmentally, the cordset boasts an IEC IP68 protection class and is suitable for use in NEMA 1, 3, 4, and 6P rated environments, ensuring high protection against dust, water, and other elements. Its temperature range spans from -40°C to 80°C (-40°F to 176°F), supporting operation in extreme conditions. Certified by UL and CSA, the cordset meets industry standards for outdoor and indoor applications, including UL PLTC 75°C sunlight resistance and CSA CMX-OUTDOOR-CMG certifications. Additionally, it is NMEA 2000 approved, making it compatible with marine network systems. Designed to deliver reliable performance in demanding industrial and marine environments, the Maretron Micro Double-Ended Cordset ensures secure connections for both data and power needs with durability, flexibility, and safety at its core.

Features:

• Mechanical: Thermoplastic PUR molded body in blue-gray for durability

• Electrical: Supports 4.0 amps current and 250 volts voltage rating

• Connector: Brass contact carrier with gold plating and nickel-plated coupling nut

• Cable: 3-meter length with PVC outer jacket in gray

• Insulation: HDPE for data pairs and SRPVC for power pairs for enhanced electrical performance

• Shielding: Three levels of foil shielding for overall, power, and data protection against interference

• Environmental: IEC IP68 rated for dust and water protection, NEMA 1, 3, 4, 6P compatibility

• Temperature Range: -40°C to 80°C (-40°F to 176°F), suitable for extreme conditions

• Certifications: UL, CSA, and NMEA 2000 approved for industry-standard reliability and marine applications
