SKU:102969

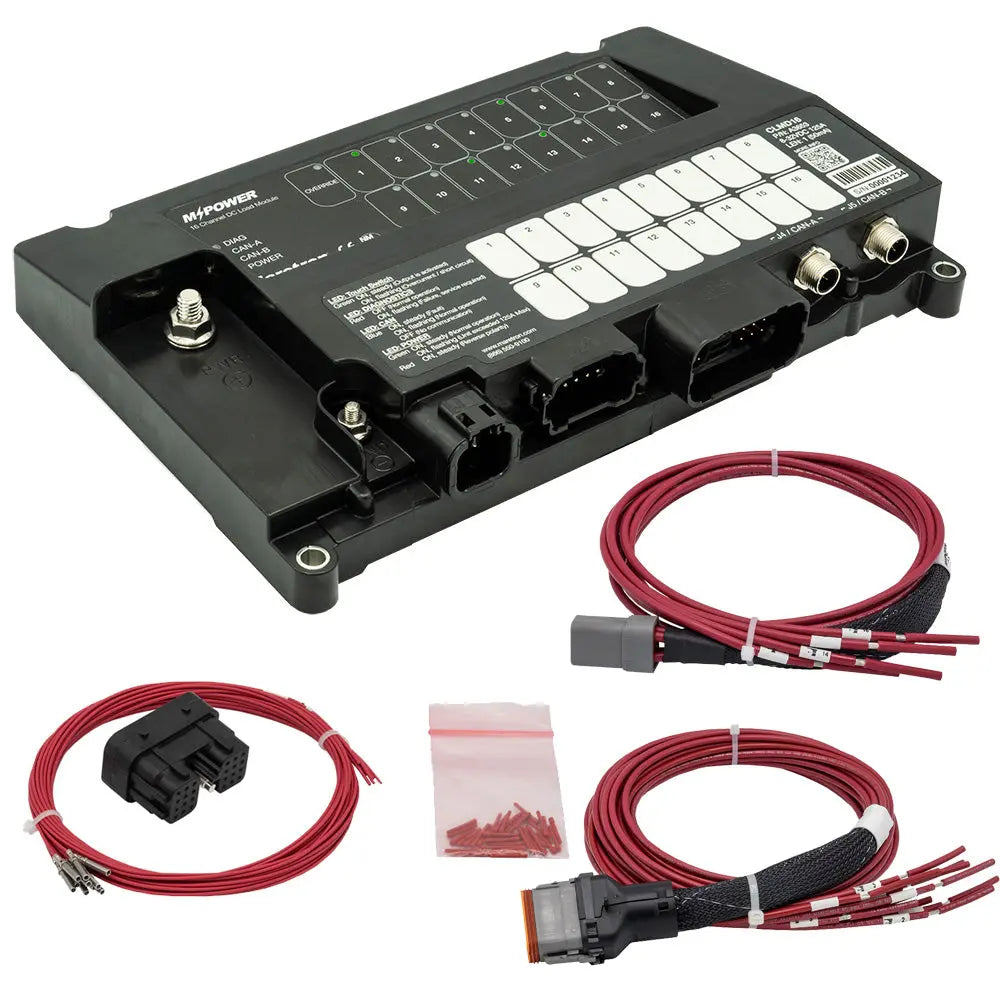

MPower 16-Channel DC Load Controller Module with NMEA 2K with J1 J2 Connectors
For larger breakers and more circuits, the MPower CLMD16 is a 16-Channel DC Load Controller Module. Four of the 16 breakers handle a maximum of 25 amps, and twelve breakers handle a maximum of 12 amps, with a total current capacity of 125 Amps. Additionally, circuits can be paralleled.
The CLMD16 also supports two H-Bridge reversing polarity circuits that can be used for loads such as engine hatches, passerelles, trim tabs, etc. The CLMD16 has 8 inputs for hard-wired switches that can be used to switch breaker states, or as inputs for other data, such as bilge alarms or hatch positions, etc. There are 3 inputs capable of monitoring tank levels.
The CLMD16 handles many DC load types such as lights, pumps, motors, and electronics. An added benefit of the CLMD16 is that it reports the current through each of the 16 breakers. This allows you to determine if loads are drawing too much or too little electrical current. This information can be used to report overcurrent faults and undercurrent conditions, such as burnt-out bulbs.
Features:
Applications:
The Maretron MPower CLMD16-R is a versatile 16-channel DC load controller designed for marine and industrial applications. It features four high-current breakers capable of handling up to 25 amps each and twelve breakers rated for 12 amps, providing a total capacity of 125 amps. This configuration allows for efficient management of various loads such as lights, pumps, motors, and electronics, ensuring reliable power distribution across your system. The module supports parallel circuit configurations, enabling flexible power management for complex setups. An important feature of the CLMD16-R is its ability to report the current draw of each breaker, facilitating monitoring of load conditions and early detection of issues like overcurrent or bulb burnout. The device includes two H-Bridge circuits for reversing polarity loads such as engine hatches or trim tabs, broadening its application scope.
Equipped with eight digital inputs, the module allows for hard-wired switches or integration with sensors like bilge alarms or hatch position indicators. Additionally, three inputs can monitor tank levels, providing comprehensive system oversight. The CLMD16-R's NMEA 2000 interface ensures easy integration into marine networks, with features like IP67 rated enclosure for durability, ignition protection, and opto-isolation to prevent ground loops. The module's electronic circuit breakers can be configured to have specific power-up states—ON, OFF, or previous—adding convenience for system automation. Local control is simplified through capacitive touch switches, and all inputs and outputs are protected against short circuits to power or ground. Safety features include automatic overcurrent shutdown and thermal shutdown for each ECB, enhancing reliability and preventing damage. The module supports multiple input types, including digital, resistive analog, and 4-20mA current loop inputs, enabling comprehensive system integration. Typical applications include remote control of navigation and area lighting, alerting for burnt-out bulbs, and dimmable lighting control, making it ideal for marine, RV, and industrial environments. Please note, returns to the original point of purchase are not supported; contact the manufacturer directly for support or warranty concerns.
Features:
