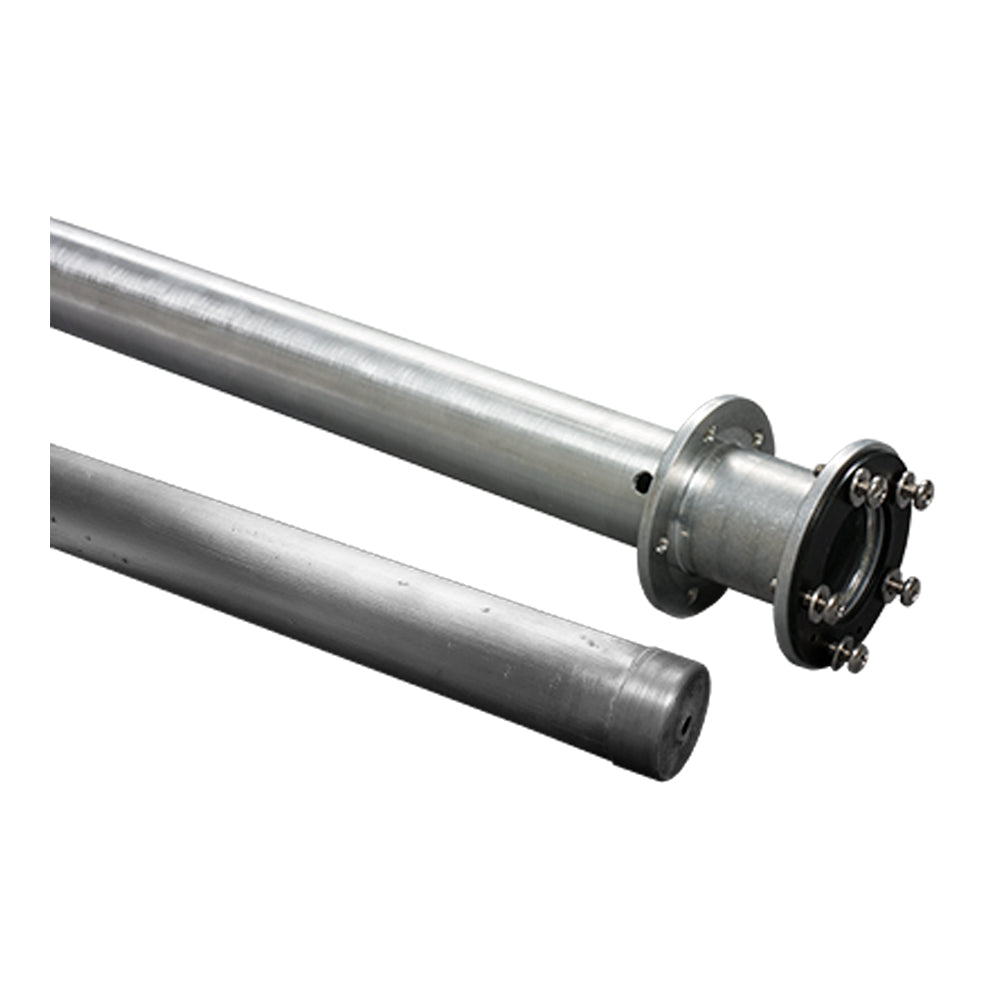

Maretron SAE 5-Bolt Pattern Focus Tube with Dead Band Eliminator (Part Number: TFTDBE-5H)

SAE 5-Bolt Pattern Focus Tube w/Dead Band Eliminator

Focus tubes allow the TLM100/TLM150 ultrasonic tank level monitors to be used for level measurement on vessels with non-displacement hulls at up to 15 of pitch or roll, compared to 6 pitch or roll for the sensor alone. Additionally, the focus tube with deadband eliminator raises the TLM100/TLM150 2" above the top of the tank, allowing accurate level measurement with fluid levels all the way to the top of the tank, and eliminating the 2" deadband of the TLM100/TLM150.

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Maretron TFTDBE-5H is a precision-engineered focus tube designed to enhance the functionality of TLM100 and TLM150 ultrasonic tank level monitors. This focus tube is compatible with SAE 5-bolt pattern vessels and enables accurate level measurement even on non-displacement hulls with up to 15 degrees of pitch or roll, significantly improving upon the 6 degrees supported by the sensor alone. The inclusion of the dead band eliminator raises the sensor 2 inches above the tank's top, allowing for precise readings even when the fluid reaches the tank's maximum level. This feature effectively eliminates the 2-inch dead zone that can hinder accurate measurement at full tank levels. Constructed with durable materials, the focus tube ensures reliable performance in marine environments. Its straightforward installation and compatibility make it an essential component for marine applications requiring precise tank level monitoring. The product complies with safety standards but contains chemicals such as nickel, which are known to the State of California to cause cancer, and users should review the safety information provided. Overall, the Maretron Focus Tube with Dead Band Eliminator provides enhanced measurement capabilities, increased installation flexibility, and reliable performance for marine tank monitoring systems.

Features:

• SAE 5-bolt pattern compatibility for vessel installation

• Allows use on vessels with up to 15 degrees of pitch or roll

• Raises sensor 2 inches above tank top for full-level measurement

• Eliminates the 2-inch dead band of the TLM100/TLM150 sensors

• Durable construction suitable for marine environments
