Solid-State Rate/Gyro Compass w/10m Cable & ConnectorMaretron's SSC300, implementing the second generation of Maretron's award-wining compass technology, is a solid state, rate gyro electronic compass that provides better than 0.7x heading accuracy through q45x of roll and pitch angle, and better than 1x roll and pitch accuracy in static conditions. Each SSC300 is factory calibrated for maximum accuracy. It delivers precise, reliable heading information ten times per second, plus vessel attitude including pitch and roll readings once per second. A micromachined 3-axis rate gyro is used, in conjunction with a 3-axis accelerometer, by advanced stabilization algorithms to provide accurate, stable readings during dynamically changing conditions such as hard turns or rough seas, making it an ideal heading sensor for autopilot or radar overlay applications.
Maretron's SSC300 is certified to the NMEA 2000 network standard and compatible with the NMEA 0183 digital interface standard. It connects directly with any NMEA 2000 network and with the optional NMEA 0183 cable accessory, with NMEA 0183 listeners to share information with navigational software, chart plotters, autopilots, and dedicated instrument displays - including Maretron's N2KView vessel monitoring system, or Maretron's DSM150 /DSM250 color graphics displays.
The SSC300 can be automatically calibrated for deviation. Its dynamic accuracy is improved with advanced digital filtering of the 3-axis magnetometer, 3-axis accelerometer and rate gyro.
Features:
- Better than 0.7x heading accuracy in static conditions
- Better than 1.5x heading accuracy in dynamic conditions
- Better than 1x/second rate of turn in
- Better than 1x pitch/roll accuracy
- Three axis magnetometer, three axis rate gyro, and three axis accelerometer
- Outputs NMEA 0183 and NMEA 2000 data simultanously
- IP67 waterproof enclosure
Applications:
- Navigation
- Autopilot
- Radar stabilization
- Satellite antenna stabilization
- Swing meter
WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

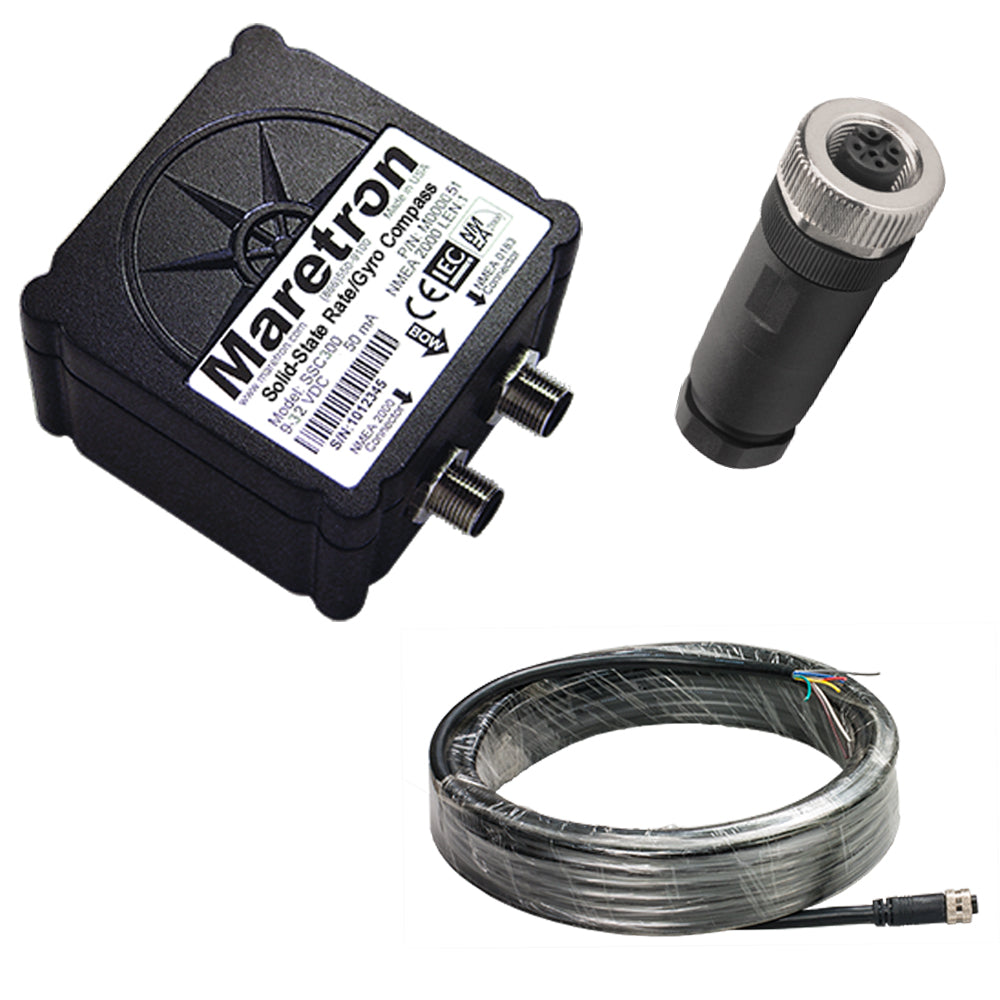

Maretron SSC300-01-KIT Solid-State Rate Gyro Compass
The Maretron SSC300-01-KIT is a solid-state rate gyro electronic compass designed to deliver dependable heading and vessel attitude data for marine navigation systems. Using a 3-axis magnetometer, 3-axis rate gyro, and 3-axis accelerometer, the compass provides stable performance during changing conditions such as hard turns, vessel motion, and rough seas. Advanced stabilization algorithms help maintain accurate readings for autopilot, radar overlay, and other onboard applications. Each SSC300 is factory calibrated to support reliable heading performance, while automatic deviation calibration helps further improve accuracy during installation and operation.
The SSC300 provides heading information ten times per second and outputs pitch and roll data once per second. It is certified to the NMEA 2000 network standard and is compatible with the NMEA 0183 digital interface standard, allowing it to connect directly to an NMEA 2000 network while sharing navigation data with compatible chart plotters, autopilots, software, instrument displays, and vessel monitoring systems. NMEA 2000 and NMEA 0183 data can be output simultaneously, supporting flexible integration with modern and legacy marine electronics.
Built for marine environments, the Maretron SSC300-01-KIT features an IP67 waterproof enclosure and includes a 10 m cable and connector for installation flexibility. Suitable applications include navigation, autopilot control, radar stabilization, satellite antenna stabilization, and swing meter systems. The product is supplied with installation documentation and includes the applicable California Proposition 65 warning.
Features:
- Heading Accuracy: Better than 0.7° in static conditions
- Dynamic Heading Accuracy: Better than 1.5° in dynamic conditions
- Rate of Turn: Better than 1° per second
- Pitch and Roll Accuracy: Better than 1°
- Sensor Technology: 3-axis magnetometer, 3-axis rate gyro, and 3-axis accelerometer
- Network Compatibility: Certified for NMEA 2000 networks and compatible with NMEA 0183 interfaces
- Data Output: NMEA 0183 and NMEA 2000 data output simultaneously
- Calibration: Factory calibrated with automatic deviation calibration capability
- Environmental Protection: IP67 waterproof enclosure
- Included Accessories: 10 m cable and connector
