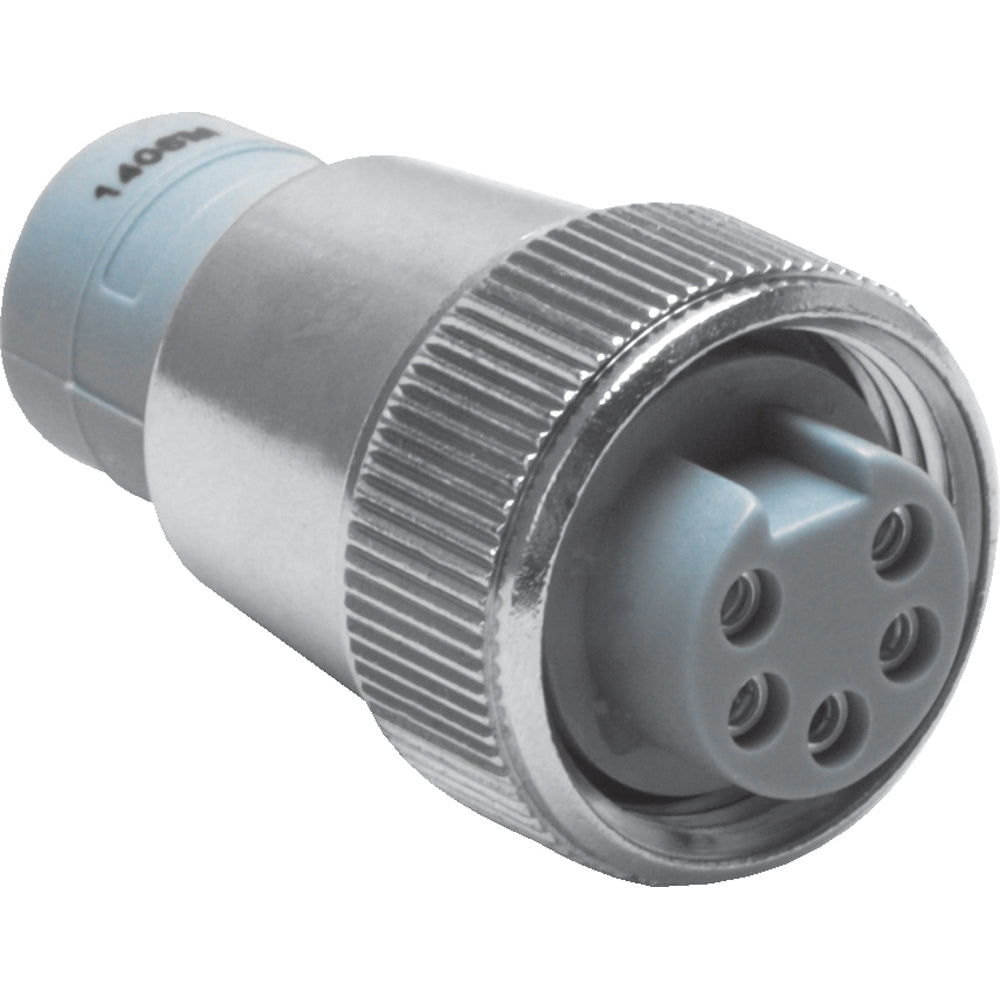

Maretron TR-NF Mini Termination Resistor for NMEA 2000 Networks

Termination Resistors are required on a NMEA 2000 network and are placed at each end of a network trunk cable. Like the double-ended cordsets, the termination resistors are waterproof and continue to function even while submerged in the bilge.

Diagnostic versions indicate correct polarity at a glance to ensure power connections have been made properly

Screw connector for positive connnection

Termination resistors are used to terminate both ends of the trunk line

The Maretron TR-NF Mini Termination Resistor is an essential component for ensuring proper termination of NMEA 2000 network trunks. Designed for easy installation at each end of the network cable, this waterproof resistor maintains reliable performance even when submerged in bilge water, making it ideal for marine environments. Its compact size allows for flexible placement without compromising the integrity of your network setup.
The resistor features a diagnostic indicator that clearly shows correct polarity, allowing quick verification that power connections are properly established. Its screw connector provides a secure positive connection, ensuring stable and consistent signal transmission across your marine network. Proper termination with these resistors is critical to minimize signal reflections and maintain data integrity, especially in complex or long cable runs.
Crafted by Maretron, the TR-NF model combines durability with ease of use. Whether you're installing a new NMEA 2000 network or maintaining an existing one, these resistors are designed to withstand harsh marine conditions while providing dependable performance. Their waterproof design and straightforward installation process help simplify your setup, reducing downtime and troubleshooting efforts. With the right termination components like the Maretron TR-NF, your marine electronics system will operate efficiently and reliably, supporting navigation, communication, and data transfer tasks with confidence.

Features:

• Waterproof design ensures reliable operation even when submerged

• Diagnostic indicator for quick polarity verification

• Secure screw connector for positive connection

• Essential for terminating both ends of NMEA 2000 trunk lines

• Compact size ideal for tight spaces and marine environments
