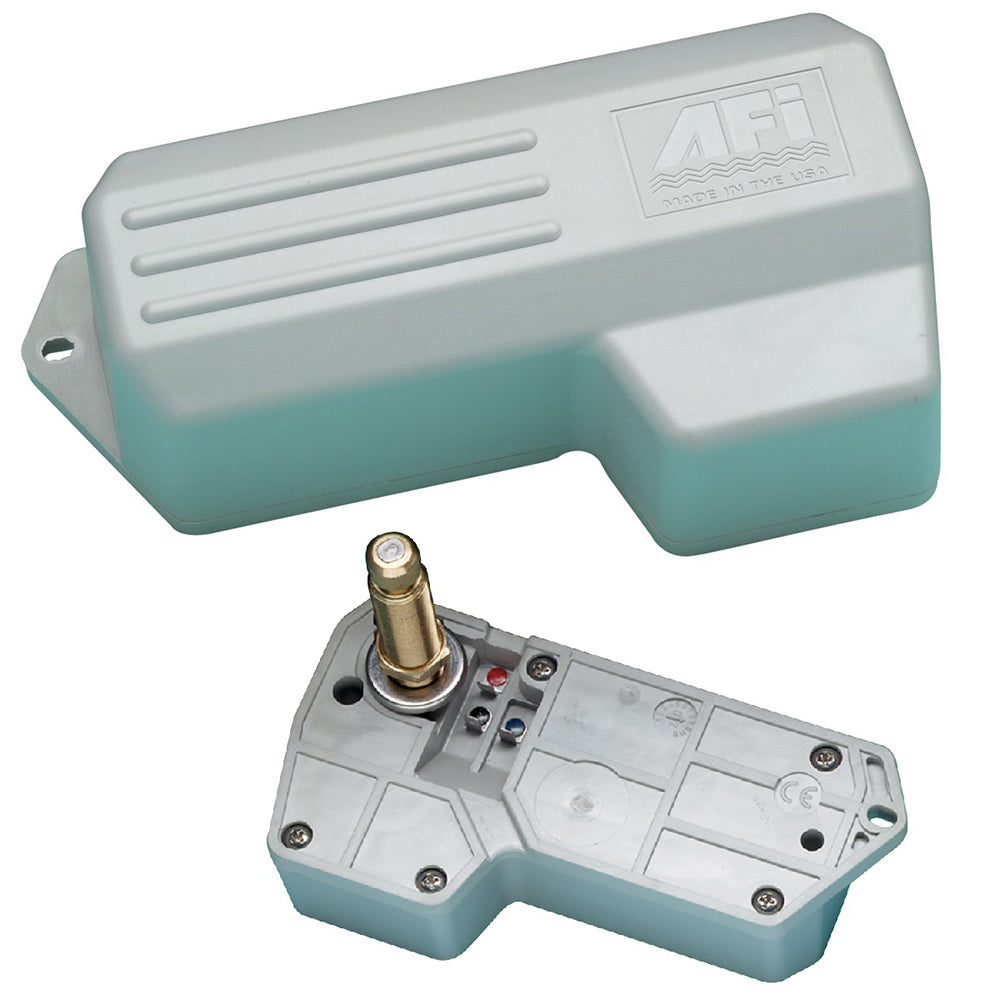

Marinco 1000 Series 12V Waterproof Wiper Motor with 2.5" Shaft and 65 Degree Sweep

Wiper Motor, 1000 Series, 12V, 2.5" Shaft, 65 Sweep

The 1000 Waterproof Wiper Motor has a fully sealed waterproof housing made of UV stabilized, high-temperature, high-impact thermoplastic. It powers 18" Deluxe arm and 18" Deluxe blade combination at sweep sets of 80 degree or less or 16" Deluxe arm and 16" Deluxe blade combinations at a sweep set of 110 degree.

Features:

• Factory pre-set sweep of 80 degree or 110 degree adjustable to 50 degree, 65 degree, 80 degree or 110 degree
• 0.625" diameter shaft (16 mm)
• 12 volt heavy-duty motor with anti-rotation drive shaft
• Knurled drive shaft and solid brass arm drive nut
• Coast to park with adjustable right or left self parking
• Retail version includes 5 amp fuse and holder (on/off switch not included)
• RF shielded circuitry
• Weight: 1.75 lbs
• Available in two shaft lengths: 1.5" and 2.5" (includes .5" length of knurled arm fitting)
• Measures approximately 6.625" L x 3.375"W x 2" D
• Stall torque: 55 in-lbs (63 kgf/cm; 6.2 Nm)
• Stall current: 9.8-10.0 amps
• No load current: 0.8-1.2 amps

The Marinco 1000 Series waterproof wiper motor is engineered for durability and reliable performance in demanding environments. Constructed with a fully sealed housing made from UV stabilized, high-temperature, high-impact thermoplastic, this motor resists water ingress and harsh weather conditions. It is designed to power various wiper arm and blade configurations, including 18" Deluxe arm and blade sets at sweep angles of 80 degrees or less, as well as 16" Deluxe combinations at a 110-degree sweep. This versatility makes it suitable for a wide range of applications on boats, RVs, and specialty vehicles.

The motor features a factory preset sweep of 80 degrees, which can be adjusted to 50, 65, 80, or 110 degrees to accommodate different windshield or window sizes. Its 0.625" (16 mm) diameter shaft, combined with a heavy-duty 12V motor and anti-rotation drive shaft, ensures steady operation under load. The knurled drive shaft and solid brass arm drive nut provide secure attachment and smooth movement, while the coast-to-park function with adjustable right or left self-parking enhances user convenience. The design includes RF-shielded circuitry to prevent interference, making it suitable for sensitive electronic environments.

Measuring approximately 6.625 inches long, 3.375 inches wide, and 2 inches deep, this motor weighs about 1.75 pounds, making it compact yet powerful. The stall torque is rated at 55 in-lbs, with a stall current of 9.8 to 10 amps, ensuring strong performance during operation. The no-load current ranges from 0.8 to 1.2 amps, contributing to energy efficiency. Available in two shaft lengths—1.5 inches and 2.5 inches—each includes a 0.5-inch knurled arm fitting for easy installation. This versatile and durable wiper motor is an ideal choice for demanding applications requiring reliable, waterproof operation.
Note: The retail version includes a 5 amp fuse and holder, but an on/off switch is not included.

Features:

• Factory pre-set sweep of 80 degrees, adjustable to 50, 65, 80, or 110 degrees

• 0.625-inch diameter shaft for secure attachment

• 12V heavy-duty motor with anti-rotation drive shaft for durability

• Knurled drive shaft and solid brass arm drive nut for secure connection

• Coast to park with adjustable right or left self-parking for convenience

• Includes 5 amp fuse and holder (on/off switch not included) for safety

• RF-shielded circuitry to prevent electronic interference

• Compact design measuring approximately 6.625" L x 3.375" W x 2" D

• Stall torque of 55 in-lbs for reliable operation

• Available in two shaft lengths, with included knurled arm fitting

• Built to withstand harsh weather conditions with waterproof housing
