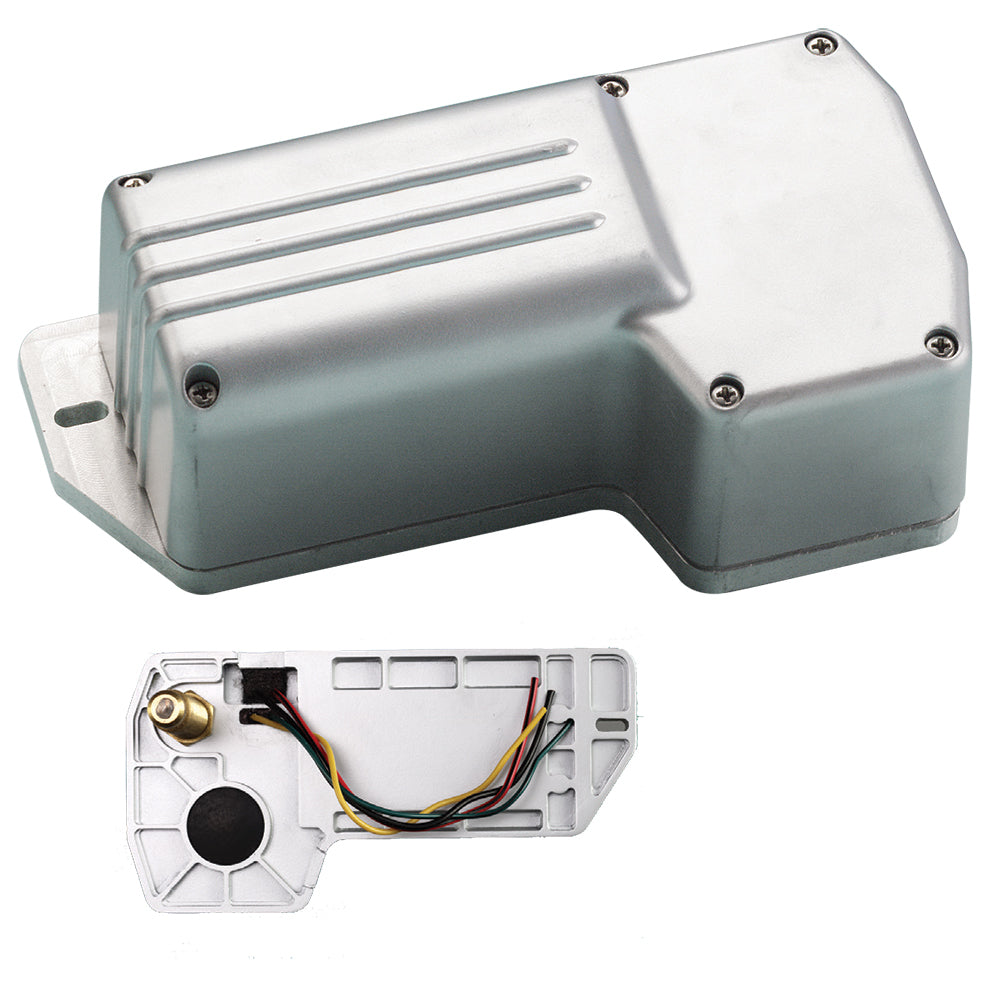

Marinco Waterproof Wiper Motor 12V with 2.5-Inch Shaft and 80-Degree Sweep

Waterproof Wiper Motor 12V - 2.5" Shaft - 80 Sweep

The 1.5 Waterproof Wiper Motor is made with a fully sealed powder coated aluminum waterproof base and housing to power a 22" Deluxe arm and 22" Deluxe blade combination or a 20" Premier arm and 20" Premier blade combination.

Features:

• Available in three shaft lengths: 1.5", 2.5" and 3.5" (includes .5" length of knurled arm fitting)
• Factory pre-set sweep angles of 80 degrees or 110 degrees, with easy adjustment to 45 degrees or 60 degree
• Chrome plated solid brass knurled drive nut with brass and stainless steel driveshaft
• Two-speed motor
• Sealed 6" wire leads, 16 AWG
• Adjustable right or left self-parking
• 0.625" diameter shaft (16 mm)
• Available in 12V and 24V models
• Coast to park
• RF shielded circuitry
• Retail version includes 5 amp fuse and holder (operating switch not included)
• Measures approximately 7.75" L x 4" W x 2.75" D
• Stall torque: 109 in-lbs (125 kgf/cm; 12.3 Nm)
• Stall current: 11.5-13.0 amps
• No load current: 0.5-1.2 amps
• Replaces AFI 2000 motor

The Marinco Waterproof Wiper Motor Part Number 71082 is designed for reliable performance in demanding environments. Constructed with a fully sealed powder-coated aluminum housing and base, this 12V motor offers exceptional water resistance, making it ideal for marine, RV, and industrial applications. It powers a 22-inch Deluxe arm and blade or a 20-inch Premier arm and blade, providing versatile options for different windshield sizes and configurations. Its durable construction ensures longevity and consistent operation even in harsh weather conditions.

This motor features a 2.5-inch diameter shaft with a 0.625-inch (16 mm) thickness, equipped with a chrome-plated solid brass knurled drive nut and a brass and stainless steel driveshaft, ensuring strength and corrosion resistance. The motor includes factory pre-set sweep angles of 80 degrees, with an easy-to-adjust feature for 45 or 60 degrees, and offers two-speed operation for optimized wiping performance. Its sealed 6-inch wire leads (16 AWG) facilitate straightforward installation and reliable electrical connections. The motor also supports adjustable right or left self-parking, allowing flexible installation options.

Designed for efficiency, the Marinco waterproof wiper motor has a stall torque of 109 in-lbs and a stall current between 11.5 and 13 amps. It operates with a coast-to-park feature, reducing wear and ensuring smooth parking at the end of each cycle. The RF-shielded circuitry enhances electromagnetic compatibility, reducing interference. The retail version includes a 5-amp fuse and holder for added electrical protection, while the operating switch must be purchased separately. Overall, this motor measures approximately 7.75 inches in length, 4 inches in width, and 2.75 inches in depth, making it a compact yet powerful component for windshield wiper systems.

Features:

• Sealed powder-coated aluminum waterproof housing for durability

• Available in three shaft lengths with knurled arm fitting

• Factory pre-set sweep angles with easy adjustment options

• Chrome-plated solid brass drive nut and stainless steel driveshaft for corrosion resistance

• Two-speed motor for optimized wiping performance

• Sealed 6-inch wire leads (16 AWG) for reliable electrical connection

• Adjustable right or left self-parking functionality

• Supports 12V and 24V power supplies

• Coast to park feature for smooth operation

• RF shielded circuitry minimizes electromagnetic interference

• Includes 5-amp fuse and holder for electrical protection

• Compact dimensions suitable for various windshield sizes

• High stall torque and efficient operation
