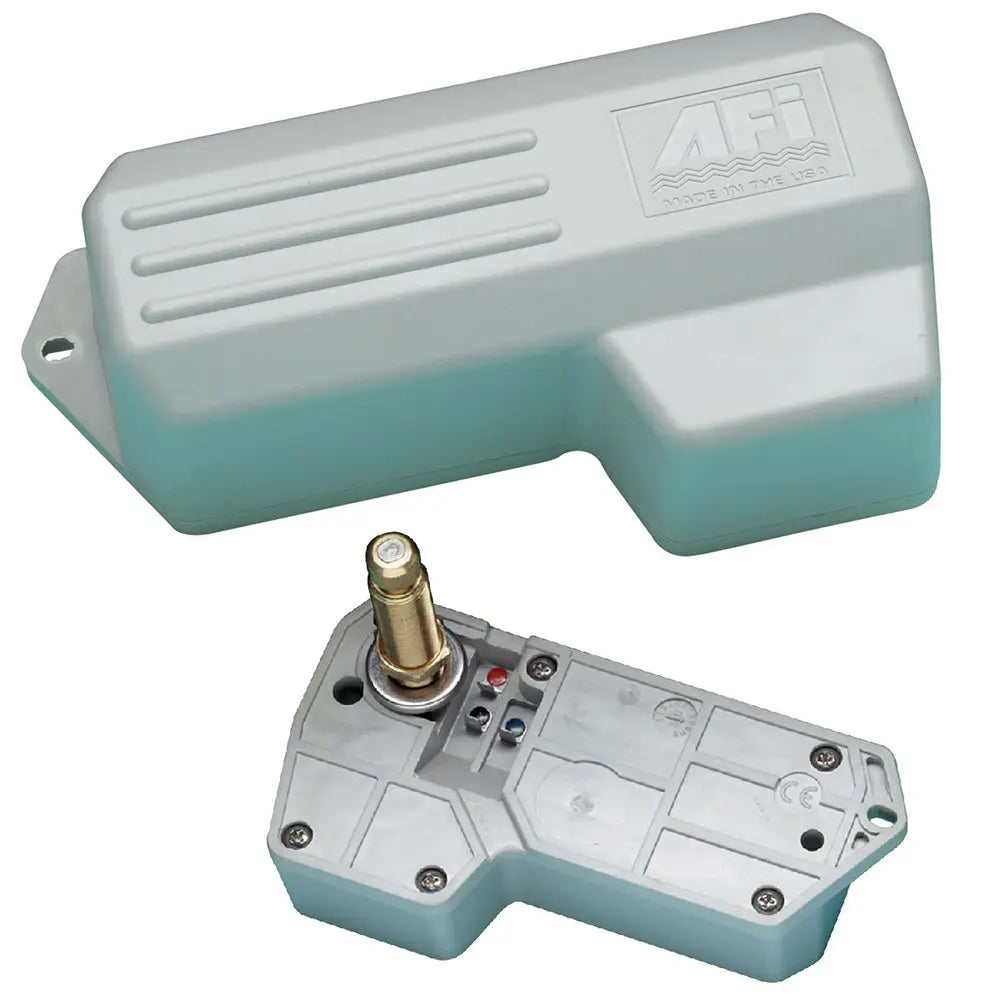

Marinco Wiper Motor 1000 Series - 12V, 1.5-inch Shaft, 80 Degree Sweep

Wiper Motor 1000 Series - 12V - 1.5" Shaft - 80

The 1000 Waterproof Wiper Motor has a fully sealed waterproof housing made of UV stabilized, high-temperature, high-impact thermoplastic. It powers 18" Deluxe arm and 18" Deluxe blade combination at sweep sets of 80 degree or less or 16" Deluxe arm and 16" Deluxe blade combinations at a sweep set of 110 degree.

Features:

• Factory pre-set sweep of 80 degree or 110 degree adjustable to 50 degree, 65 degree, 80 degree or 110 degree
• 0.625" diameter shaft (16 mm)
• 12 volt heavy-duty motor with anti-rotation drive shaft
• Knurled drive shaft and solid brass arm drive nut
• Coast to park with adjustable right or left self parking
• Retail version includes 5 amp fuse and holder (on/off switch not included)
• RF shielded circuitry
• Weight: 1.75 lbs
• Available in two shaft lengths: 1.5" and 2.5" (includes .5" length of knurled arm fitting)
• Measures approximately 6.625" L x 3.375"W x 2" D
• Stall torque: 55 in-lbs (63 kgf/cm; 6.2 Nm)
• Stall current: 9.8-10.0 amps
• No load current: 0.8-1.2 amps+

The Marinco 1000 Series Waterproof Wiper Motor is engineered for reliable performance in demanding conditions. Featuring a fully sealed housing crafted from UV stabilized, high-temperature, high-impact thermoplastic, this motor ensures durability and protection against water ingress. It is designed to power 18-inch Deluxe arm and blade combinations at sweep angles of up to 80 degrees, or 16-inch Deluxe arm and blade setups at 110 degrees, making it suitable for various applications. The motor's factory preset sweep angles of 80 or 110 degrees can be easily adjusted to 50, 65, 80, or 110 degrees, providing flexibility for different windshield sizes and user preferences. The 0.625-inch diameter shaft (16 mm) and heavy-duty 12V motor with an anti-rotation drive shaft deliver consistent torque and performance, even under demanding conditions. The knurled drive shaft and solid brass arm drive nut optimize grip and stability, ensuring smooth operation. The coast-to-park feature with adjustable self-parking direction adds convenience during operation, allowing the wiper to settle in the optimal resting position. Included with the retail version are a 5-amp fuse and holder, ensuring electrical protection, although an on/off switch is not included. The RF-shielded circuitry enhances electromagnetic compatibility, reducing interference. Weighing approximately 1.75 pounds, this motor measures around 6.625 inches long, 3.375 inches wide, and 2 inches deep, making it compact yet powerful. With a stall torque of 55 in-lbs and a stall current ranging from 9.8 to 10.0 amps, it offers robust performance for heavy-duty use. The motor's no-load current is between 0.8 and 1.2 amps, ensuring energy efficiency during normal operation. Available in two shaft lengths—1.5 inches (standard) and 2.5 inches—this wiper motor provides versatile installation options for various vehicles and equipment. Designed by Marinco, the Part Number 36180 Wiper Motor combines durability, adjustability, and ease of installation to meet the demanding needs of industrial, commercial, and marine applications.

Features:

• Factory preset sweep of 80 or 110 degrees with adjustable settings to 50, 65, 80, or 110 degrees

• 0.625-inch (16 mm) diameter shaft for secure attachment and reliable operation

• Heavy-duty 12V motor featuring an anti-rotation drive shaft for stability

• Knurled drive shaft and solid brass arm drive nut for enhanced grip

• Coast to park functionality with adjustable self-parking direction

• Includes 5-amp fuse and holder for electrical protection (on/off switch not included)

• RF-shielded circuitry to minimize electromagnetic interference

• Compact design measuring approximately 6.625 inches in length, 3.375 inches in width, and 2 inches in depth

• Stall torque of 55 in-lbs and stall current between 9.8 to 10.0 amps for reliable power

• Available in shaft lengths of 1.5 inches and 2.5 inches for versatile installation
