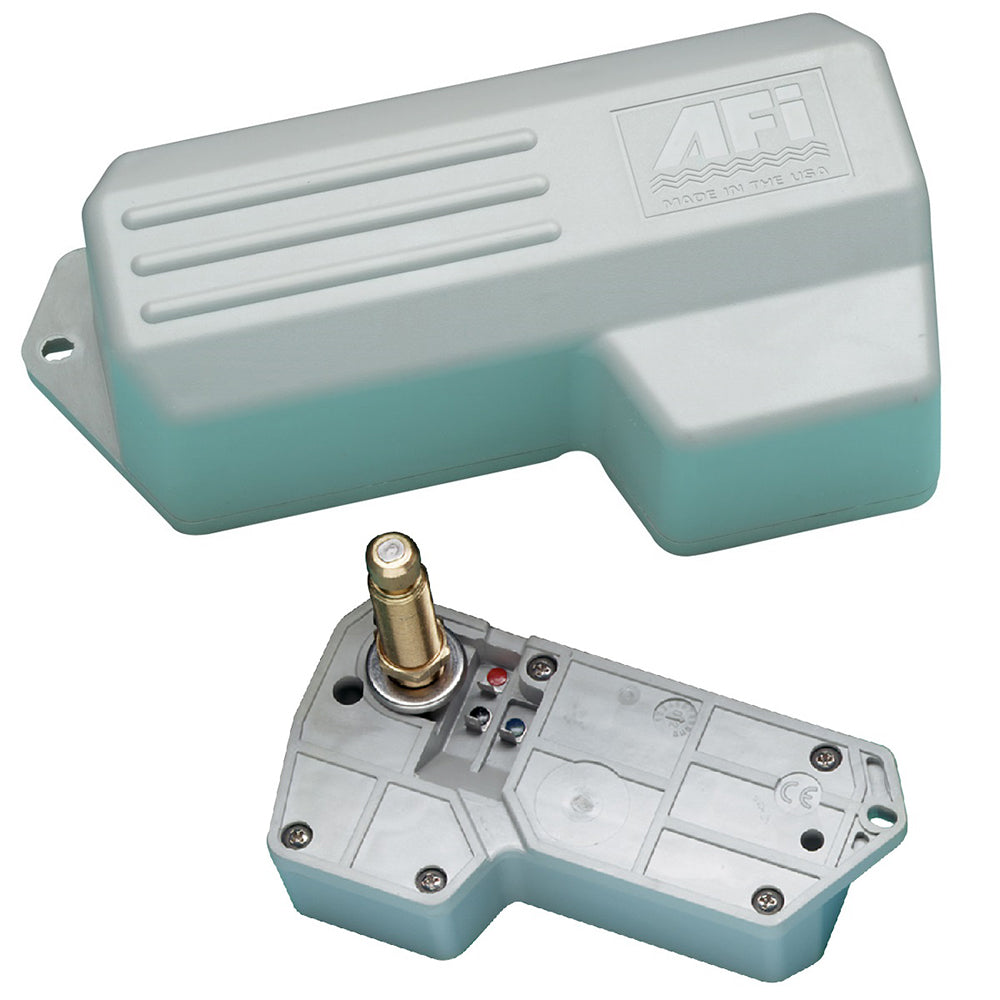

Marinco Wiper Motor 1000 Series 12V with 2.5-inch Shaft and Adjustable Sweep

Wiper Motor 1000 Series - 12V - 2.5" Shaft - 80

The 1000 Waterproof Wiper Motor has a fully sealed waterproof housing made of UV stabilized, high-temperature, high-impact thermoplastic. It powers 18" Deluxe arm and 18" Deluxe blade combination at sweep sets of 80 degree or less or 16" Deluxe arm and 16" Deluxe blade combinations at a sweep set of 110 degree.

Features:

• Factory pre-set sweep of 80 degree or 110 degree adjustable to 50 degree, 65 degree, 80 degree or 110 degree
• 0.625" diameter shaft (16 mm)
• 12 volt heavy-duty motor with anti-rotation drive shaft
• Knurled drive shaft and solid brass arm drive nut
• Coast to park with adjustable right or left self parking
• Retail version includes 5 amp fuse and holder (on/off switch not included)
• RF shielded circuitry
• Weight: 1.75 lbs
• Available in two shaft lengths: 1.5" and 2.5" (includes .5" length of knurled arm fitting)
• Measures approximately 6.625" L x 3.375"W x 2" D
• Stall torque: 55 in-lbs (63 kgf/cm; 6.2 Nm)
• Stall current: 9.8-10.0 amps
• No load current: 0.8-1.2 amps+

The Marinco 1000 Series waterproof wiper motor is designed for reliable performance in demanding environments. Featuring a fully sealed UV-stabilized, high-impact thermoplastic housing, this 12-volt motor ensures protection against water and harsh weather conditions. It is suitable for powering 18-inch deluxe arm and blade combinations with sweep angles of 80 degrees or less, as well as 16-inch arm and blade setups with up to 110 degrees of sweep, making it versatile for various applications. The motor's factory preset sweep angles are 80 and 110 degrees, but they can be adjusted to 50, 65, 80, or 110 degrees, providing flexibility to match specific operational needs.
Constructed with a 0.625-inch diameter shaft that is available in two lengths—1.5 inches and 2.5 inches—this heavy-duty motor features an anti-rotation drive shaft, a knurled drive shaft, and a solid brass arm drive nut for enhanced durability. The motor includes RF-shielded circuitry to reduce electromagnetic interference and ensures smooth operation with a coast-to-park feature that can be set to park on either the right or left side. It is equipped with a 5 amp fuse and holder for added safety, although an on/off switch is not included. The motor weighs approximately 1.75 pounds and measures about 6.625 inches in length, 3.375 inches in width, and 2 inches in depth.
Offering a stall torque of 55 in-lbs and a stall current of 9.8-10 amps, the Marinco Wiper Motor provides reliable power for demanding applications. The no-load current ranges from 0.8 to 1.2 amps, ensuring efficient operation. Its RF-shielded circuitry and robust construction make it suitable for marine, industrial, and heavy-duty vehicular uses, where dependable wiper performance is essential.

Features:

• Factory preset sweep angles of 80 or 110 degrees, adjustable to 50, 65, 80, or 110 degrees

• Constructed with a durable 0.625-inch diameter shaft, available in 1.5-inch or 2.5-inch lengths

• 12V heavy-duty motor featuring anti-rotation drive shaft for stability

• Knurled drive shaft and solid brass arm drive nut for long-lasting performance

• Includes coast-to-park feature with adjustable right or left self-parking

• Retail version equipped with 5 amp fuse and holder for added safety

• RF-shielded circuitry minimizes electromagnetic interference

• Compact design measuring approximately 6.625" L x 3.375" W x 2" D

• High stall torque of 55 in-lbs suitable for demanding applications

• Operational stall current of 9.8-10 amps with no load current between 0.8 and 1.2 amps
